Value View via Display

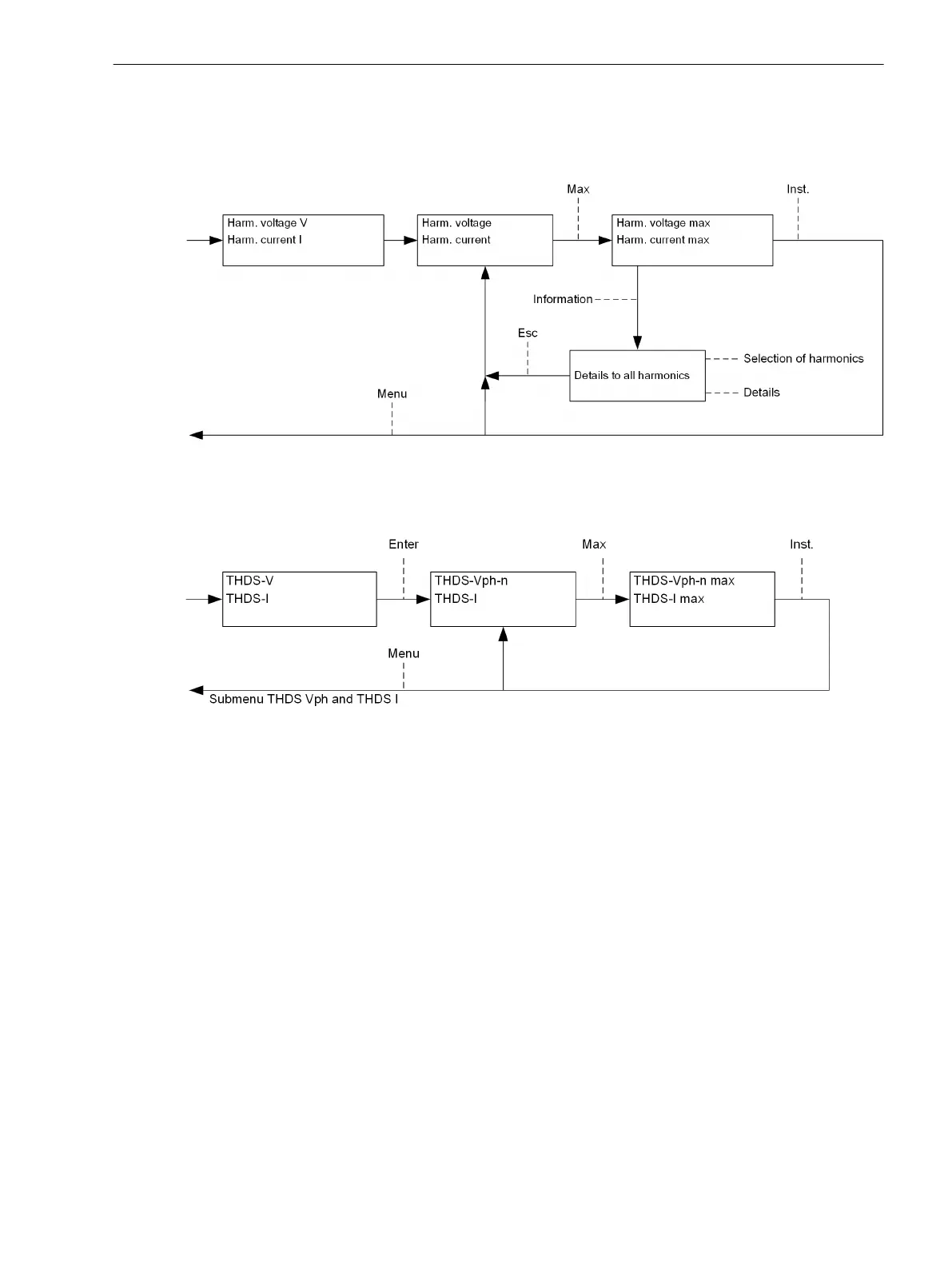

Submenu Voltage Harmonics V and Current Harmonics I (Bar Charts)
[dw_submenu_evaluation_harmonics_Q100, 1, en_US]
Figure 6-3 Submenu Harmonic Voltage and Harmonic Current
Submenu THDS
[dw_submenu_THDS2_Q100, 1, en_US]
Figure 6-4 Submenu THDS V and THDS I
6.1.3
Power Quality
6.1 Harmonics
SICAM, SICAM P850/P855 7KG85X, Manual 119
E50417-H1040-C482-A9, Edition 03.2022
