Siemens SICAM 7KG85X User Manual

Binary Outputs
Function Description
The device has 2 binary outputs.
Binary outputs are issued as indications.
4 Operating modes are possible:
•
Persistent
•
Persistent with fail safe
•
Pulse
•
Pulse with retrigger
Persistent
The binary output has the status ON or OFF. If the indication becomes invalid, the binary output continues to
maintain its current status.

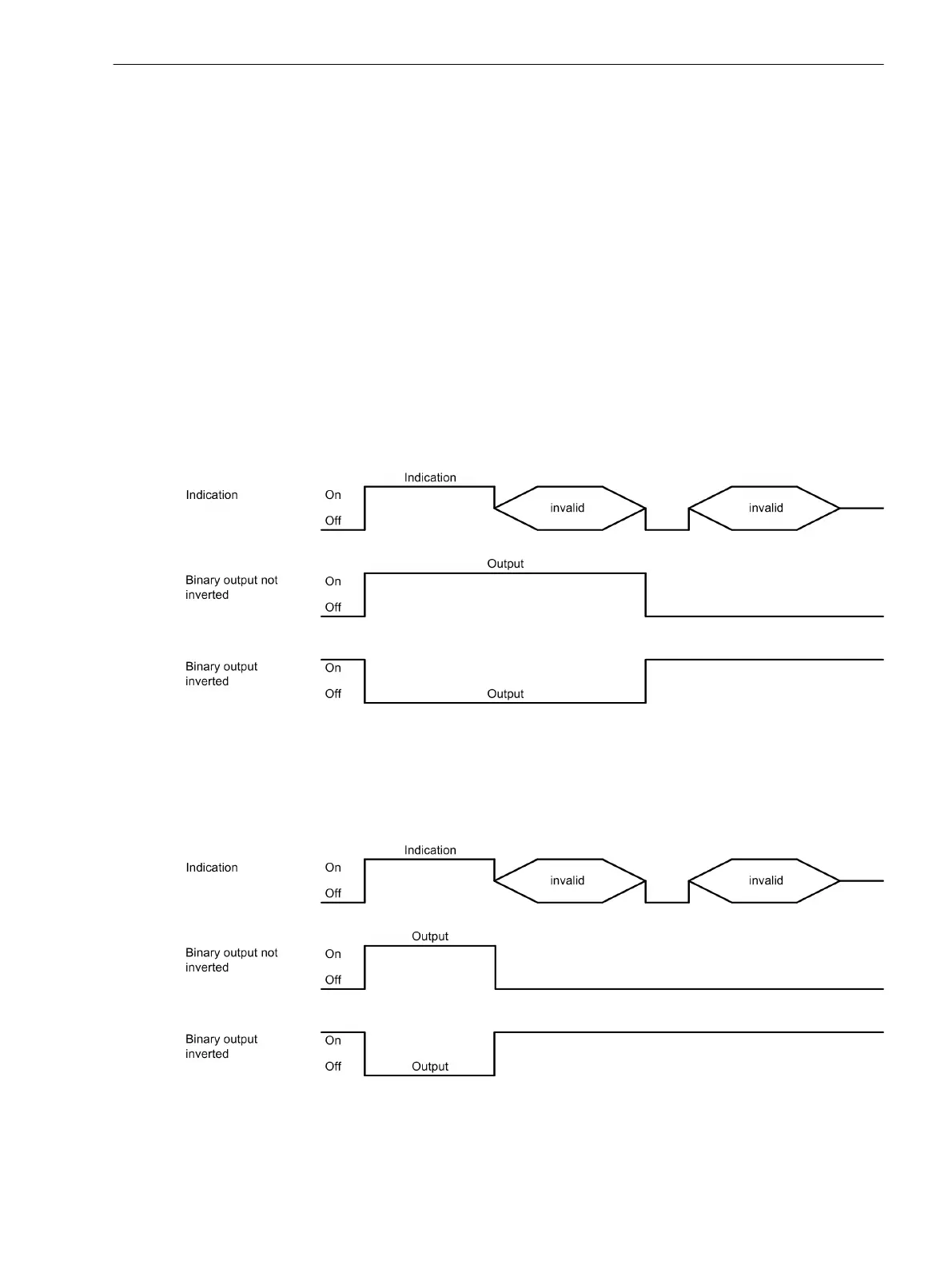

[dw_persistent, 1, en_US]
Figure 3-1 Persistent
Persistent with Fail Safe
If the indication becomes invalid, the binary output switches into the OFF state if
Source inverted = no, or it
switches into the ON state if Source inverted = yes.
[dw_persistent-with-fail-save, 1, en_US]
Figure 3-2 Persistent with Fail Safe
3.2
3.2.1
Process Connections
3.2 Binary Outputs
SICAM, SICAM P850/P855 7KG85X, Manual 85
E50417-H1040-C482-A9, Edition 03.2022

Siemens SICAM 7KG85X Specifications

General

Frequency	50/60 Hz
Binary inputs	8
Binary outputs	4
Frequency Range	45 - 65 Hz
Communication Interface	Ethernet, RS485
Protection Class	IP20
Protocols	IEC 61850, DNP3, Modbus
Measurement Category	CAT III
Current Input	5A
