LEDs
Function Description
Behavior of the LEDs

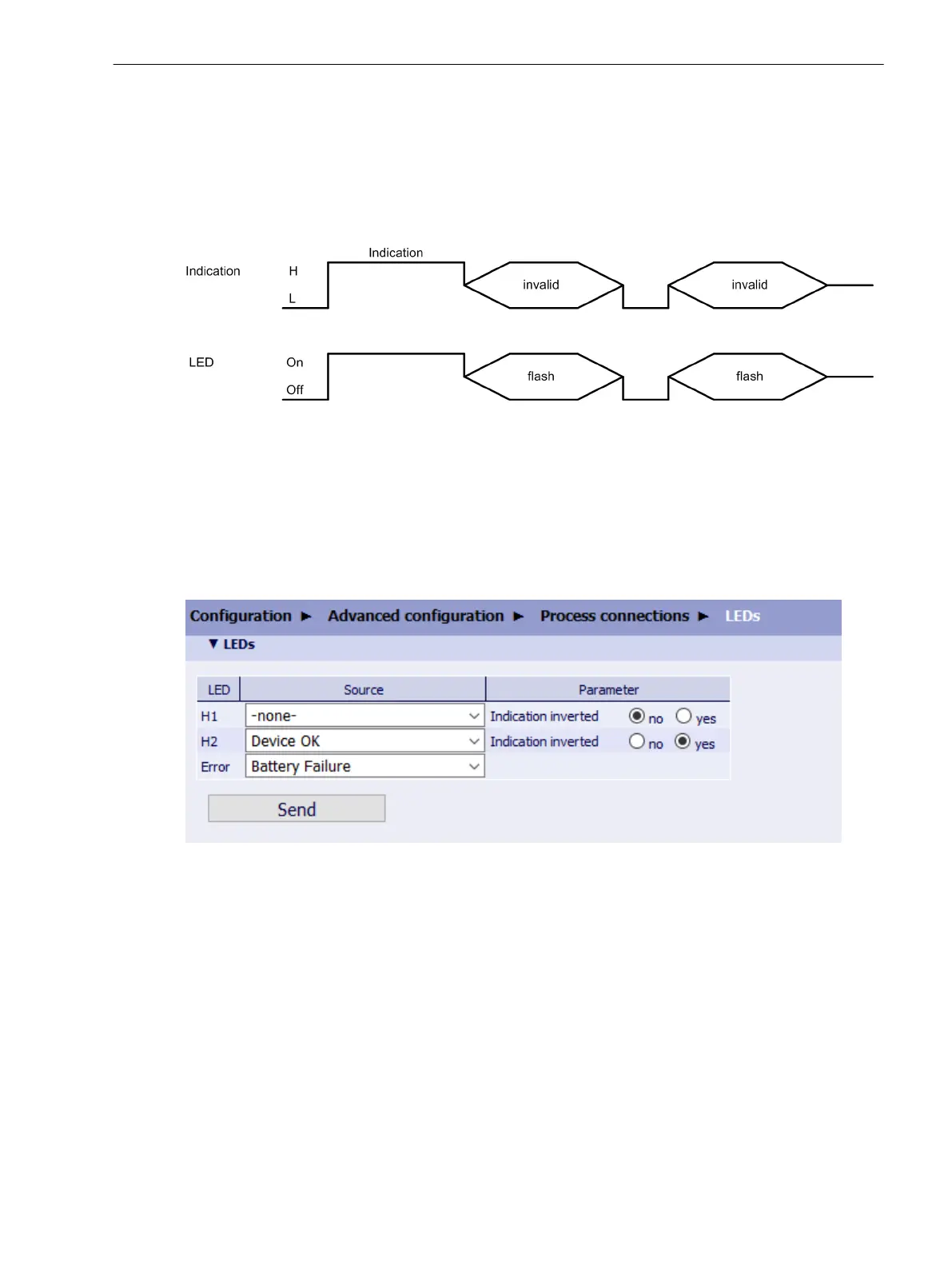

[dw_LED-output, 1, en_US]
Figure 3-8 Behavior of the LEDs
Configuration via Web Pages
Configuration of the LEDs
To change the LED settings in the Configuration tab, proceed as follows:
•
In the navigation window, click LEDs.
[sc_q100_LED_config, 2, en_US]
Figure 3-9 Configuration Tab, LEDs
•
Configure the respective parameters according to the following table.
3.3
3.3.1
3.3.2
Process Connections
3.3 LEDs
SICAM, SICAM P850/P855 7KG85X, Manual 89
E50417-H1040-C482-A9, Edition 03.2022
