Fail-safe operation of KP8F and KP32F
7.5 Response times of the PROFIsafe devices
KP8, KP8F, KP32F
Operating Instructions, 11/2011, A5E03284305-02
101

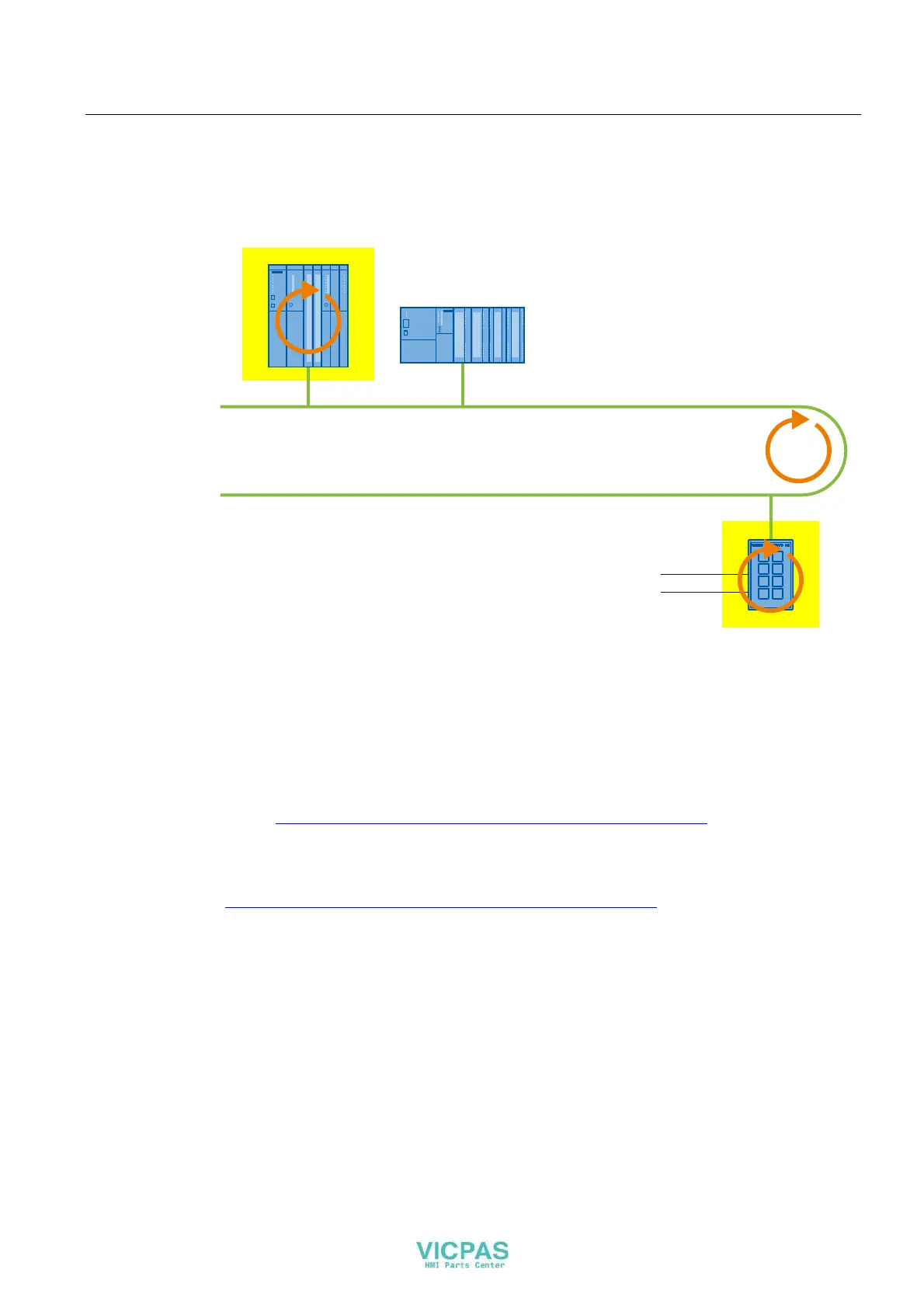

The following image shows where response times can be expected.
6,0$7,&6)31'3
DV352),1(7,2FRQWUROOHU
(7b6VWDWLRQ
ZLWK
,0
31
.3)DV
352),1(7,2'HYLFH
352),1(7
IDLO
VDIHVHQVRU
IDLOVDIHVHQVRU
5HVSRQVHF\FOH
Calculating response time
Information about the response times of the IO controller can be found in the manual of the
IO controller used.
The "S7 Distributed Safety" add-on package contains an Excel file "s7fcotia.xls" for
calculating maximum response times. You can find the current version of this table on the
Internet at the following address:
"s7coti (http://support.automation.siemens.com/WW/view/en/19138505
)",
Entry -ID 19138505
Detailed information for the calculation of the response time of the F-system can be found in
the "Safety Technology in SIMATIC S7" system manual
(http://support.automation.siemens.
com
/WW/view/en/12490443)".
