Mounting and connecting the HMI device
4.6 Securing the cables
KP8, KP8F, KP32F
64 Operating Instructions, 11/2011, A5E03284305-02
4.6 Securing the cables

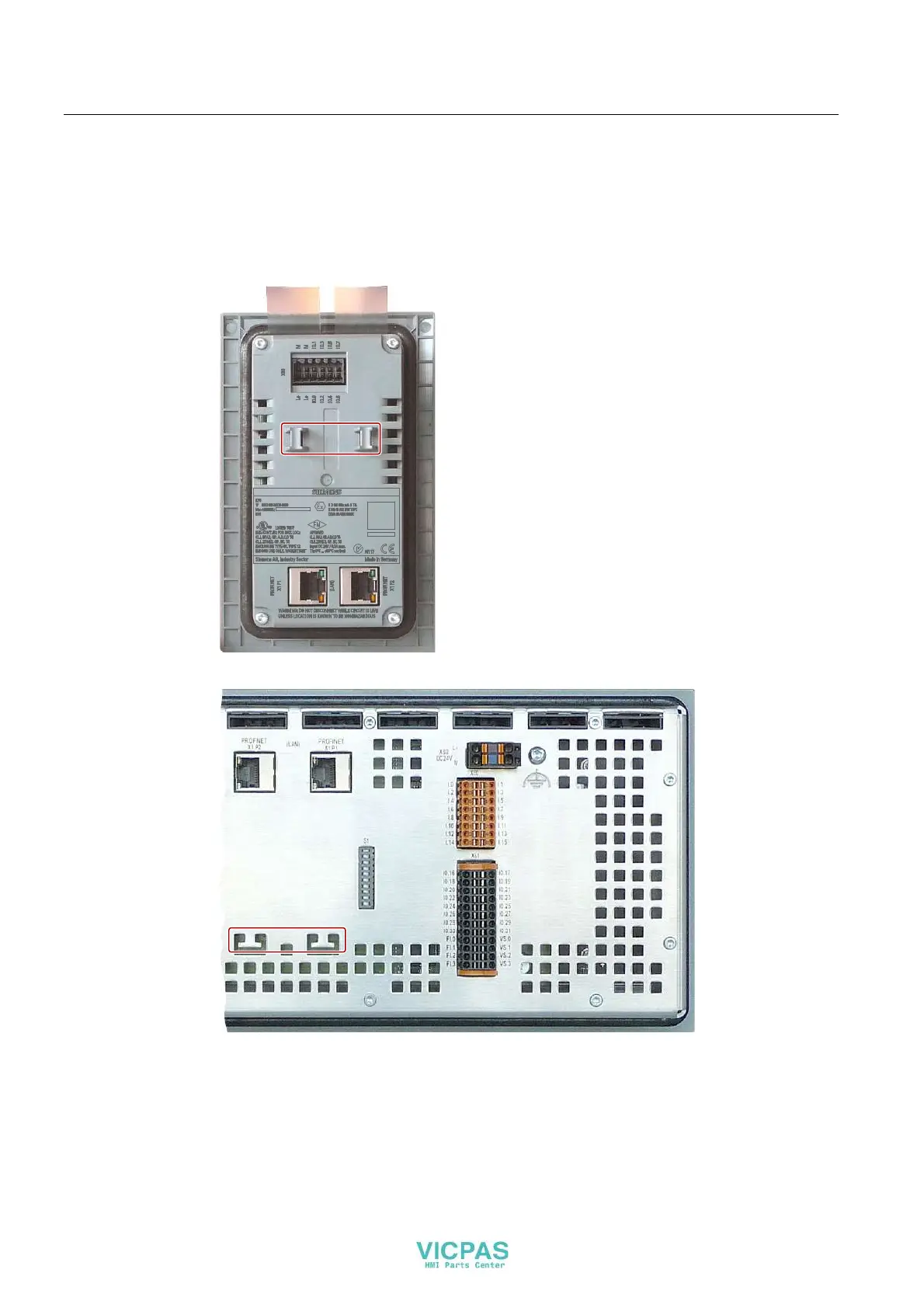

After the power-on test, use cable ties to secure the connected cables to the marked fixing
elements to ensure strain relief.
● Strain relief on the KP8 and KP8F
● Strain relief on the KP32F
