Assigning parameters for the HMI device in STEP 7
6.4 KP32F
KP8, KP8F, KP32F
84 Operating Instructions, 11/2011, A5E03284305-02
6.4 KP32F
6.4.1 Assign parameters for KP32F
The SIMATIC Manager and HW Config are opened. A project was created with a KP32F.

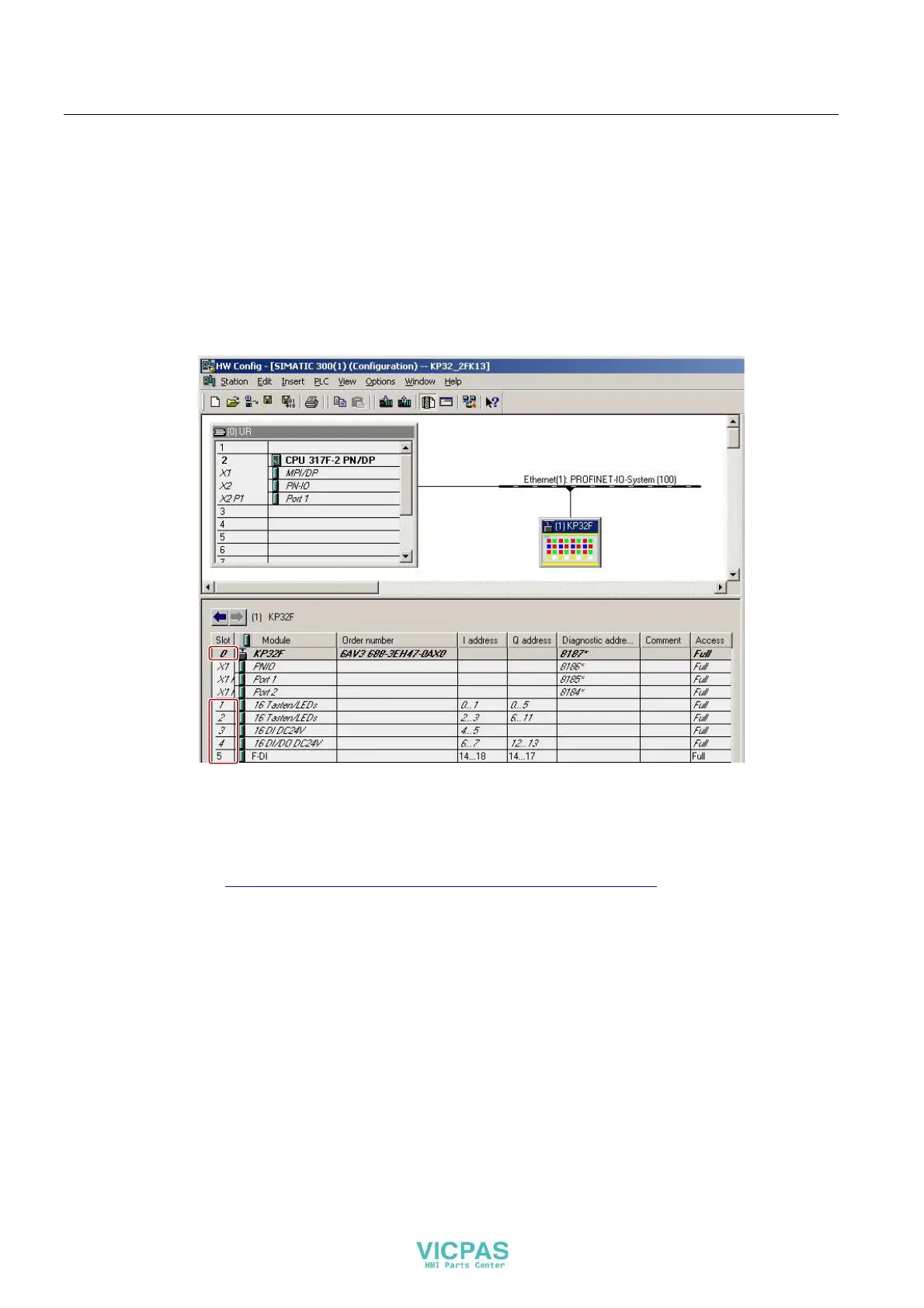

In the following image, the slots that require parameter assignment are labeled in red.
Parameters for following slots are entered in the HW Config for the KP32F:
● Slot 0 – device identification
You can find additional information on device name and device number in the manual
"SIMATIC PROFINET system description
(http://support.automation.siemens.com
/WW/view/en/19292127
)".
● Slot 1 - address area of the keys and LEDs 0 to 15 and light test on this slot
● Slot 2 - address area of the keys and LEDs 16 to 31
● Slot 3 - digital inputs
● Slot 4 - digital inputs/outputs
● Slot 5 - fail-safe digital inputs
The fail-safe slot is empty by default. Drag-and-drop a fail-safe input to this slot from the
hardware catalog.
