Assigning parameters for the HMI device in STEP 7
6.3 KP8 and KP8F
KP8, KP8F, KP32F
Operating Instructions, 11/2011, A5E03284305-02
81
4. Press "Connect".
The Shared Device connection is established. The coupled device is displayed in the
"Shared Device" group. See red marking.
5. If you want to decouple a Shared Device connection, select the device in question.
6. Click the "Disconnect" button.
The Shared Device connection is terminated. The decoupled device is displayed in the
"Shared Device" group.
7. If there are several Shared Device connections, you must select a device for full access.

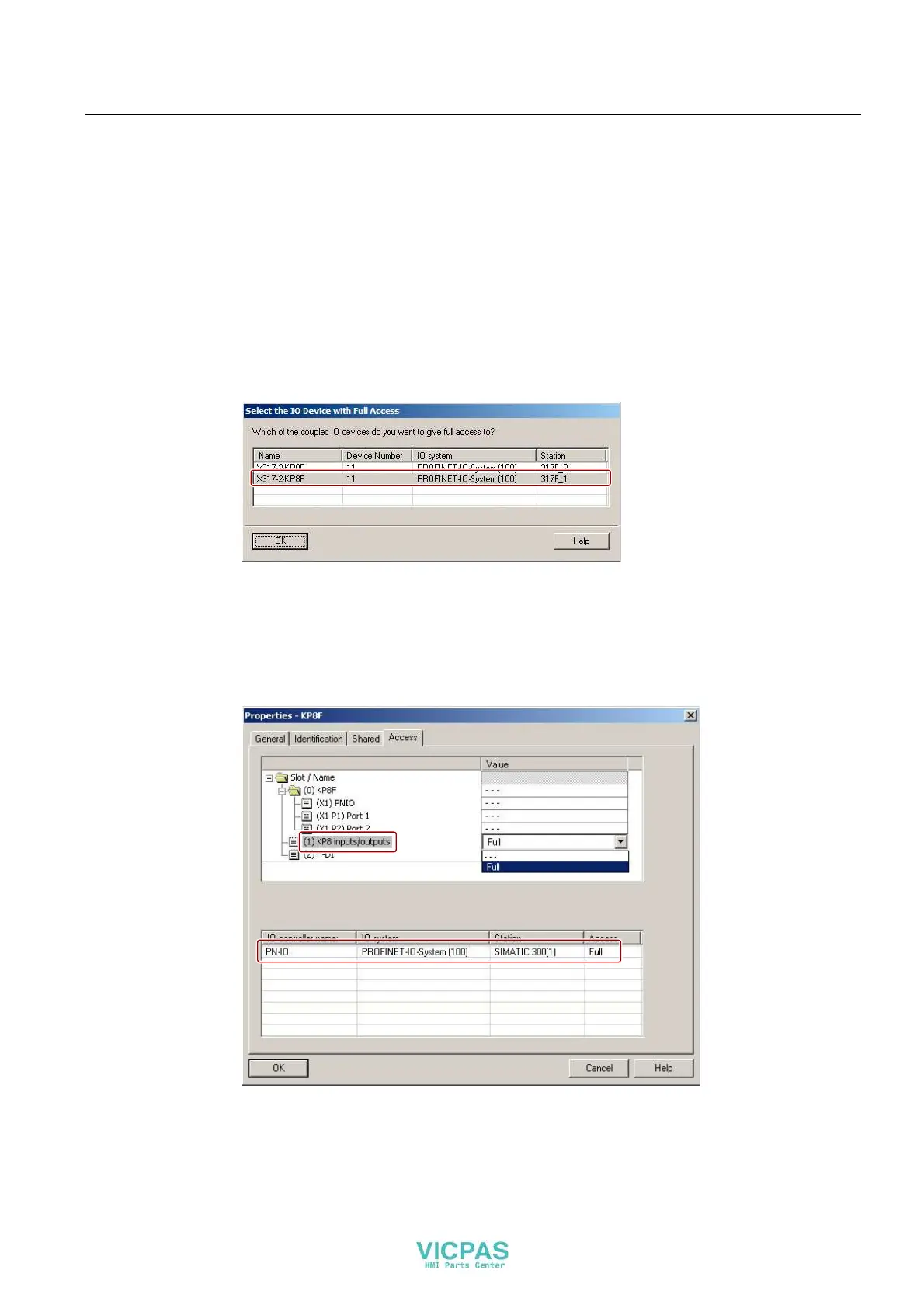

The following dialog appears:
8. Select the required device for the access type "Full".
9. Click "OK".
The entry is saved. The dialog box closes.
10. Select the "Access" tab.
The following dialog appears:
