8 Example — OPC Application for PROFIBUS-DP
104
Commissioning PC Stations - Manual and Quick Start
Release 5/2005
C79000-G8976-C156-07
Activity
3.

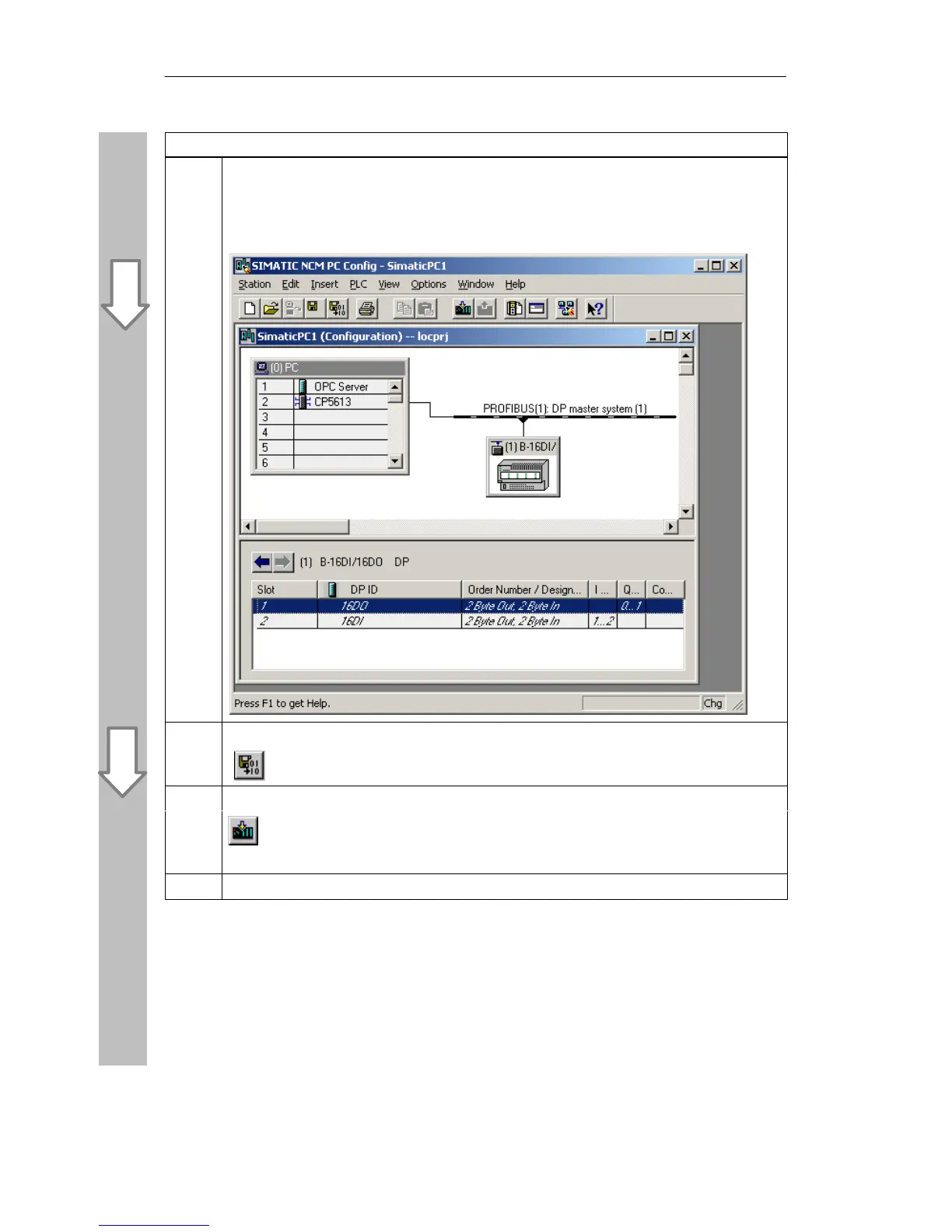

Holding down the left mouse button, drag the DP slave to the DP master system until the
mouse pointer touches the DP master system (shown as an alternating dark and light shaded
line in the display). Release the mouse button when the “+” symbol appears attached to the
mouse pointer. Confirm the “Properties - PROFIBUS Interface” dialog with “OK”.
Result: The DP slave is then included in the project.
4.
Save and compile the project engineering data by clicking the button below:
5.
Click the button below to download the project engineering configuration:
Result: The hardware configuration of the station is downloaded to the automation system.
6.
Close hardware configuration.
