16.3.5 Setting the PROFIBUS DP Slave
To be able to use the DP slave submodule of the CP 5614/CP 5614 FO/CP 5614
A2 with OPC, configure the submodule as described below. It is not possible to
configure these settings in the project engineering data NCM PC / STEP 7.
The slave module configuration is effective only for use with the OPC interface.

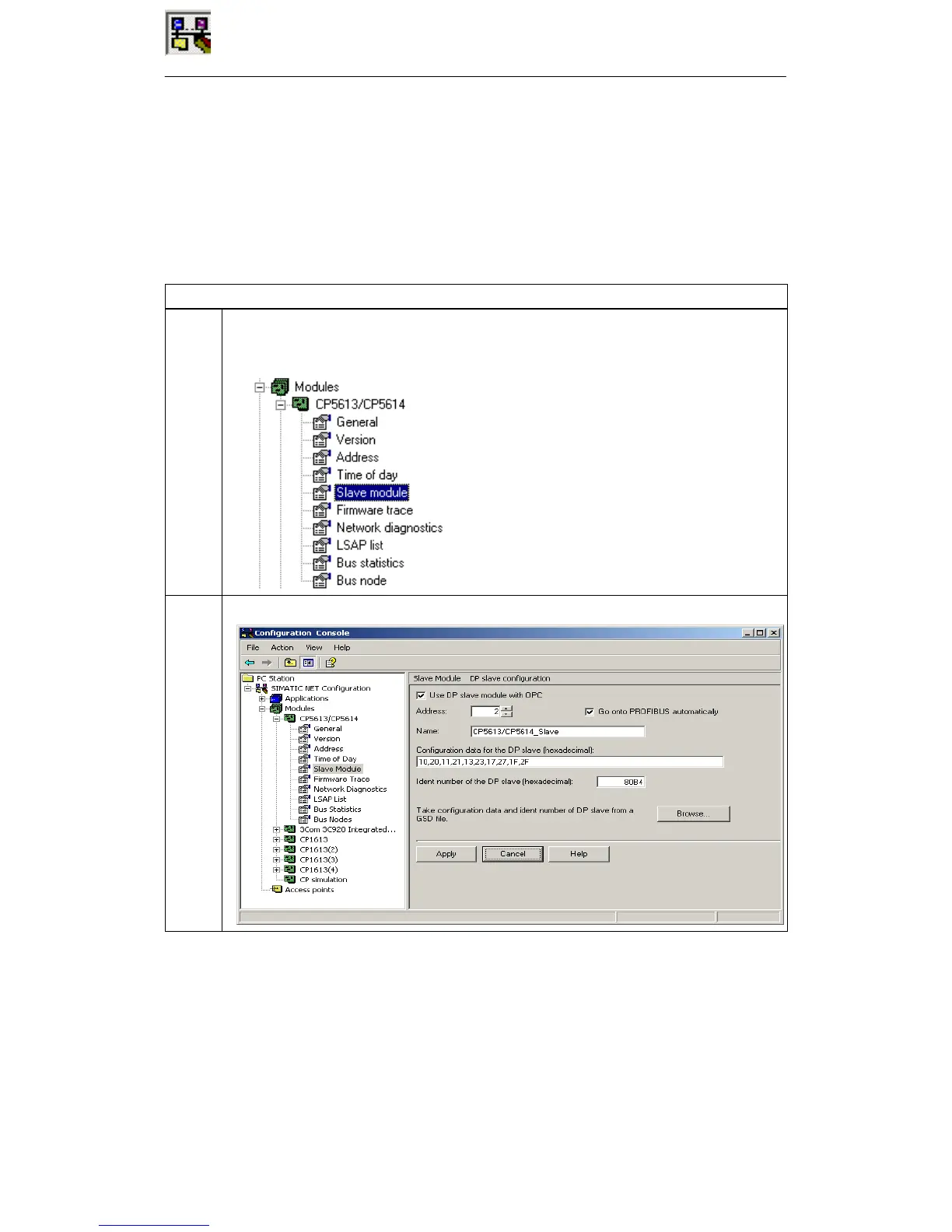

Activity
1 Open the “Modules” folder in the navigation area.
Select the required module of the type “CP 5613/CP 5614 or CP5614A2”.
Click on the “Slave module” property.
2 Activate the “Use DP slave module with OPC” check box.
