8 Example — OPC Application for PROFIBUS-DP
94
Commissioning PC Stations - Manual and Quick Start
Release 5/2005
C79000-G8976-C156-07
8 Example — OPC Application for
PROFIBUS-DP
8.1 Overview
Explanation of the Configuration Example
This example illustrates how to connect an ET 200 B DP slave with a CP 5613 in a
PC station over PROFIBUS DP.
In the configuration example presented here, typical communication partners are
connected to PROFIBUS and can be reached over the OPC server.

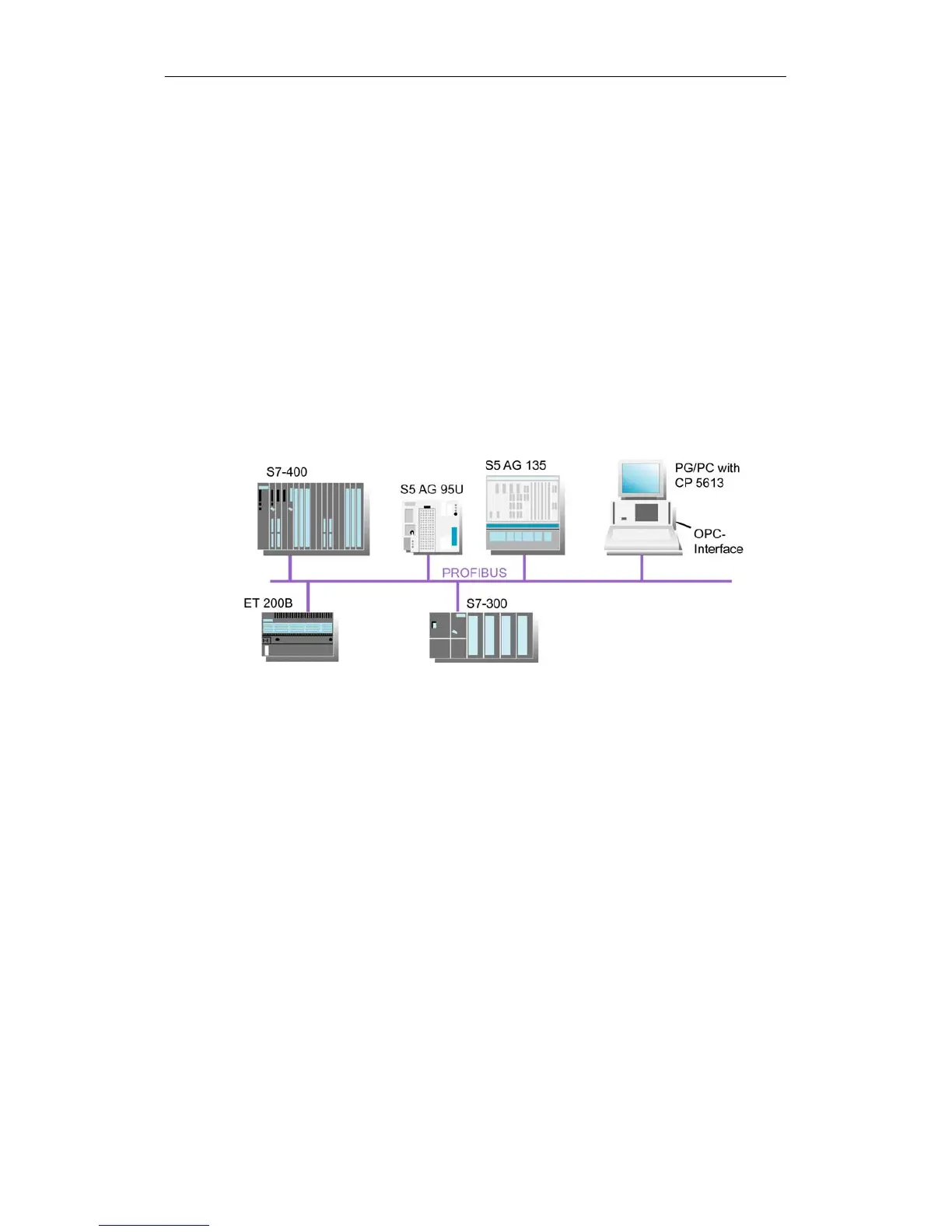

Example of a PROFIBUS Configuration
Communication takes place between two devices or modules. Communication with
an ET 200 B is described in detail.
You will see which tools are used for configuration and project engineering of a PC
station and a DP slave. You will also see how to use the OPC Scout program for
communication with the OPC Server.
