3 Getting Started “PG Operation”
42
Commissioning PC Stations - Manual and Quick Start
Release 5/2005
C79000-G8976-C156-07
3.1 Configuration for PG Operation - Programming Device
(PG/PC)

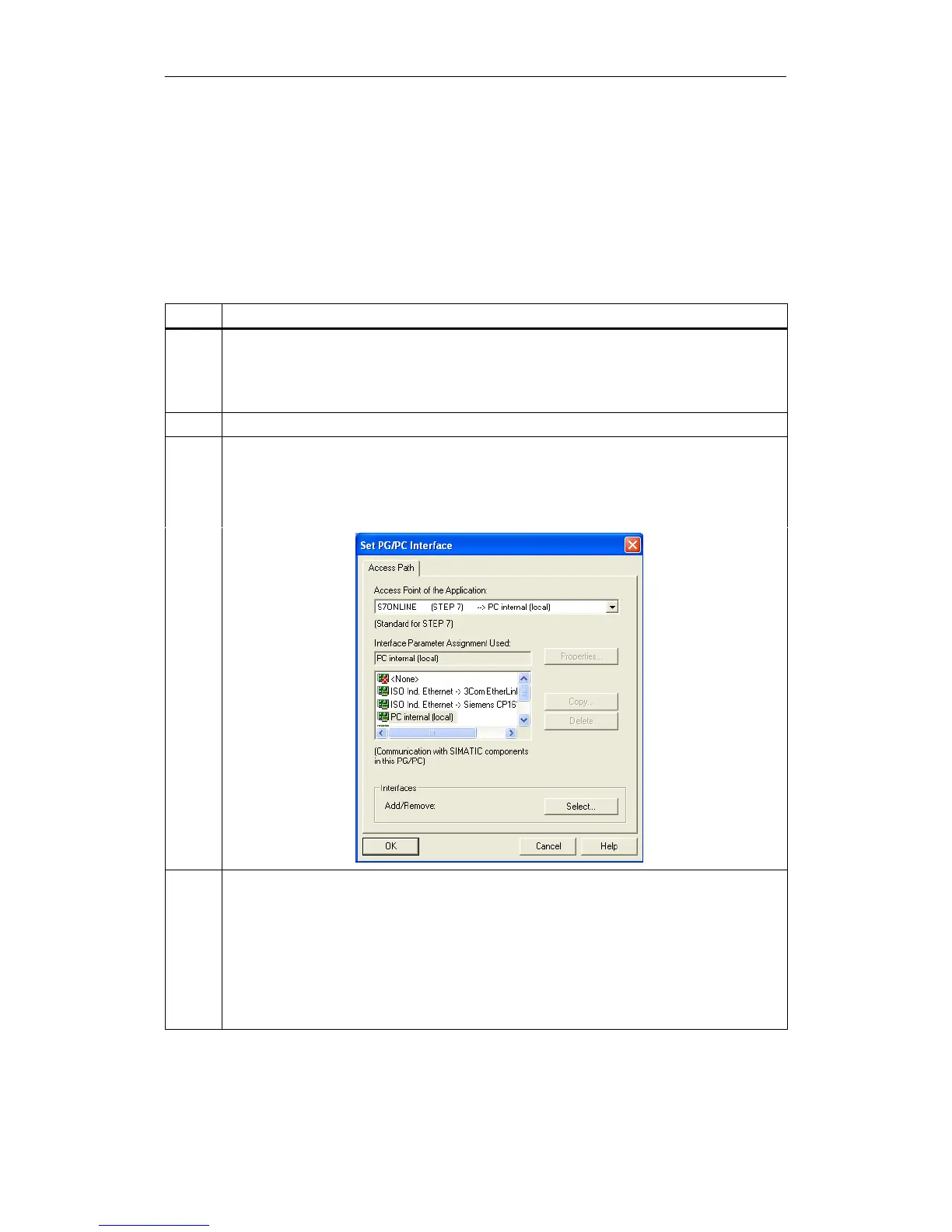

You configure a module using the “Set PG/PC Interface“ tool.
Follow the steps below:
How to Configure for PG Operation
1. You can start the configuration program from the Windows taskbar:
Start
"
SIMATIC
"
SIMATIC NET
"
Set PG/PC Interface.
As an alternative you can also start it from the Control Panel:
Start
"
Settings
"
Control Panel
"
Set PG/PC Interface.
2. Assign the access point for your application to the module.
2.1 To make your module usable for STEP 7, follow the steps outlined below in the “Set PG/PC
Interface” configuration program:
Select the access point “S7ONLINE” in the “Access Point of the Application” list box. The
current assignment then appears at the bottom in the list box “Interface Parameter Assignment
Used”.
2.2 Select the required entry in the “Interface Parameter Assignment Used” list box. Some modules
offer alternatives, for example the CP 1613 as follows:
S If you use the TCP protocol - “CP1613(RFC1006)”,
S if you use the ISO protocol - ”CP1613(ISO)”
or CP 5613/CP 5614 as follows:
S Normal situation - “CP5613_5614(PROFIBUS)”,
S on an MPI chain - “CP5613_5614(MPI)”.
For further details on setting access points, refer to the section ”Tools”.
