9 Example — Unspecified Connection from a PC Application
113
Commissioning PC Stations - Manual and Quick Start
Release 5/2005
C79000-G8976-C156-07
Procedure for “Initial Configuration”
3.

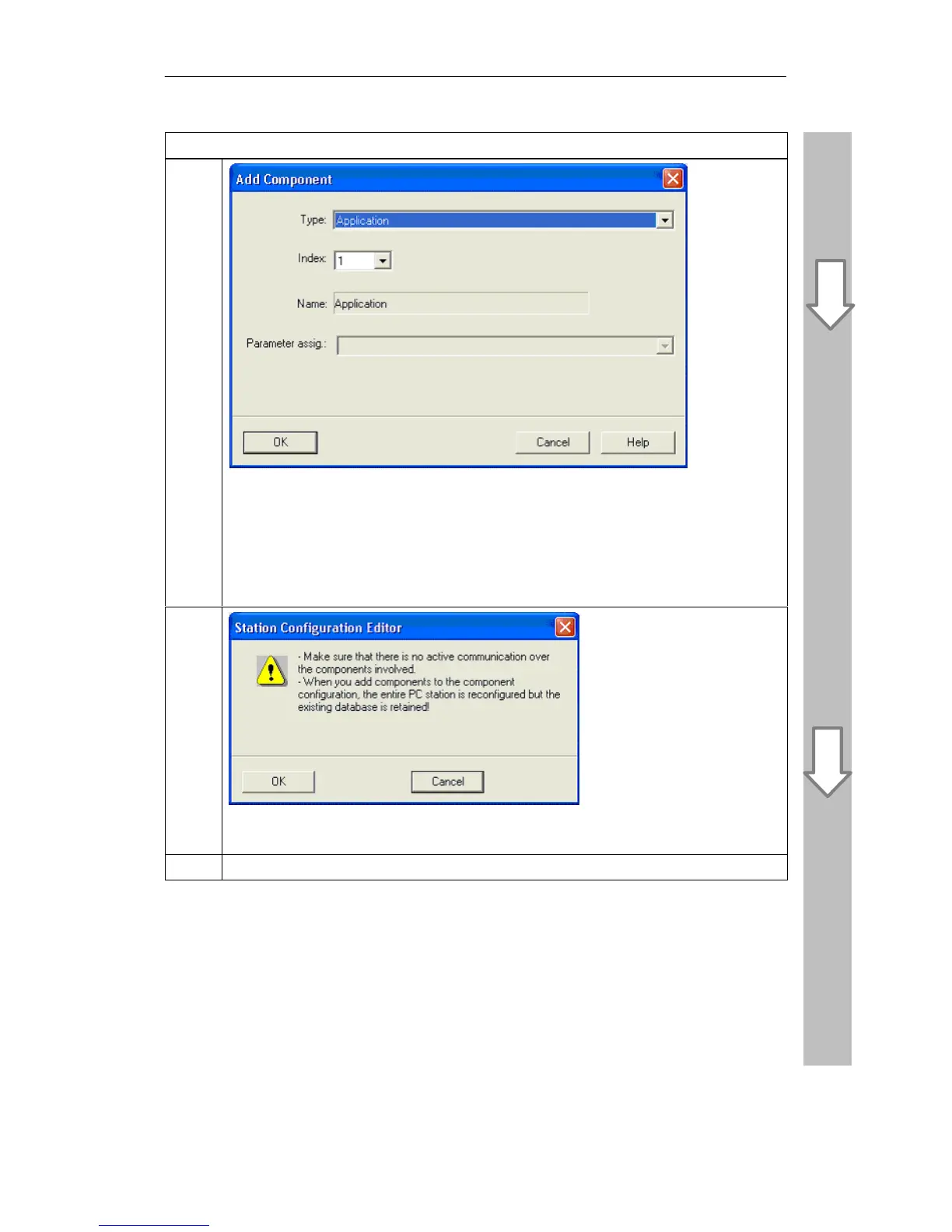

Select the application in the “Type:” field and the slot in the “Index:” field.
The name of the application is the VFD name in your in your C application (assigned in STEP
7; see Section 9.4.2). If you have several VFDs, you must also include several applications and
assign the corresponding VFD names.
If the selected index causes a conflict with the slot number configured in STEP 7 HW Config,
the configuration cannot be downloaded.
Confirm the dialog with “OK”.
4.
Before the application can be adopted, the PC station must be restarted.
Confirm the dialog with “OK”.
5.
Using the “Add” button, select the CP 1612.
