9 Example — Unspecified Connection from a PC Application

123

Commissioning PC Stations - Manual and Quick Start

Release 5/2005

C79000-G8976-C156-07

Activity

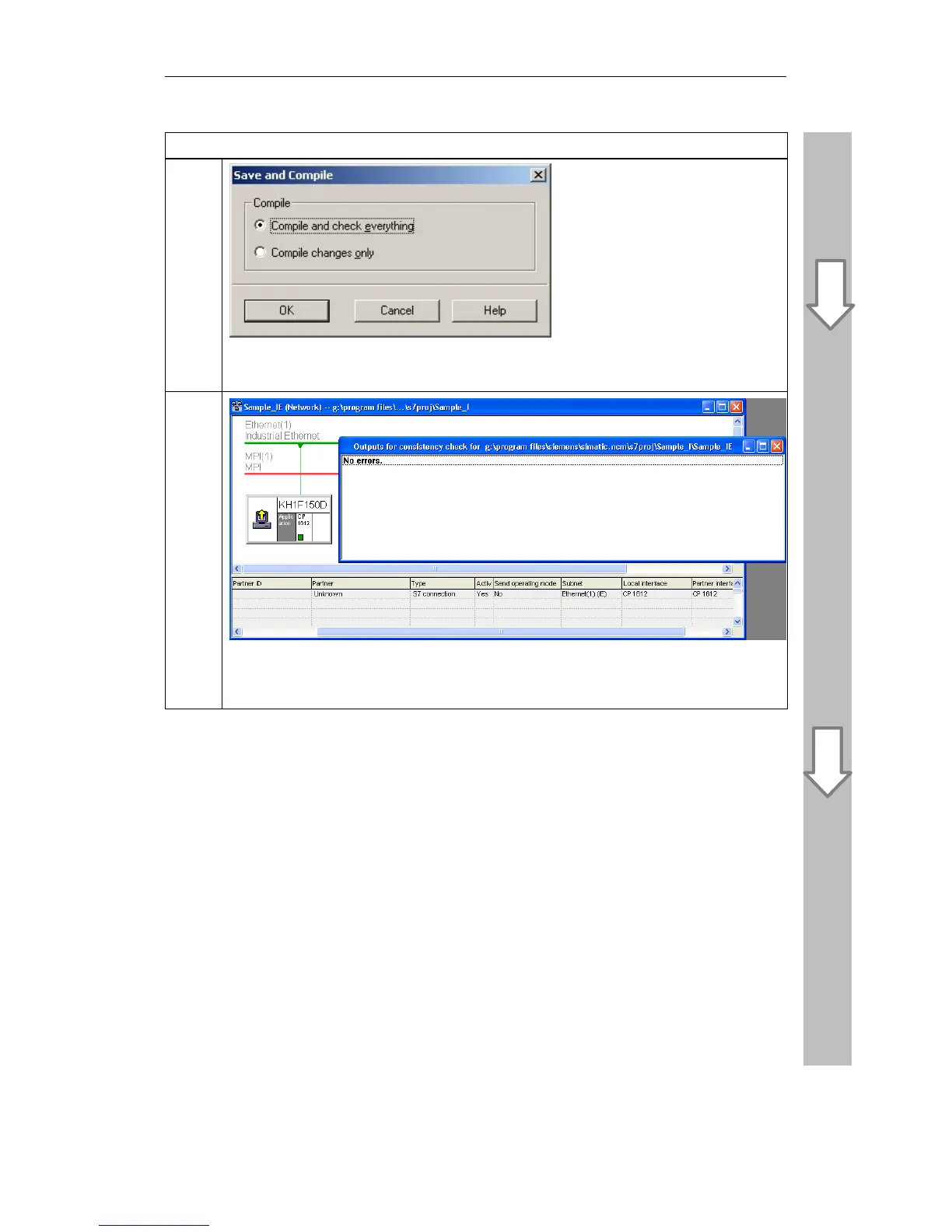

Confirm with OK.

You might be informed of errors by the consistency check.

You can only download the project when it is free of errors.

If you receive a warning, this is only for your information. You can close the window and

download to the PC station.
