9 Example — Unspecified Connection from a PC Application

127

Commissioning PC Stations - Manual and Quick Start

Release 5/2005

C79000-G8976-C156-07

Activity

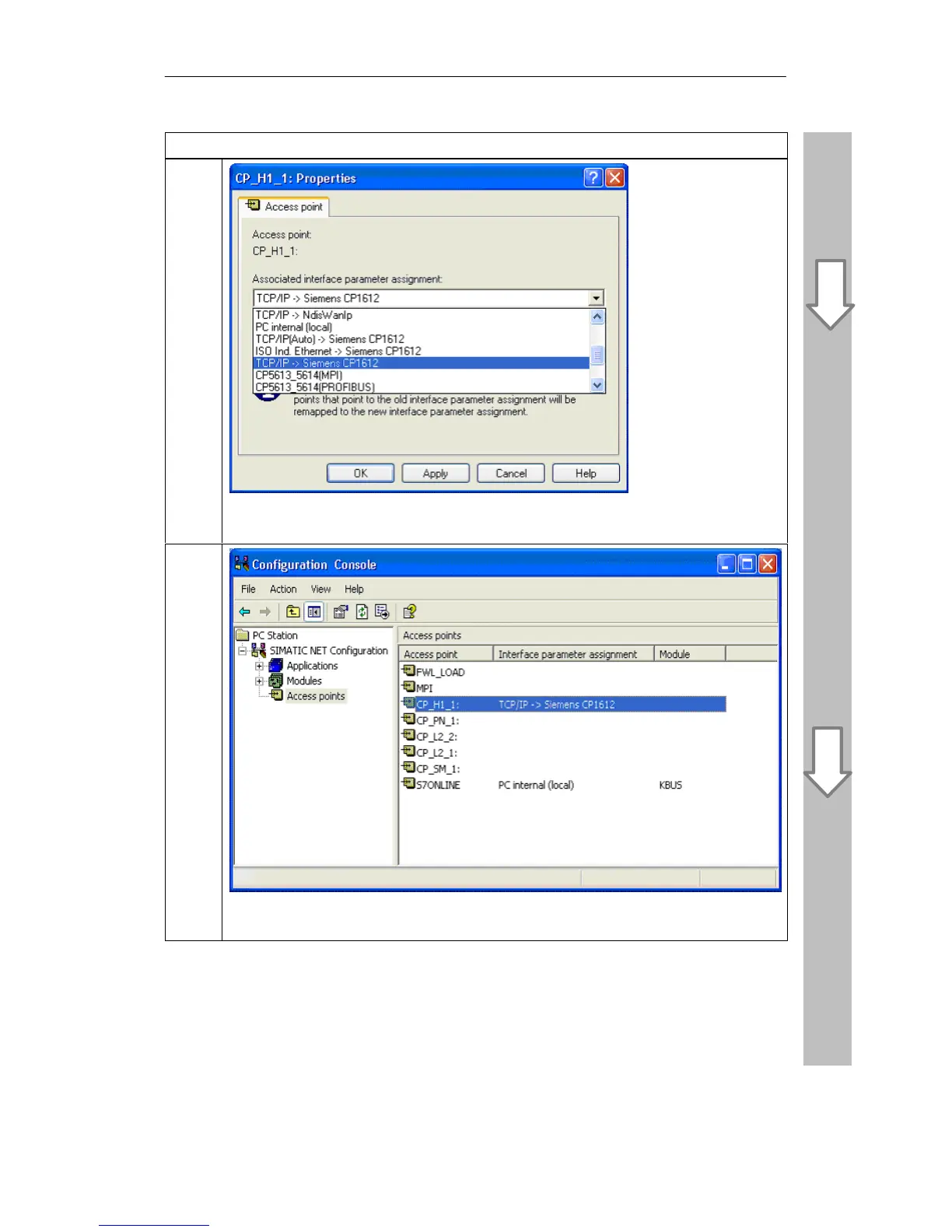

Select your module under “Assigned interface parameter assignment“.

Confirm with “OK”.

The setting is entered in the tools.

When you now start your application, it functions without changes in the source code.
