Follow the steps below:

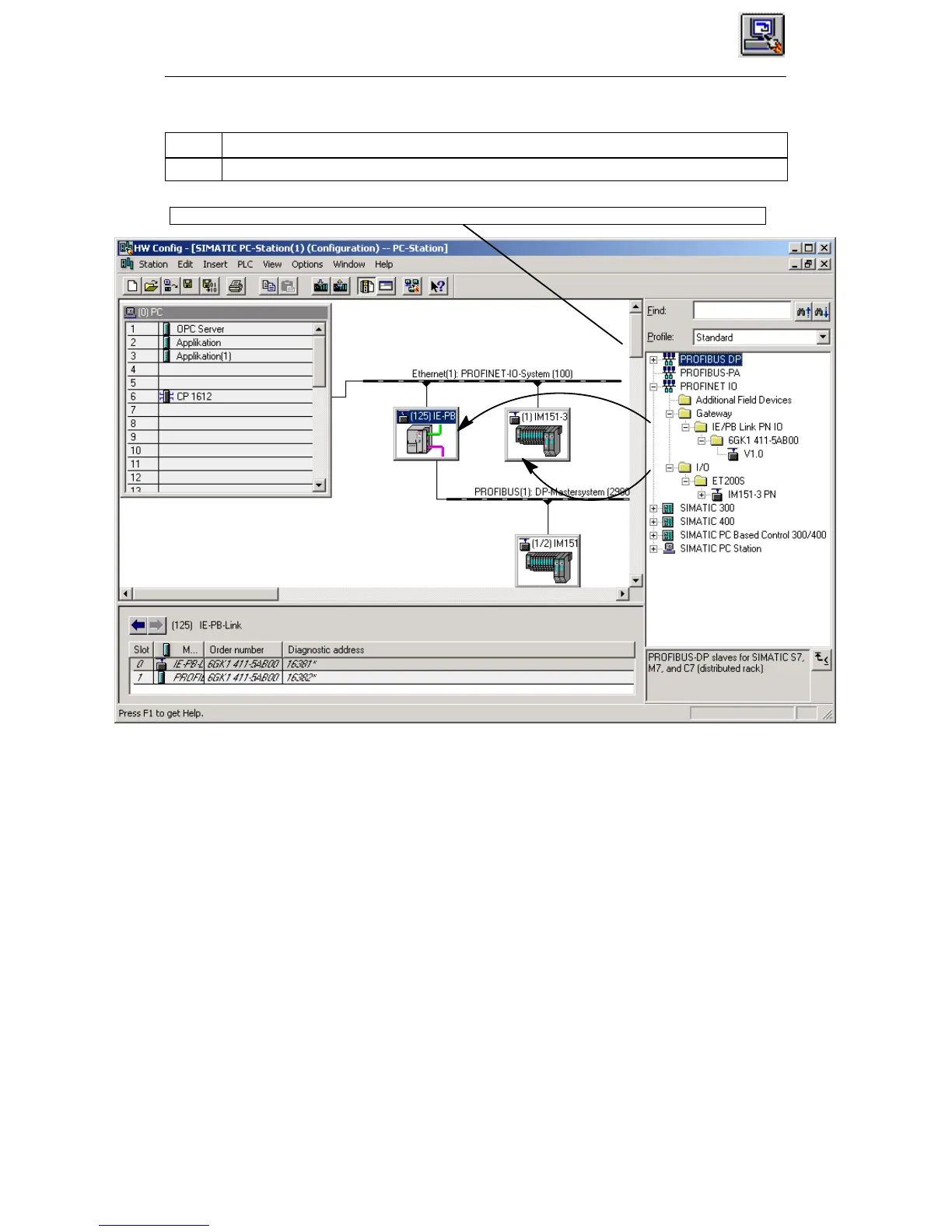

4 Now go to the catalog and insert the IO devices that will be addressed over the application.
Drag the IO device from the catalog onto the icon of the PROFINET IO system.
PROFINET IO Devices
PROFINET IO devices can be connected either directly to Ind. Ethernet or can be
connected as PROFIBUS DP slaves to a DP master system. By using an IE/PB
Link PN IO, you can address the DP slaves of a DP master system just like
PROFINET IO devices.
You will find further information here:
S Project engineering
In the basic help of STEP 7 / SIMATIC NCM PC in the topic “Steps in
Configuring a PROFINET IO System”, you will find a detailed description of how
to configure a PROFINET IO system.
S PROFINET IO - System Descriptions: see /18/ /19/
