16 Configuration Console Tool
225
Commissioning PC Stations - Manual and Quick Start
Release 5/2005
C79000-G8976-C156-07
Activity

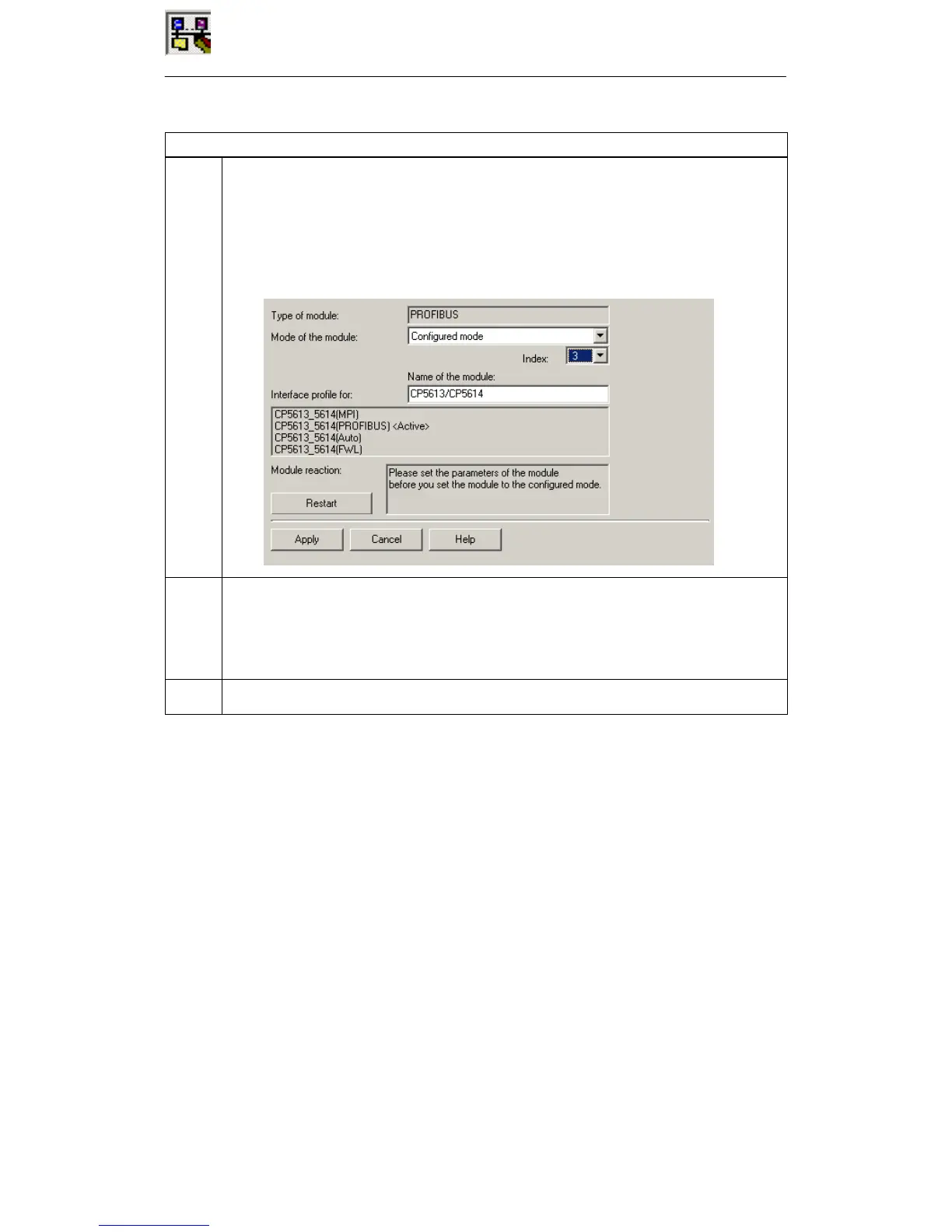

2 Select the mode you want to use for the module:
S Configured mode
The parameters for the module are set in the project engineering data.
S PG Operation
The parameters for the module are set in the “Set PG/PC Interface” or Configuration
Console program.
3 Set the index that must also match the index in the defined configuration. Use the value from
the defined configuration if this already exists. Otherwise you must use the value selected here
when you create the defined configuration.
If you changed from another mode to the “configured mode”, you can also set the index. We
recommend that you use the default.
4 “Apply” the set values.
