18 DCOM Settings with the dcomcnfg System Program

264

Commissioning PC Stations - Manual and Quick Start

Release 5/2005

C79000-G8976-C156-07

18.6.2 “Location” Tab

Description of the Settings

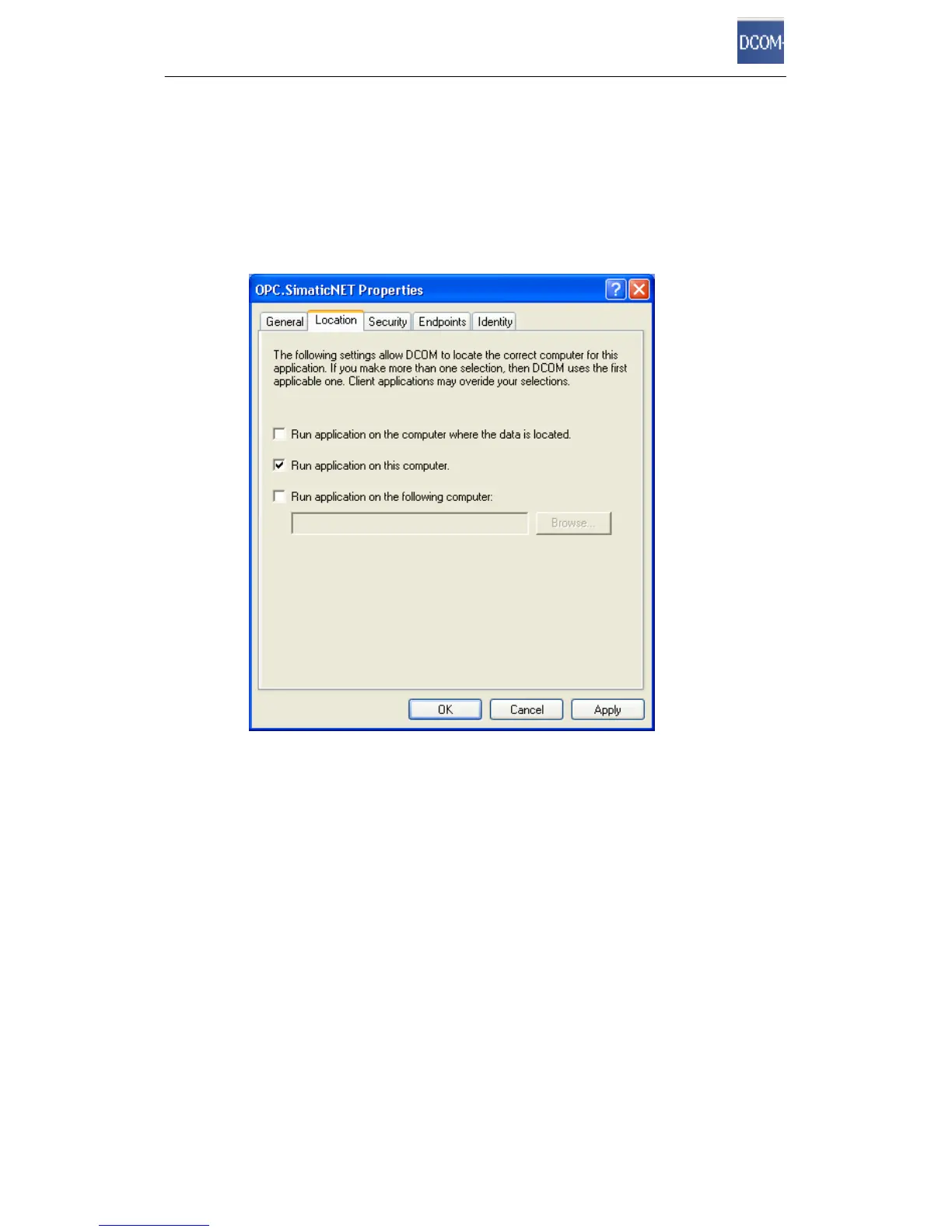

The “Location” tab is used to specify the computer on which the server is started.

Since the configuration of the computer with the OPC server is described in this

section, you must select the “Run application on this computer” setting.
