18 DCOM Settings with the dcomcnfg System Program

269

Commissioning PC Stations - Manual and Quick Start

Release 5/2005

C79000-G8976-C156-07

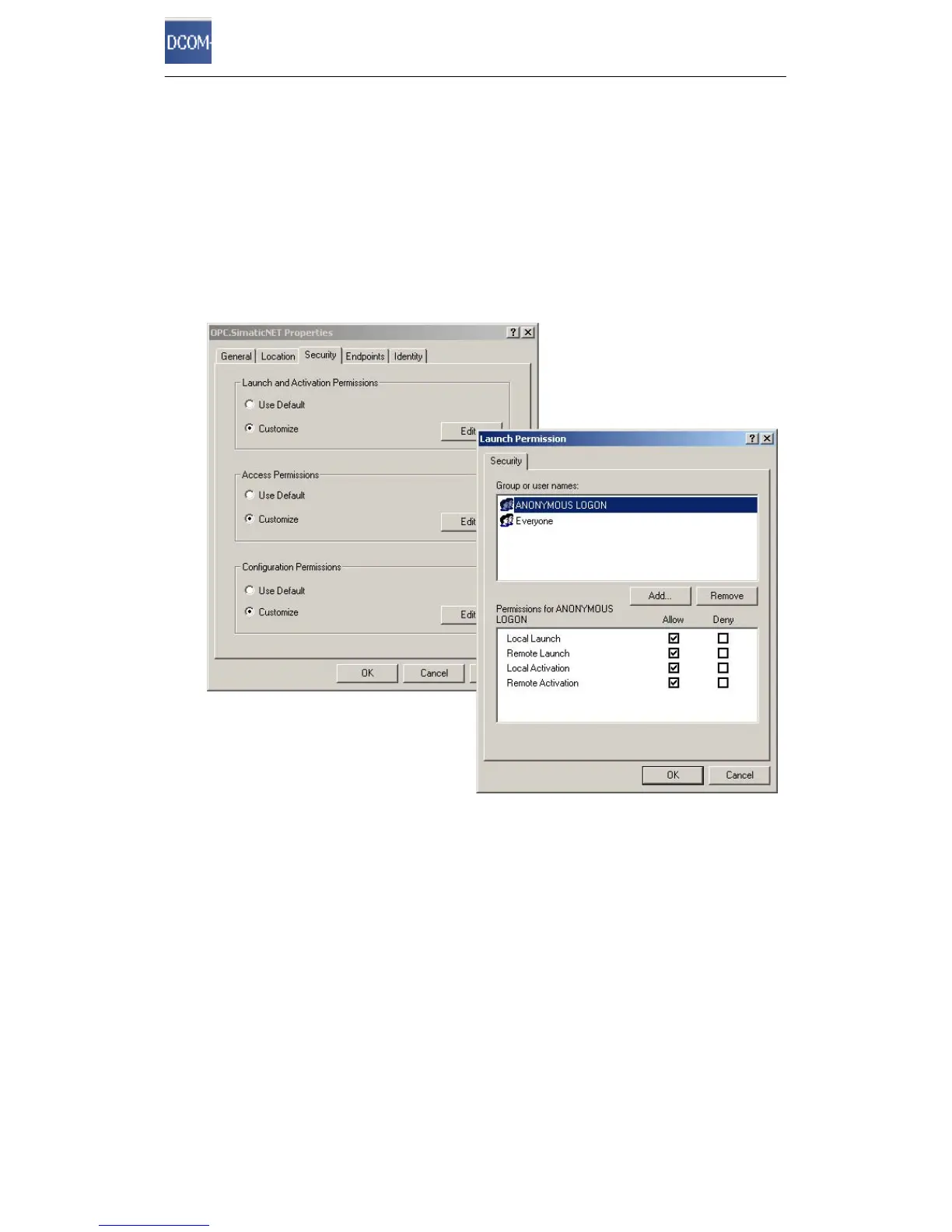

New as of Windows XP + SP2:

As of Service Pack 2 for Windows XP, communication over OPC also requires the

following permissions to be set up:

S Local and remote launch for the ANONYMOUS LOGON in Launch Permission;

S Local and remote activation for Anonymous Logon in Launch Permission;

S Local and remote access for the Anonymous Logon in Access Permission

The settings are made automatically when you install the SIMATIC NET CD.

Multiterminal Mode

In multiterminal mode with the identity “This user” for the OPC server, you must

assign standard permissions to the “This user” entry.
