Siemens SIMATIC S5 Equipment Manual

Programming Instructions
R 02/92

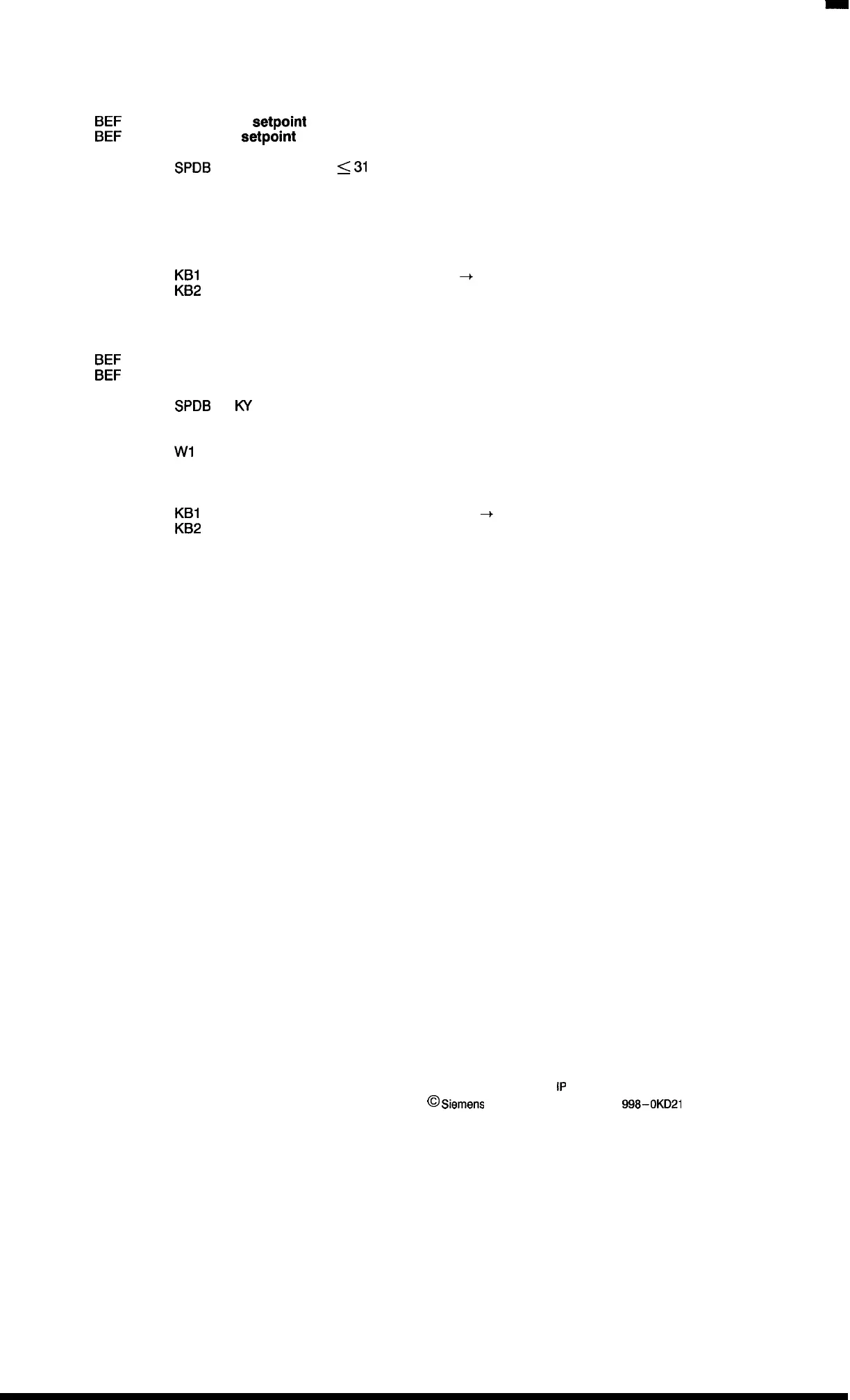

BEF = AW Read initial setpoint
BEF = EW Read end setpoint
SPDB :
KY = x, y 0< x <31 Track number
w : Output of initial/end value, or
WI : Output of initial/end value (High word)
W2 : Output of initial/end value (Low word)
KB : Output of identifier bits, or
KB1 : Output of identifier bits (High word) + Channel 2
KB2 : Output of identifier bits (Low word) -t Channel 1
ST
: Output of control bits
BEF = N1 Read zero shift, channel 1
BEF = N2 Read zero shift, channel 2
SPDB :
KY = x, y x= Disregard
w : Output of zero shift, channel 1/2 or
W1 : Output of zero shift, channel 1/2 (high word)
W2 ;
Output of zero shift, channel 1/2 (low word)
KB : Output of the identifier bits or
KB1 : Output of the identifier bits (high word) + Channel 2
KB2 : Output of the identifier bits (low word)+ Channel 1
9 – 24
ST : Output of control bits
1P 241 Equipment Manual
@ Siemens AG 1989, Order No.: 6ES5 898-0KD21
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Siemens SIMATIC S5 Specifications

General

Product type designation	SIMATIC S5
Programming language	STEP 5
Digital inputs	Varies by model
Digital outputs	Varies by model
Analog inputs	Varies by model
Analog outputs	Varies by model
Supply voltage	24V DC
CPU Type	Varies by model
Memory	Varies by model
Digital I/O	Varies by model
Analog I/O	Varies by model
Communication	PROFIBUS
Operating Temperature	0°C to 60°C
Relative Humidity	5% to 95% (non-condensing)
