Programming Instructions
R 02/92
BEF = IS
BEF = IV
Inhibit interrupt
Inhibit interrupt for supplying the module with new setpoints
SPDB :
KY = x, y x = Disregard
w : Output unchanged, and/or
WI : Output unchanged (high word)
W2 ; Output unchanged (Iowword)
KB : Output of identifier bits, and/or
KB1 :
Output of identifier bits (high word) + channel 2
KB2 : Output of identifier bits (low word) + channel 1
ST
: Output control bits
Special function “inhibit interrupt BEF = IS” or “inhibit interrupt for supplying BEF = IV” is activated
by a one–time call and is deactivated again by another call.

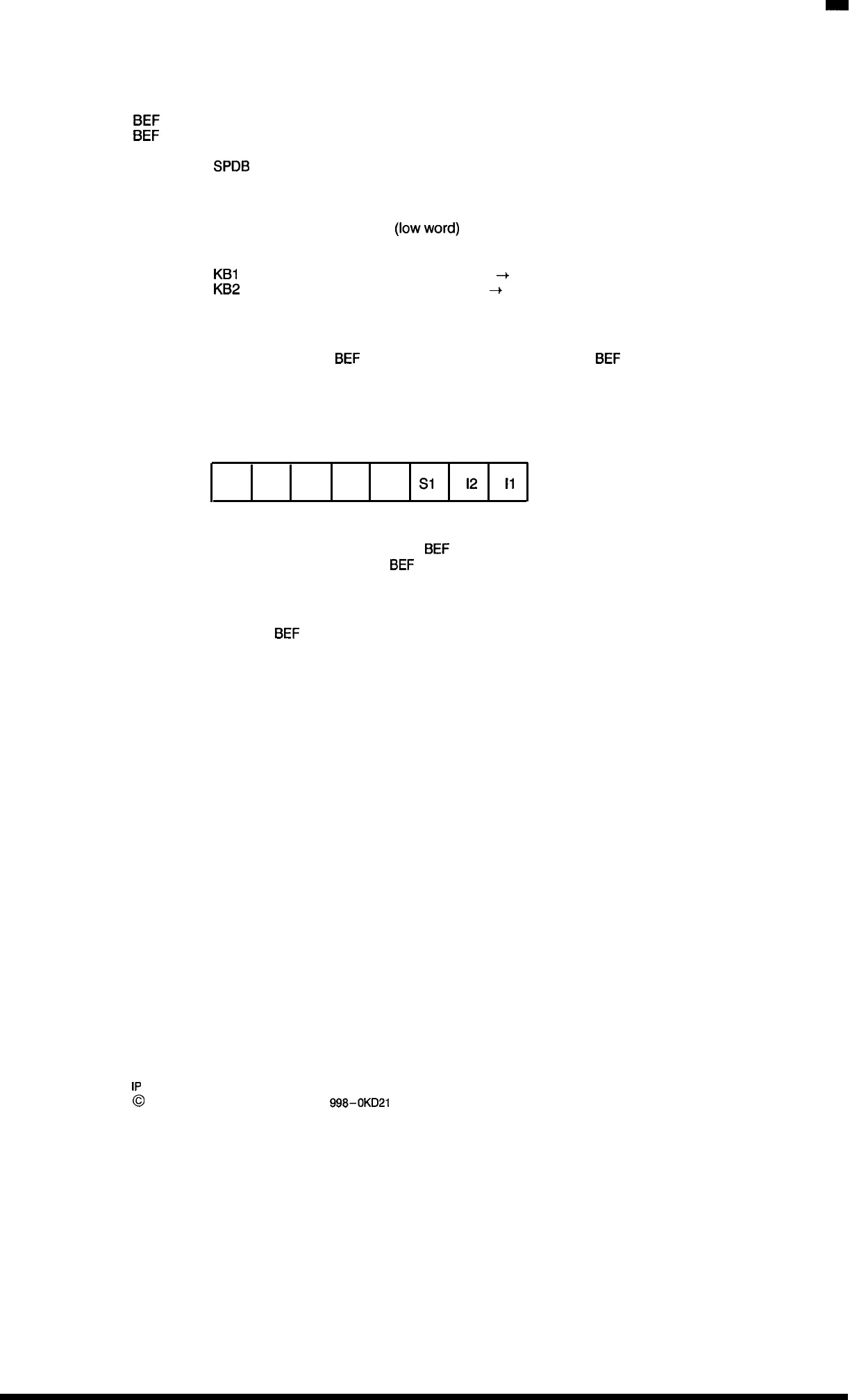

The following table shows the assignment of the “ST parameter”.
76543210
SP 1ss Is –
S2 S1 12 11
Activation of the “inhibit interrupt for supplying BEF = IV” command is indicated when bit 6 of the
ST parameter is set. The “inhibit interrupt
BEF = IS” command has been activated when bit 5 and
bit 6 of the ST parameter are set. The module resets bit 5 and bit 6 when the interrupt inhibit is
deactivated.
The “read actual value
BEF = IW” command is used, for example, to provide current information
concerning the module status (ST parameter).
1P 241 Equipment Manual
@ Siemens AG 1989, Order No.: 6ES5 998-0KD21
9 – 25
