Siemens SIMATIC TI505 - Figure B-3 Typical Front-Accessible Terminal Block

Troubleshooting
B-6
High Speed Counter Encoder Module User Manual
Terminal Block Worksheets (continued)
Front-accessible T erminal Block
(PPX:2587705–8011)
Back-up Power +12V
Back-up Power R TN
Ch1 A+
Ch1 A–
Ch1 B+
Ch1 B–
Ch1 C+
Ch1 C–
Ch1 D+
Ch1 D–
Output 1
Output 2
Ch1 INDEX+
Ch1 INDEX–
Ch1 RESET+
Ch1 RESET–
Ch1 INHIBIT+
Ch1 INHIBIT–
Ch2 A–
Ch2 B+
Ch2 B–
Ch2 C+
Ch2 C–
Ch2 D+
Ch2 D–
PWR +24V
RTN
Ch2 INDEX+
Ch2 INDEX–
Ch2 RESET+
Ch2 RESET–
Ch2 INHIBIT+
Ch2 INHIBIT–
Ch2 A+
Output 3
Output 4
Output 5
Output 6
Output 7
Output 8

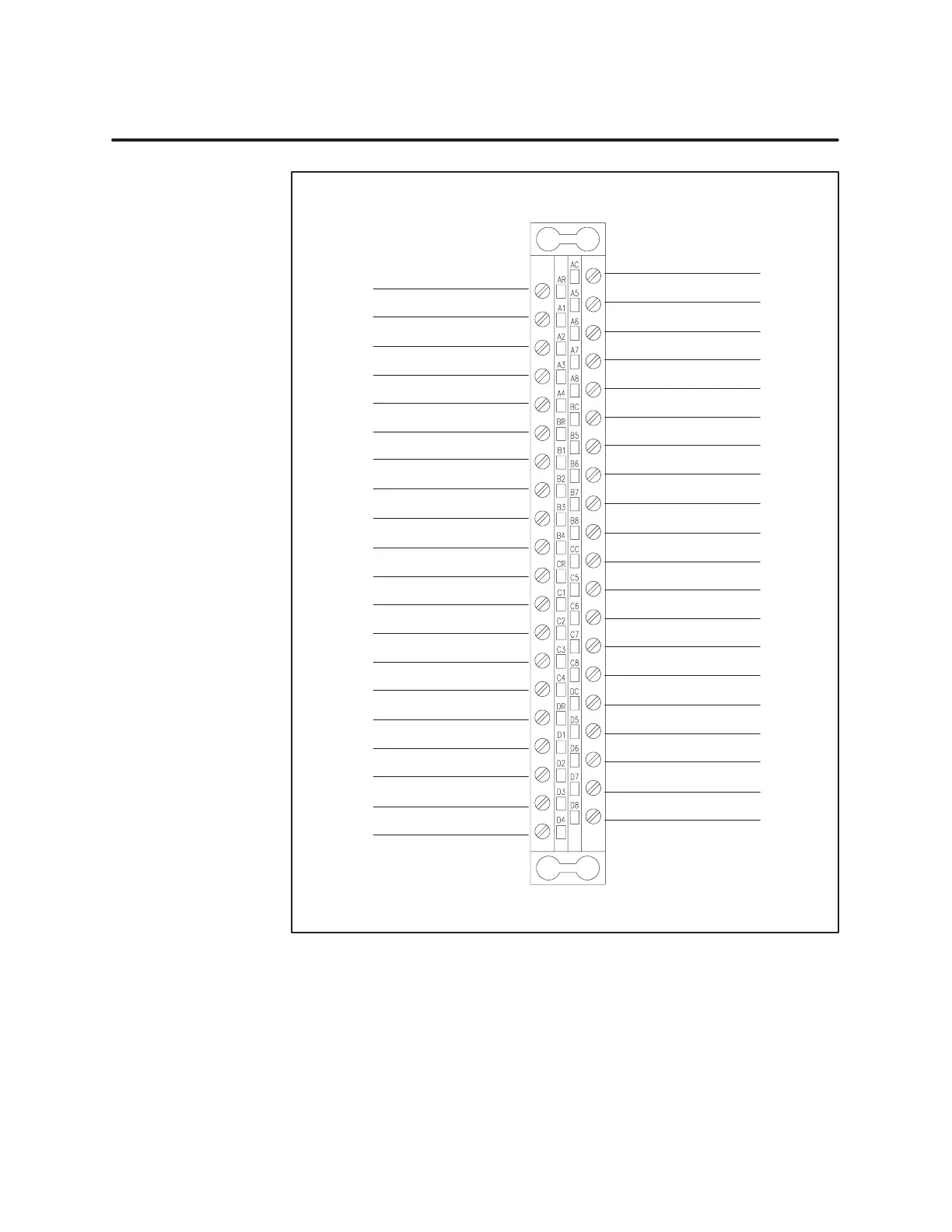

Figur e B-3 Typical Fr ont-Accessible T er minal Block
