Product Overview

1-2

High Speed Counter Encoder Module User Manual

1.1 Physical Features of the Module

The

SIMATIC TI505 High Speed Counter Encoder Module (PPX:505–7003)

is a single-wide input/output module that communicates with the PLC when

installed in a TI505 system. The physical features of the module are shown

in Figure 1-1.

Back-plane

Connector

Front

Bezel

Bezel Screw

Output LEDs

Removable

erminal Block

Bezel Screw

Status LEDs

Configuration

Jumpers

Printed Circuit

Board Shield

Connector screw

Edge card connector

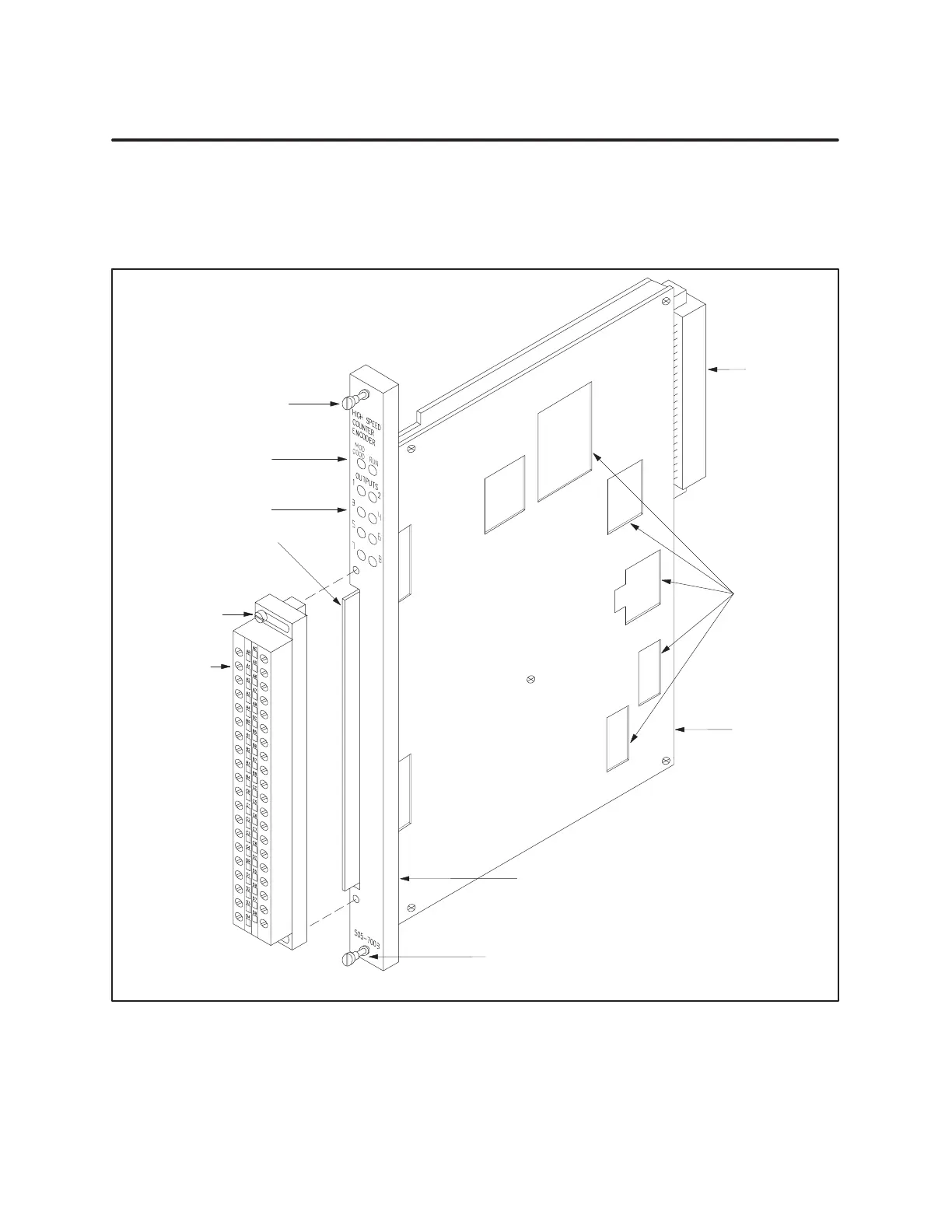

Figure 1-1 Physical

Featur

es of the High Speed Counter Encoder Module

Physical Featur
