Specifications
C-7
High Speed Counter Encoder Module User Manual
C.3 Output Specifications
The
HSCE Module output circuits meet the specifications listed in
T
able C-3.
T
able C-3
Output Specifications
User Voltage
28.8 VDC maximum
Voltage Drop (power supply to
output terminal)
1.4 volts maximum at 500 mA
Leakage Current (Off state) Less than 10 microamps
Output Current ratings
(all outputs operational)
Continuous: 200 mA per output
Peak: 500 mA per output, for less than 1/3
of the period of the output pulse, or 1 second,
whichever is less (see Figure C-5).
Output Continuous Current
(adjacent channel outputs)
200 mA per output
OR, one output at 500 mA, with remaining
channel outputs off or having a load of less than
20 mA.
500
mA
200 mA
1/3 2/3
Output Pulse

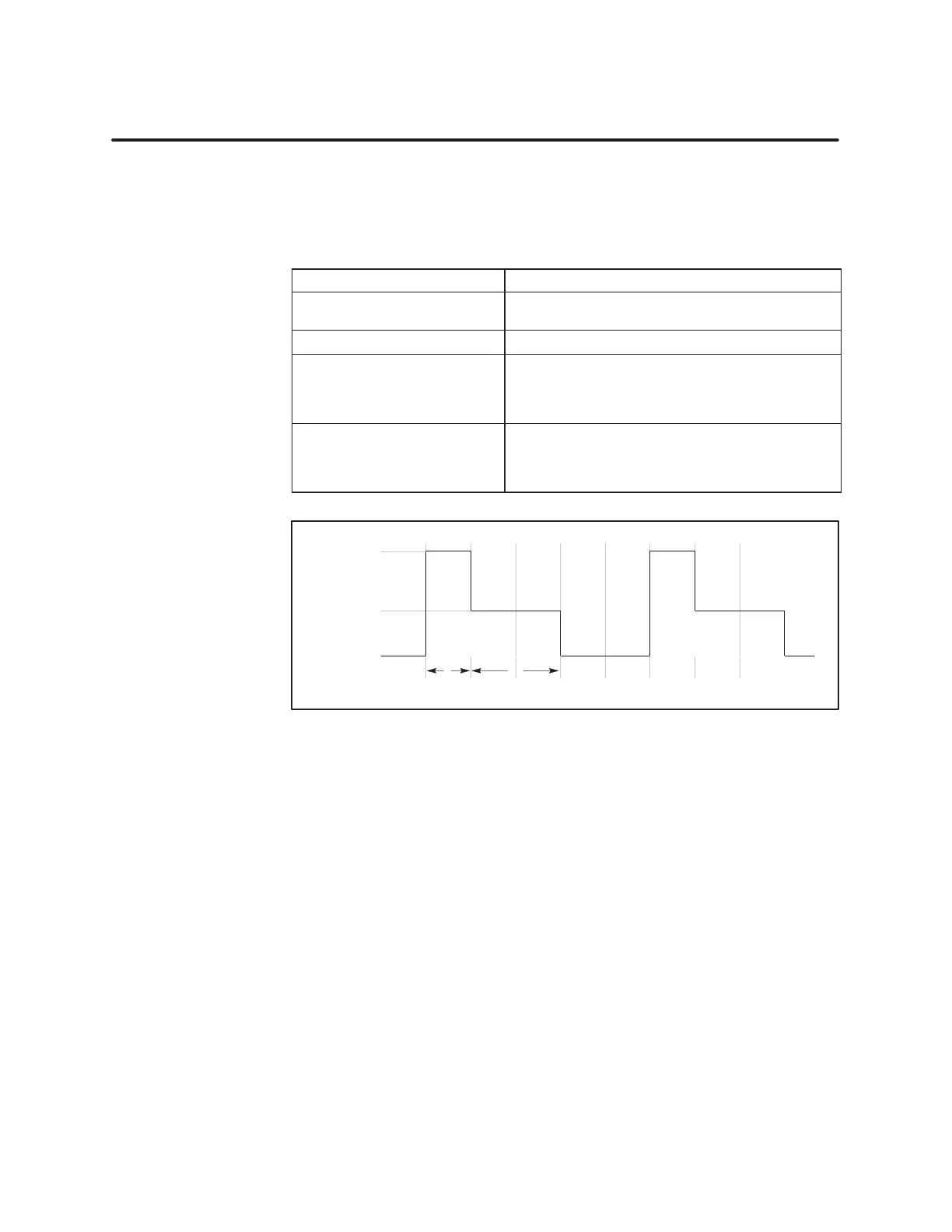

Figur
e C-5
Peak
vs. Continuous Curr
ent Output
The Output Power Supply must be rated at 24 V
"
20
per cent at 100
milliamperes plus total output load current. The supply must be a Class 2
power supply
.
Output V
oltage
and Curr
ent
Specifications
Output Power
Supply
Specifications
