Product Overview
1-3
High Speed Counter Encoder Module User Manual
The
High Speed Counter Encoder Module (HSCE) provides a total of ten
LED indicators on the faceplate. See Figure 1-2.
•
Eight red LEDs indicate the on/off status of outputs 1 through 8.
•
A red LED labeled
MOD GOOD
indicates that the module is powered up
and has not detected any hardware or software failure.
•
A green LED labeled
RUN
indicates that the module is in Run mode. It
flashes when the module is first powered up, before it has been
programmed (configured) from the PLC. When the
RUN LED
is off, the
module is not in the Run mode, or has detected a programming or other
fault condition. Other flashing patterns indicate fault conditions. (See
T
able B-1.)
HIGH
SPEED
COUNTER
ENCODER
MOD
GOOD
RUN
OUTPUTS
12
34
56
78
Module Status LED (red)
Run Status LED (green)

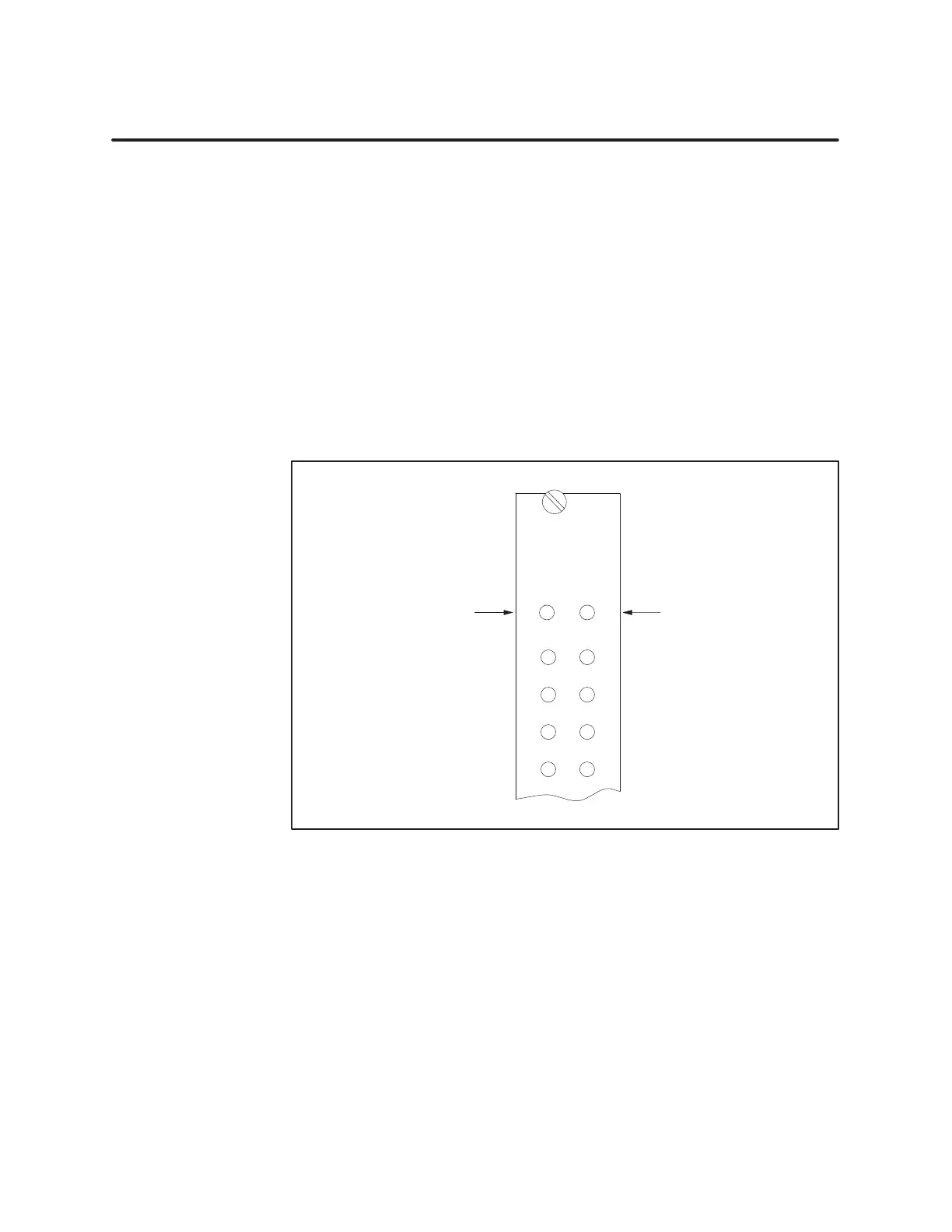

Figure 1-2 LED
Indicators
LED Indicators
