Specifications
C-3
High Speed Counter Encoder Module User Manual
C.2 Input Specifications
The
HSCE Module responds to input signals according to the specifications
listed in T
able C-2 and shown in Figure C-1.
T
able C-2
Input V
oltage and Curr
ent Specifications
On Voltage 4 to 28 VDC maximum
On Current 7 to 13 mA
Off Voltage Less than 1.25 VDC
Off Current
Less than 100 A
Current
(mA)
Volts
ON
Note:
In the transition region from 1.25 to 4 volts, the response of the module cannot be
determined. The inputs may be on or of
f. For the fastest and most reliable counting, the
input signal rise and fall times should be as short as possible.
T
ransition region
Min
Max

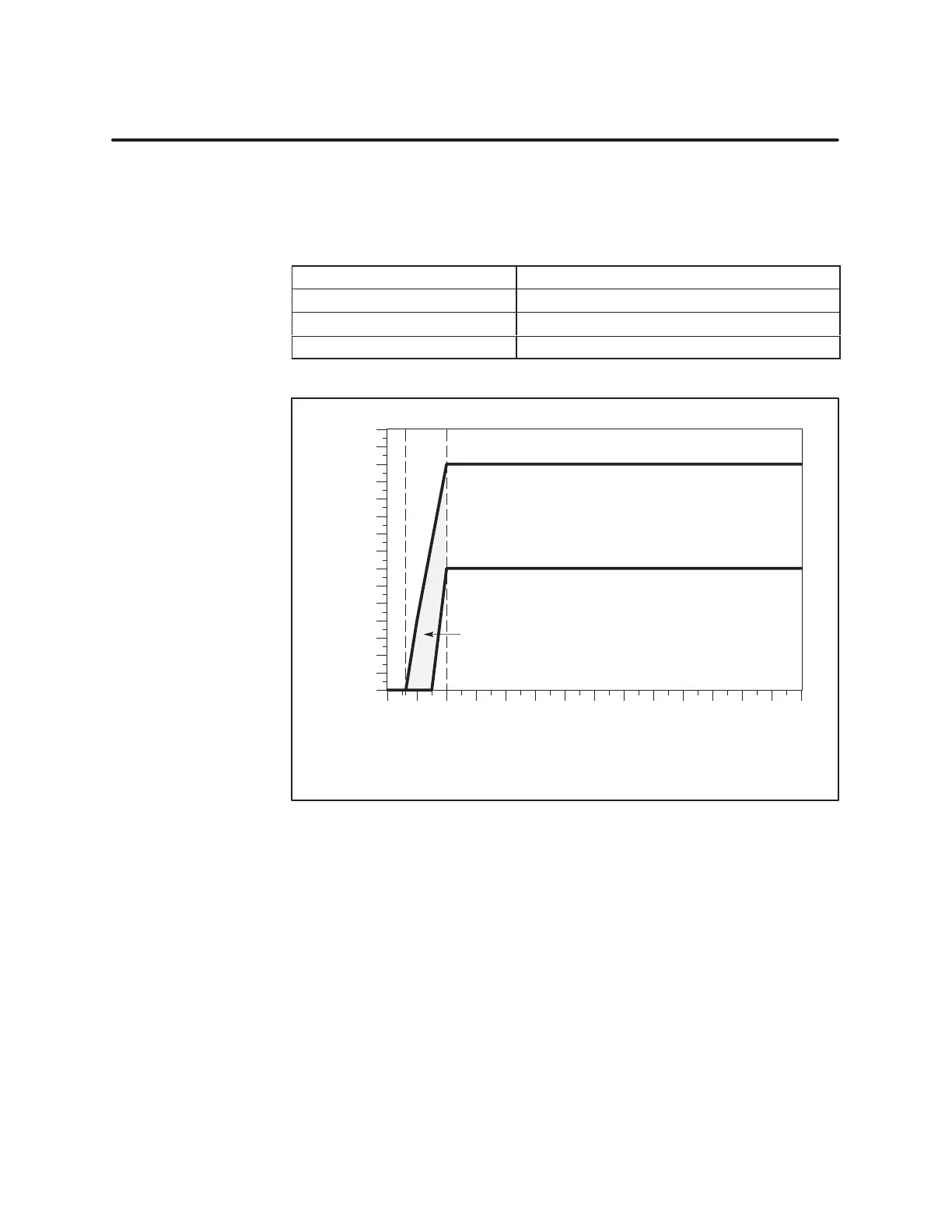

Figur
e C-1
Input
Specifications
Input V
oltage
and Curr
ent
Specifications
