Optional Configurations
5-6
High Speed Counter Encoder Module User Manual
5.4 Basic Configuration Options
Several jumper options are independent of the options selected by other
jumpers or software settings. These basic options include the following:
• Input filtering
• Disabling outputs under Module Failure or PLC Output Disable
conditions
• Output polarity

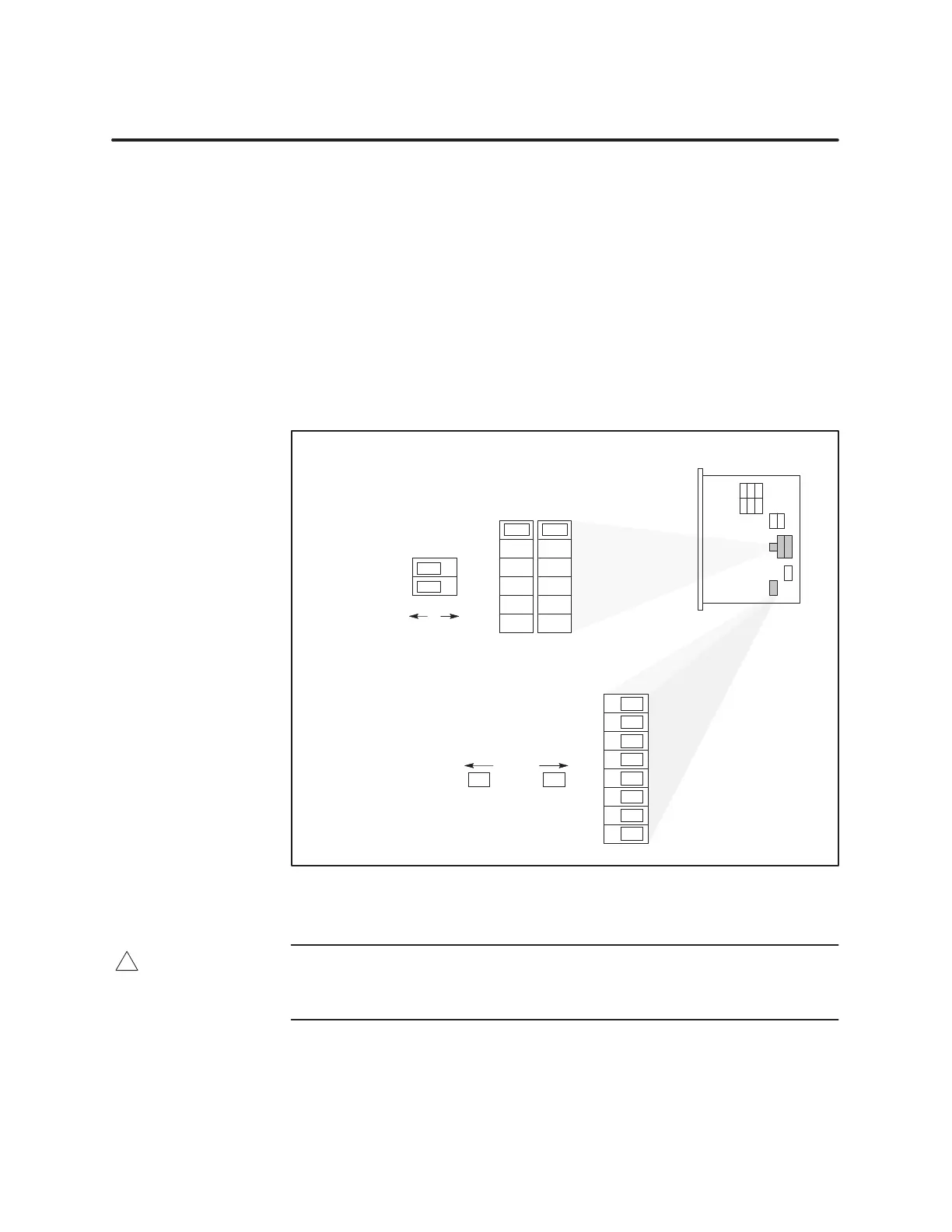

Figure 5-3 shows jumper locations for the basic options. Jumpers are shown
in their default positions.
••
••
••
••
Ch 1 Ch 2
E53 100 kHz
E54 25 kHz
E55 6.25 kHz
E56 1.5 kHz
E57 400 Hz
E58 100 Hz
••
••
••
••
••
••
••
••
Filtering Options:
•••
•••
MODFAIL
OUTDIS
Hold Clear
1
2
3
4
5
6
7
8
•••
•••
•••
•••
•••
•••
•••
•••
Inverted
0 = On
Output Polarity:
Non-Inverted
1 = On
E67
E68
E69
E70
E71
E72
E73
E74
E45
E46
•••
•••
E47
E48
E49
E50
E51
E52
Output Disable Mode:
Output
Figure 5-3 Basic Configuration Jumpers
Jumpers must be installed as indicated in the following
paragraphs. Not installing a required jumper may cause a signal
line to float and produce unpredictable counter operation.
CAUTION
!
