Installing the Module
2-5
High Speed Counter Encoder Module User Manual
PPX:2587705–8010
Side-accessible
Back-up Power +12V
Back-up Power RTN
Ch1 A+
Ch1 A–
Ch1 B+
Ch1 B–
Ch1 C+
Ch1 C–
Ch1 D+
Ch1 D–
Output 1
Output 2
Ch1 INDEX+
Ch1 INDEX–
Ch1 RESET+
Ch1 RESET–
Ch1 INHIBIT+
Ch1 INHIBIT–
Ch2 A–
Ch2 B+
Ch2 B–
Ch2 C+
Ch2 C–
Ch2 D+
Ch2 D–
PWR +24V
RTN
Ch2 INDEX+
Ch2 INDEX–
Ch2 RESET+
Ch2 RESET–
Ch2 INHIBIT+
Ch2 INHIBIT–
Ch2 A+
Output 3
Output 4
Output 5
Output 6
Output 7
Output 8
PPX:2587705–801 1
Front-accessible
12 V olts DC
Class 2 Power Supply
User Power (PWR+)
24 V olts DC
Class 2 Power SUpply
Connector –801 1 accepts only
the wire termination shown below:
Connector –8010 accepts any of the
three wire terminations shown below:
6mm
(0.25 in.)
Wire Guage: 14–22
6mm
(0.25 in.)
Wire Guage: 14–22
Stud size: #4 (2.5 mm)
Amp.Part #: 321462
Max. Width:
5.54 mm
(0.218 in.)
Stud size: #4 (2.5 mm)
Amp.Part #: 327891
Max. Width:
4.62 mm
(0.182 in.)

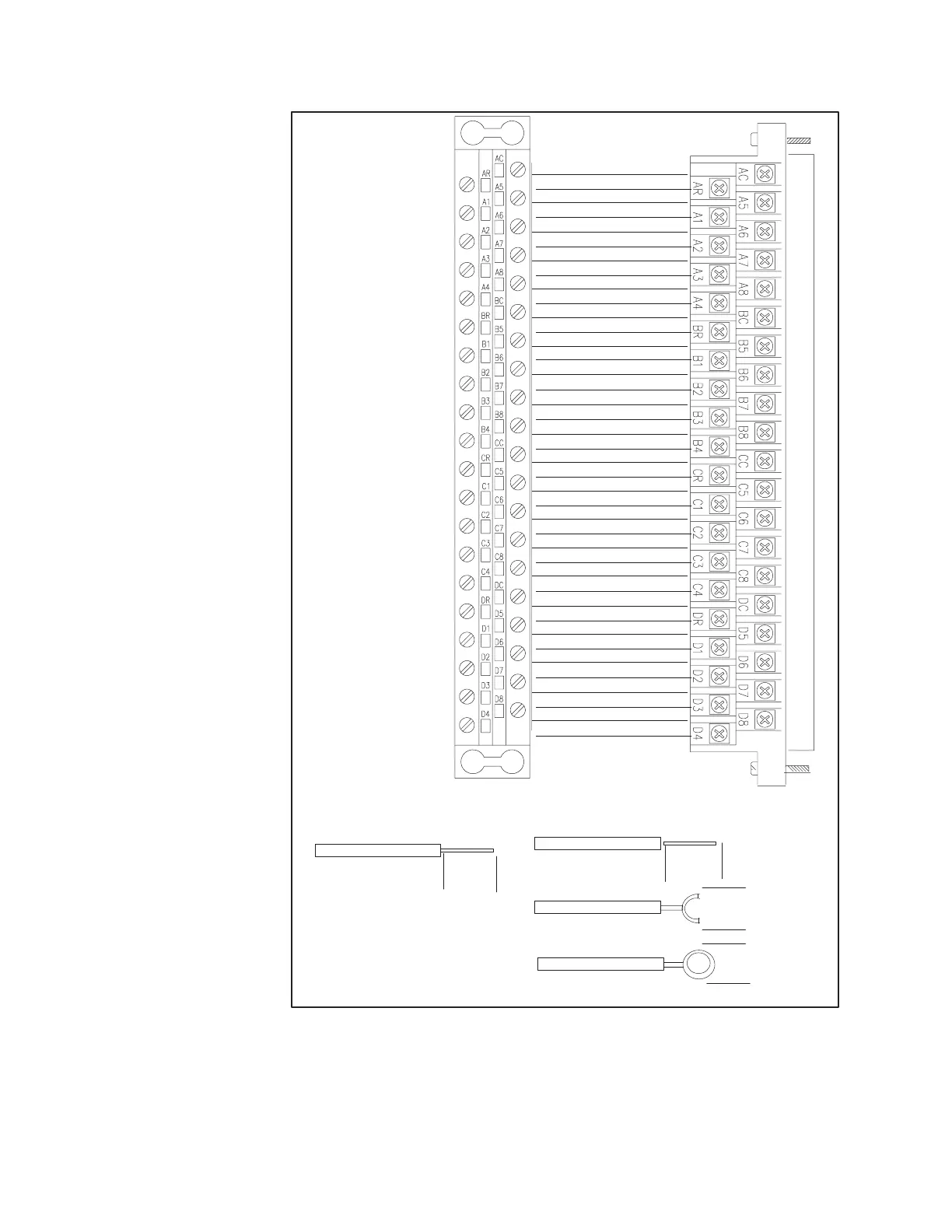

Figure 2-3 Terminal Blocks and I/O Connections
