Siemens SINUMERIK 802D sl Programming Manual

Enhanced Level Commands
4.1 Program support functions (1)
04.07
4-100
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
R_: Distance from the initial level to point R level
Q_: Shift amount at the bottom of a hole
P_: Dwell time at the bottom of a hole
F_: Cutting feedrate
K_: Number of repeats
G76 (G98) G76 (G99)
Spindle CW
Initial level
Point R
Point Z
q
Spindle CW
Point R levelPoint R
Point Z
q
PP
M19
M19

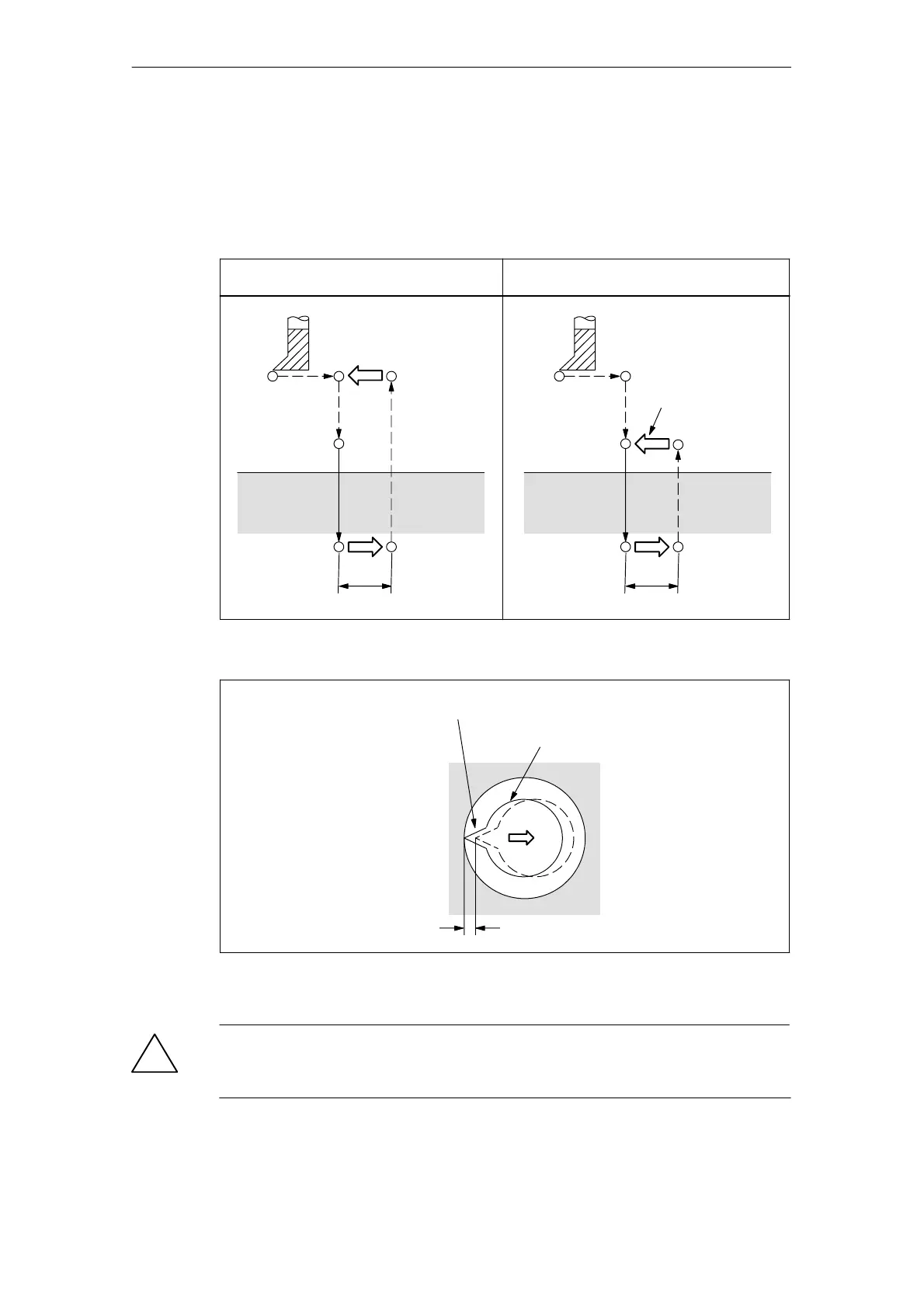

Fig. 4-7 Fine boring cycle (G76)
Oriented spindle stop
Tool
Shift amount q
Fig. 4-8
!
Warning
Address Q is a modal value wich is retained within canned cycles. Special care
has to be taken because it is also used as the depth of cut in cycles G73 and G83.
