Siemens SINUMERIK 802D sl Programming Manual

Enhanced Level Commands
4.1 Program support functions (1)
04.07
4-109
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
4.1.7 Boring cycle (G85)
Format
G85 X... Y... R... F... K... ;
X,Y: Hole position
Z: Distance from point R to the bottom of the hole
R: Distance from the initial level to R level
F: Cutting feed rate
K: Number of repeats
G85 (G98) G85 (G99)
Point Z
Initial level
Point R
Point Z
Point R level
Point R

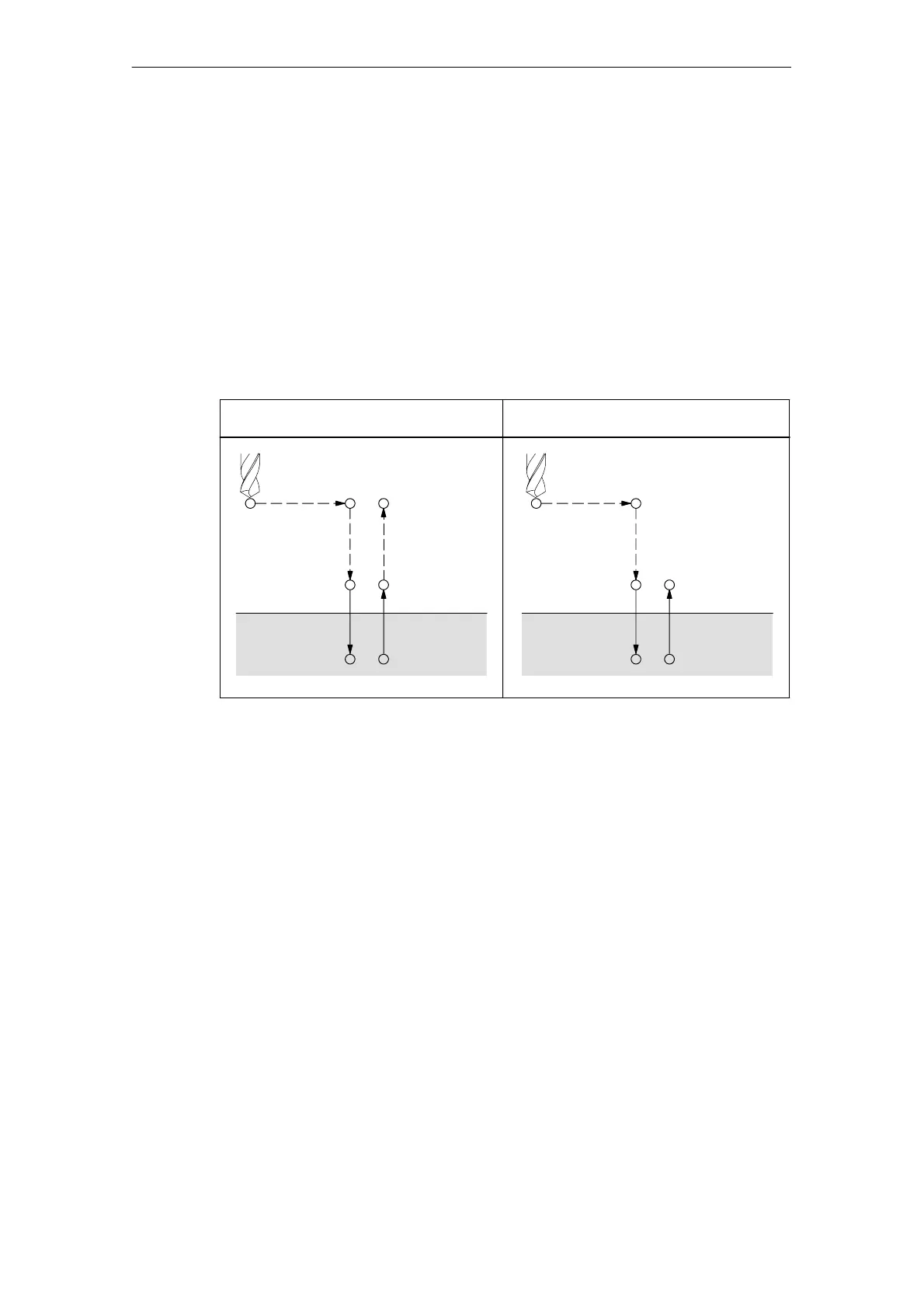

Fig. 4-12 Boring cycle (G85)
Explanations
Rapid traverse is carried out to point R after positioning along the X-- and Y-- axis.
Drilling is performed from point R to point Z. After reaching point Z, cutting feed is
performed back to point R.
Axis switching
Before the drilling axis can be changed the canned cycle must be c anceled.
Drilling
Drilling is not performed in a block that does not contain X, Y, Z, R, or any other
axes.
