Enhanced Level Commands

4.1 Program support functions (1)

04.07

4-107

SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition

4.1.6 Peck drilling cycle (G83)

By means of this cycle peck drilling is performed. It is used for deep hole drilling

with shaving extraction.

Format

G83 X... Y... R... Q... F... K... ;

X,Y: Hole position

Z: Distance from point R to the bottom of the hole

R: Distance from the initial level to R level

Q: Depth of cut for each cutting feed

F: Cutting feedrate

K: Number of repeats

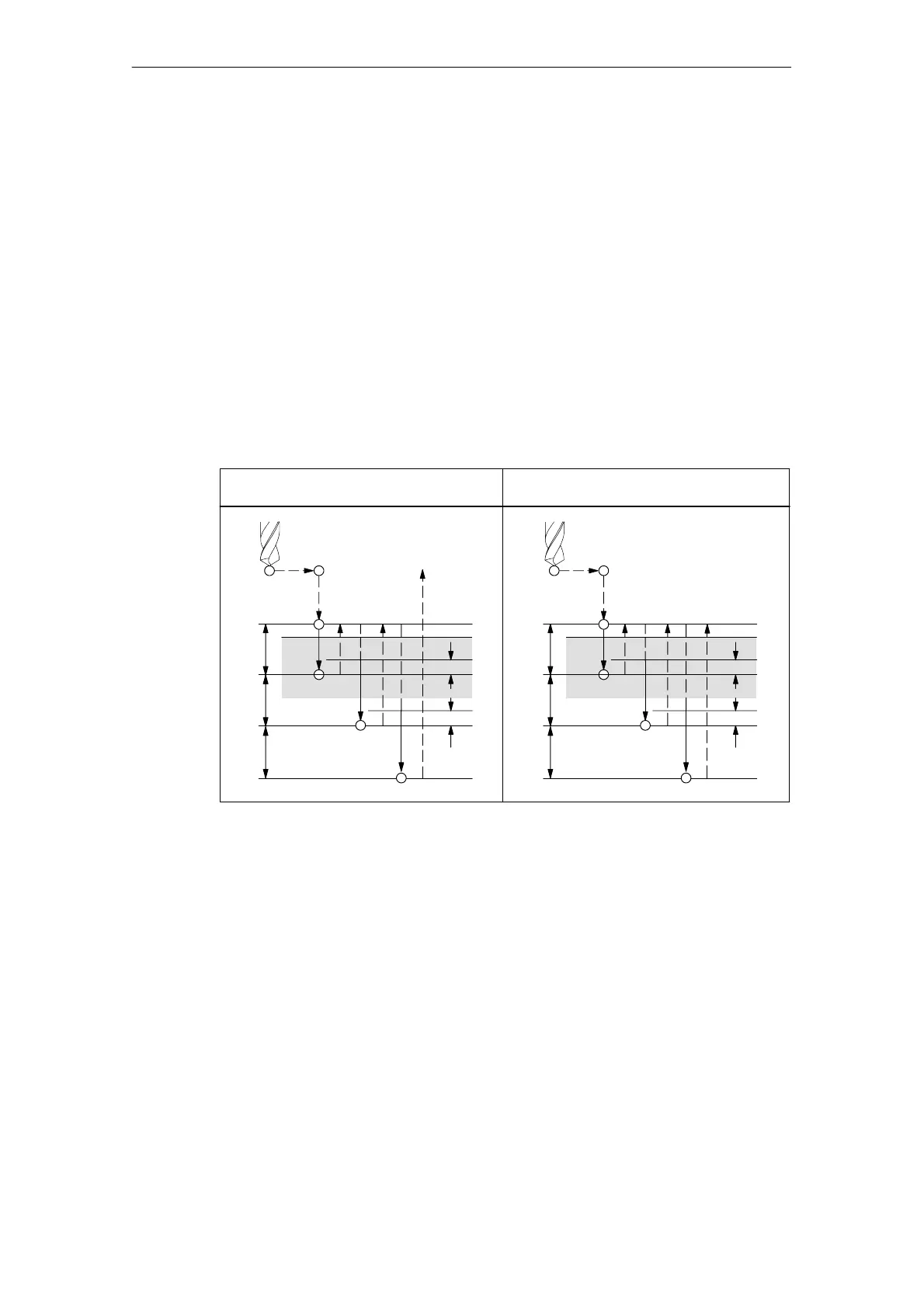

G83 (G98) G83 (G99)

Point Z

Initial level

Point R

Point Z

Point R levelPoint R

Fig. 4-11 Peck drilling cycle (G83)

Explanations

After reaching the programmed depth of cut for each cutting feed Q, retraction to

reference level R is performed in rapid traverse. Approach movement for a rene-

wed cut is again carried out in rapid traverse up to a distance (d) which is set to

GUD7 _ZSFR[1]. Distance d and the depth of cut for each cutting feed Q are tra-

versed with cutting feed. Specify Q incrementally implemented without sign.

Axis switching

The canned cycle must be canceled before the drilling axis can be changed.
