4.1.2 High--speed peck drilling cycle (G73)
This cycle carries out high--speed peck drilling. It induces intermittent cutting feed
to the bottom of a hole. Retract movements enables chip removal.
Format
G73 X.. Y... R... Q... F... K... ;
X,Y: Hole position
Z: Distance from point R to the bottom of the hole
R: Distance from the initial level to R level
Q: Depth of cut for each cutting
F: Cutting feedrate
K: Number of repeats
G73 (G98) G73 (G99)
Point Z
Initial level
Point R
q
q
q
d
d
Point Z
Point R level
Point R
q
q
q
d
d

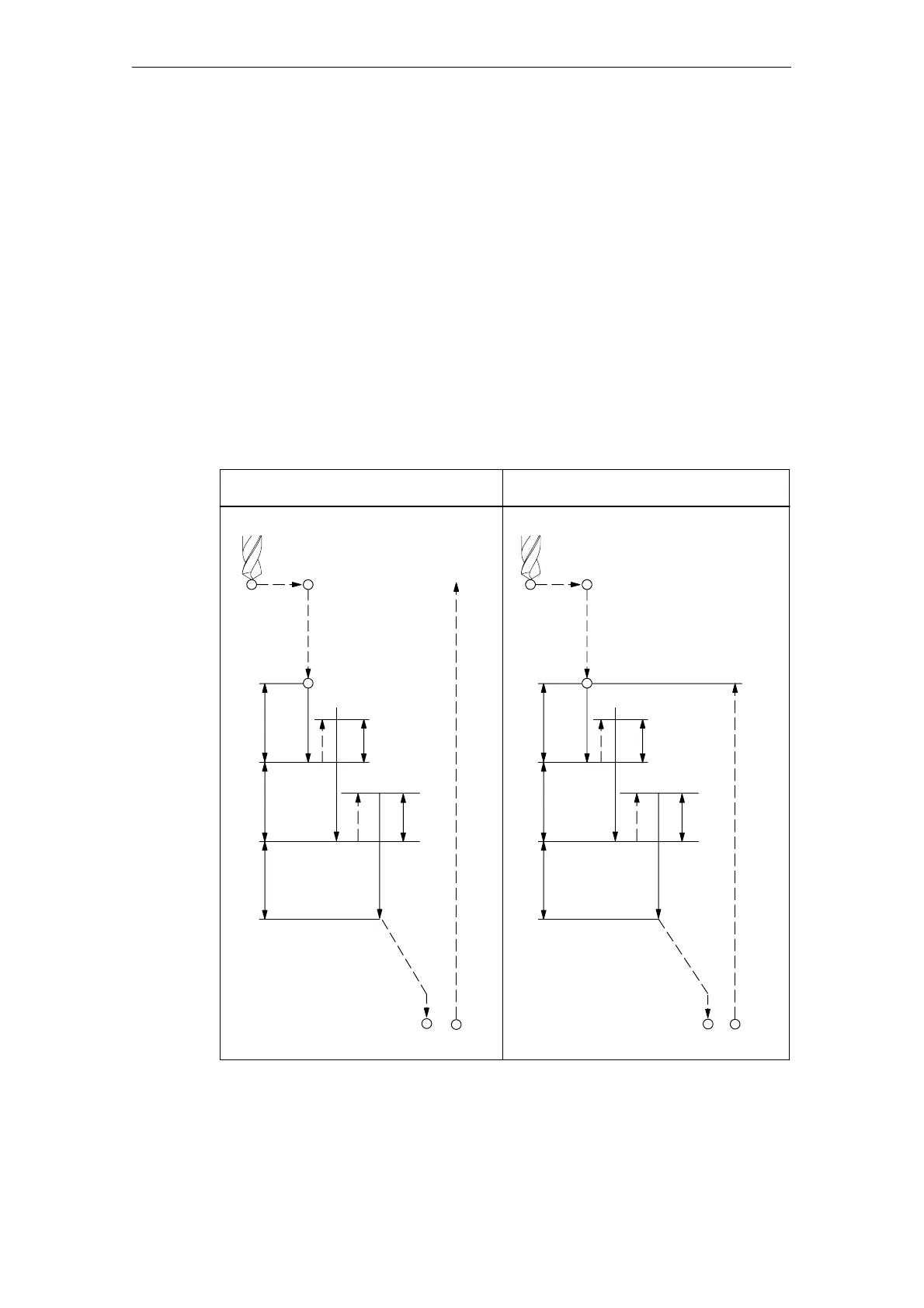

Fig. 4-6 High--speed peck drilling cycle (G73)
