Siemens SINUMERIK 802D sl Programming Manual

Enhanced Level Commands
4.1 Program support functions (1)
04.07
4-111
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
4.1.8 Boring cycle (G86)
Format
G86 X... Y... R... F... K... ;
X,Y: Hole position
Z: Distance from point R to the bottom of the hole
R: Distance from the initial level to point R
F: Cutting feed rate
K: Number of repeats
G86 (G98) G86 (G99)
Point Z
Initial level
Point R
Point Z
Point R level
Point R
Spindle CW
Spindle CW
Spindle stop
Spindle stop

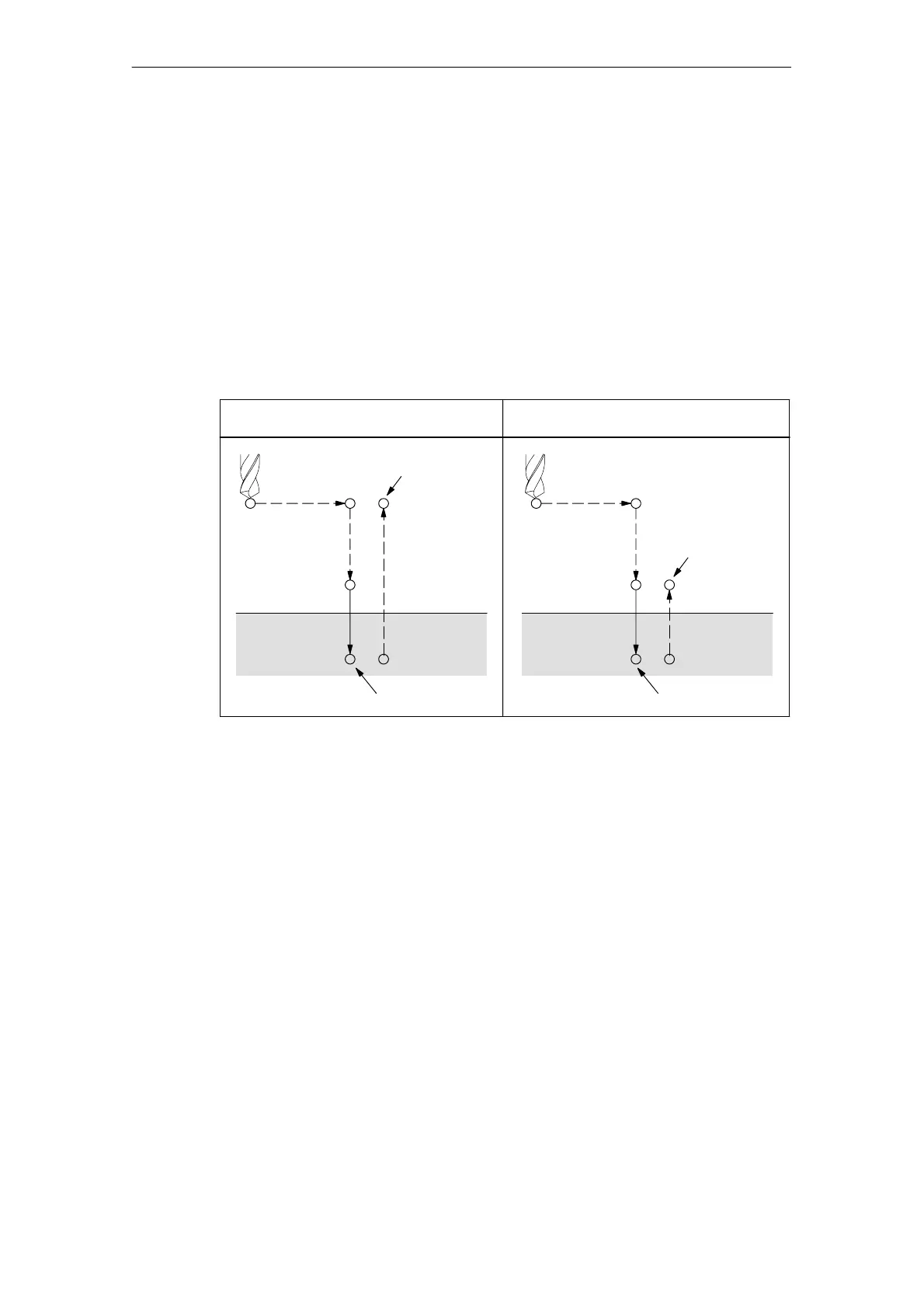

Fig. 4-13 Boring cycle (G86)
Explanations
Rapid traverse is performed to point R after positioning along the X and Y axes.
Drilling is performed from point R to point Z. After the spindle is stopped at the bot-
tom of the hole, the tool is retracted in rapid traverse.
Axis switching
The canned cycle must be canceled before the drilling axis can be changed.
Drilling
Drilling is not performed in a block that does not contain X, Y, Z, R, or any other
axes.
