4.1.9 Boring cycle, back boring cycle (G87)
Accurate boring is performed by this cycle.
Format
G87 X... Y... R... Q... P... F... K... ;
X,Y: Hole position
Z: Distance from the bottom of the hole to point Z
R: Distance from the initial level to point R (the bottom of the hole)
Q: Tool shift amount
P: Dwell time
F: Cutting feed rate
K: Number of repeats
G87 (G98) G87 (G99)
Spindle CW
Point R
Point Z
P
Not used
Spindle CW
q
M19
M19

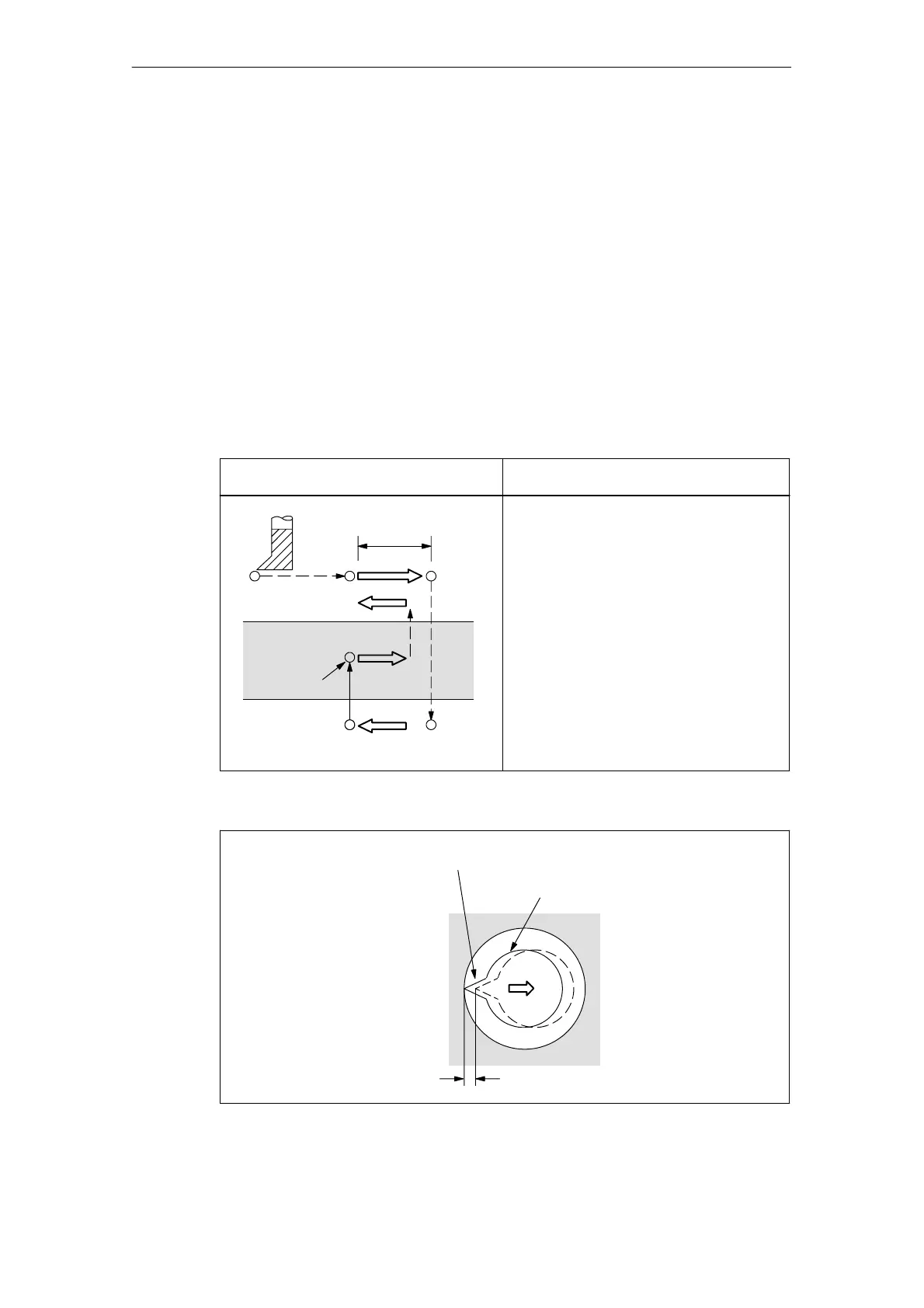

Fig. 4-14 Boring cycle, back boring cycle (G87)
Oriented spindle stop
Tool
Shift amount q
Fig. 4-15
