Siemens SINUMERIK 802D sl Programming Manual

Enhanced Level Commands
4.8 Program support functions (2)
04.07
4-145
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
Example
N10 G1 X10. Y100. F1000 G18
N20 A140 C7.5
N30 X80. Y70. A95.824, R10
X
R
1
(X70, Y50)
(X80, Y70)
Radius = 10
95.824 Grad
Fase = 7,5
X31, Y75)
140 Grad
(X10, Y100)
Y

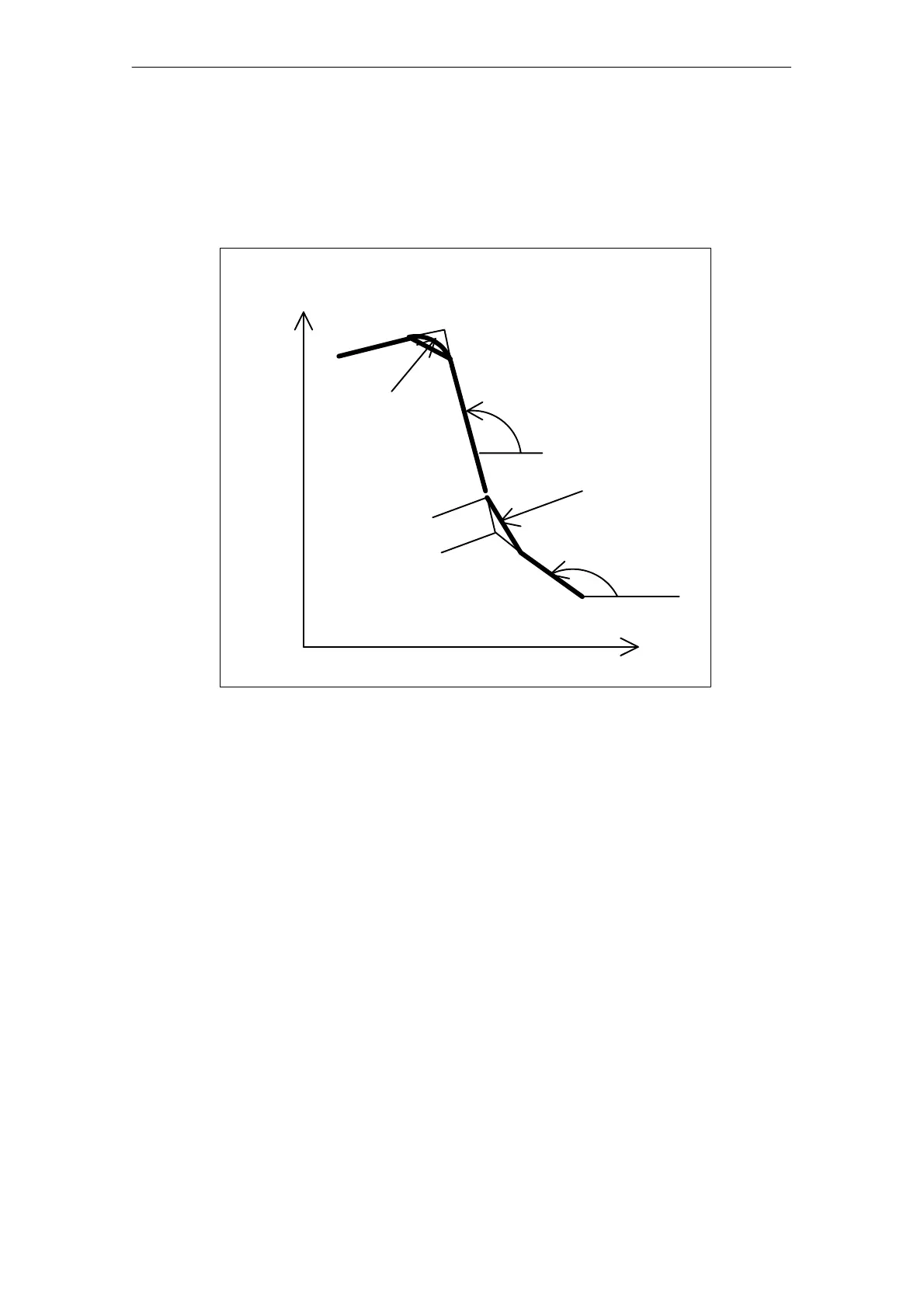

Fig. 4-25 Chamfer and corner R
Restrictions
ISO dialect mode
Address C is used in ISO Dialect0 mode both as an axis identifier and as an identi-
fier for a chamfer on the contour.
Address R can be a cycle parameter or an identifier for the radius in a contour.
In order to distinguish between these two options, a “,” must be placed in front of
the C or R address during contour definition programming.
