Enhanced Level Commands
4.11 Additional functions
04.07
4-165
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
Examples
90
Y
X
90
10
20
10
40
Startpunkt

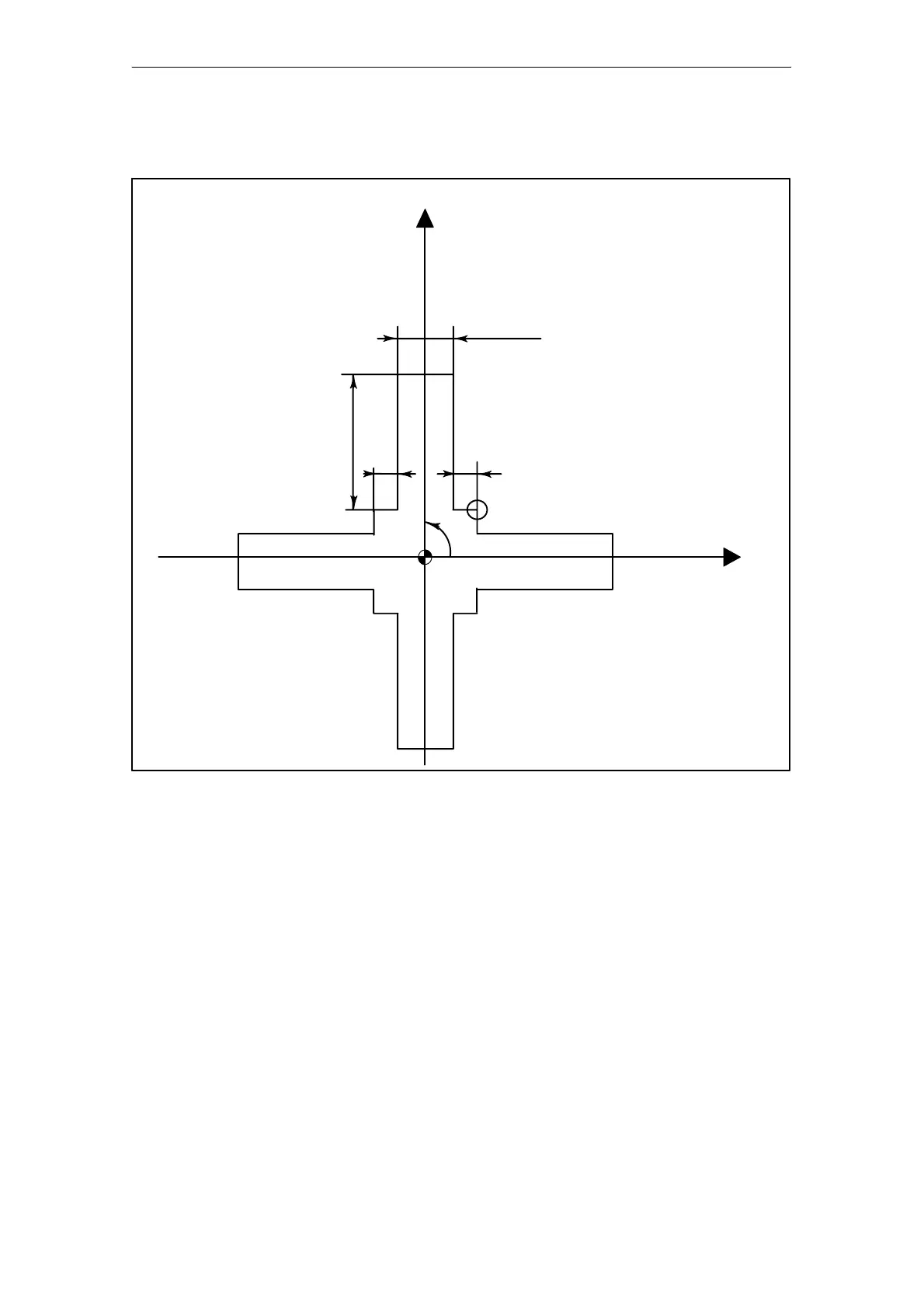

Fig. 4-31 Contour repetition using G72.1
Main program
N10 G92 X40.0 Y50.0 ;
N20 G01 G90 G17 G41 20 Y20 D01 F1000
N30 G72.1 P1234 L4 X0 Y0 R90.0
N40 G40 G01 X100 Y50 Z0
N50 G00 X40.0 Y50.0 ;
N60 M30 ;
Subprogram 1234.spf
N100 G01 X10
N200 Y50
N300 X-10
N400 Y10
