Movement Control Commands
3.1 The coordinate system
04.07
3-44
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
Format
(G90) G92 X... Y... Z... ;
Examples
Example 1:
G92X30.5Z27.0;
(The tip of tool is the start point.)
Z
X
30.5
27.0
0

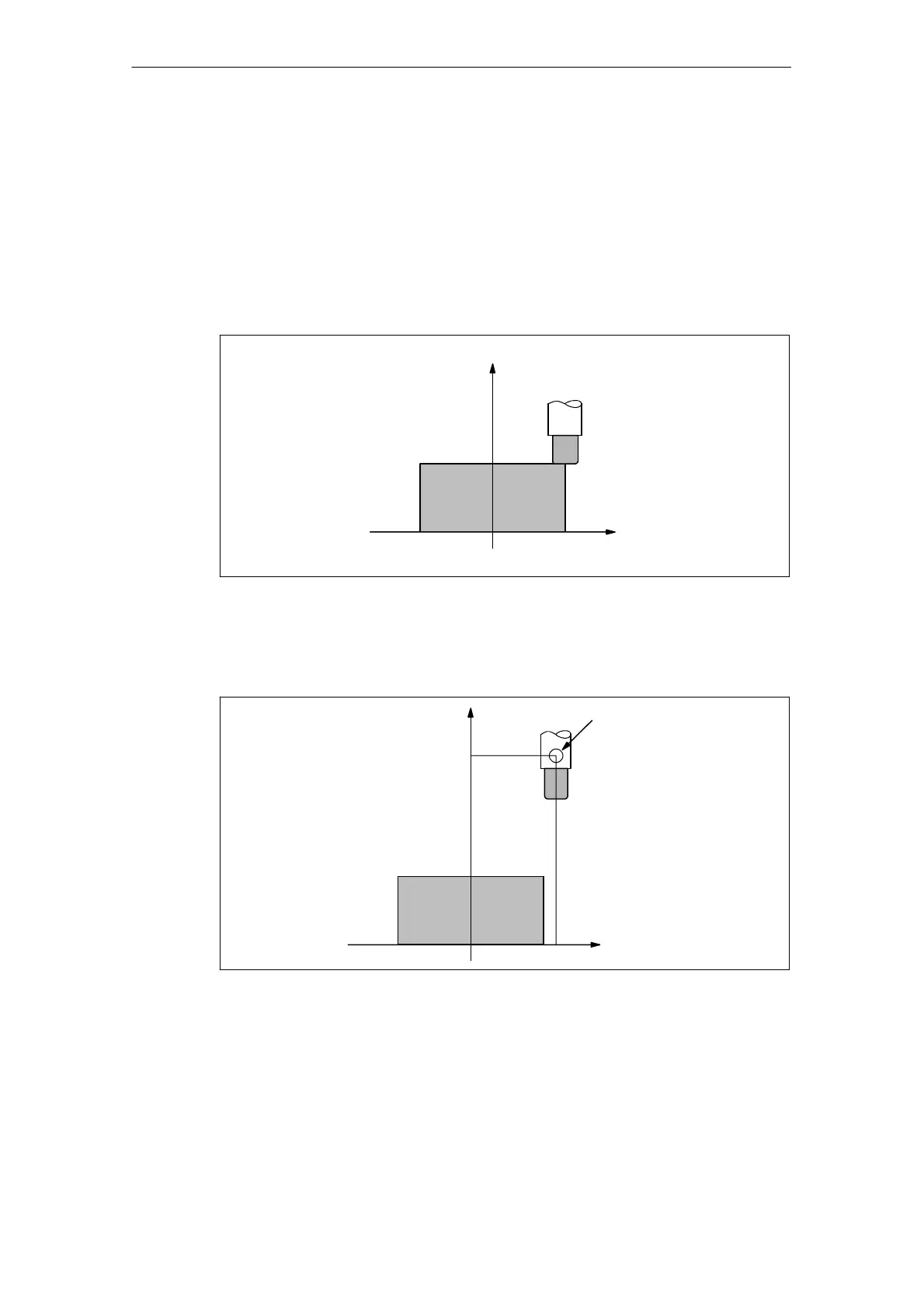

Fig. 3-3 Example 1
Example 2:
G92X500.0Z1100.0;
(The base point on the tool holder is the start point.)
Z
X
500.0
1100.0
Base point
0
Fig. 3-4 Example 2
