Movement Control Commands
3.5 Tool offset functions
04.07
3-84
© Siemens AG 2007 All rights reserved
SINUMERIK 802D sl/840D/840D sl/840Di/840Di sl/810D ISO Milling (PGM) -- 04.07 Edition
Contour path shorter than tool radius
The tool travels round the workpiece corner on a transition circle and then conti-
nues to follow the programmed contour exactly.

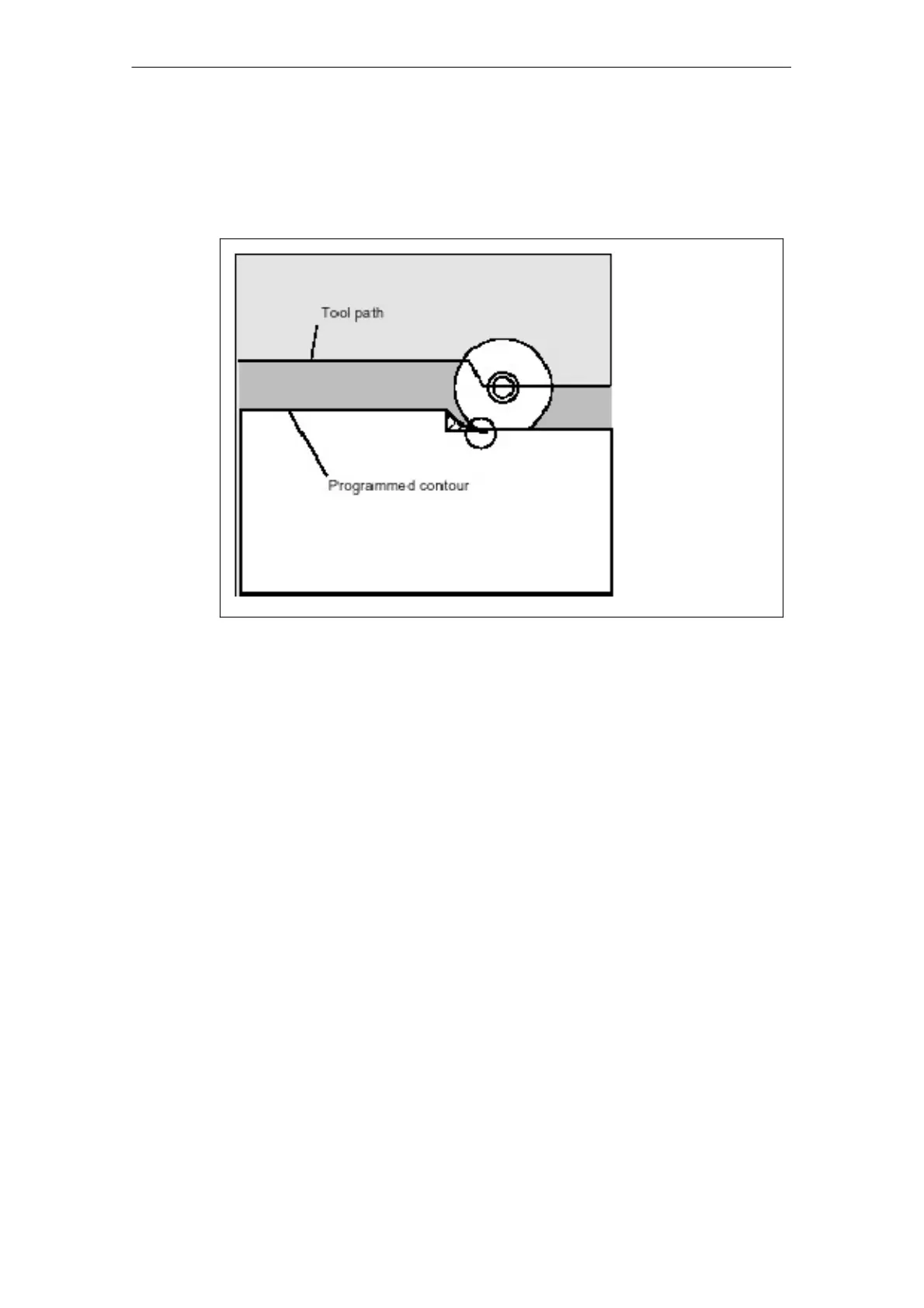

Fig. 3-25 Contour path shorter than tool radius
