Siemens SINUMERIK 828D Programming Manual

Path traversing behavior
8.6 Repositioning to a contour (REPOSA, REPOSL, REPOSQ, REPOSQA, REPOSH, REPOSHA, DISR,
DISPR, RMI, RMB, RME, RMN)
Job planning
Programming Manual, 07/2010, 6FC5398-2BP40-0BA0
477

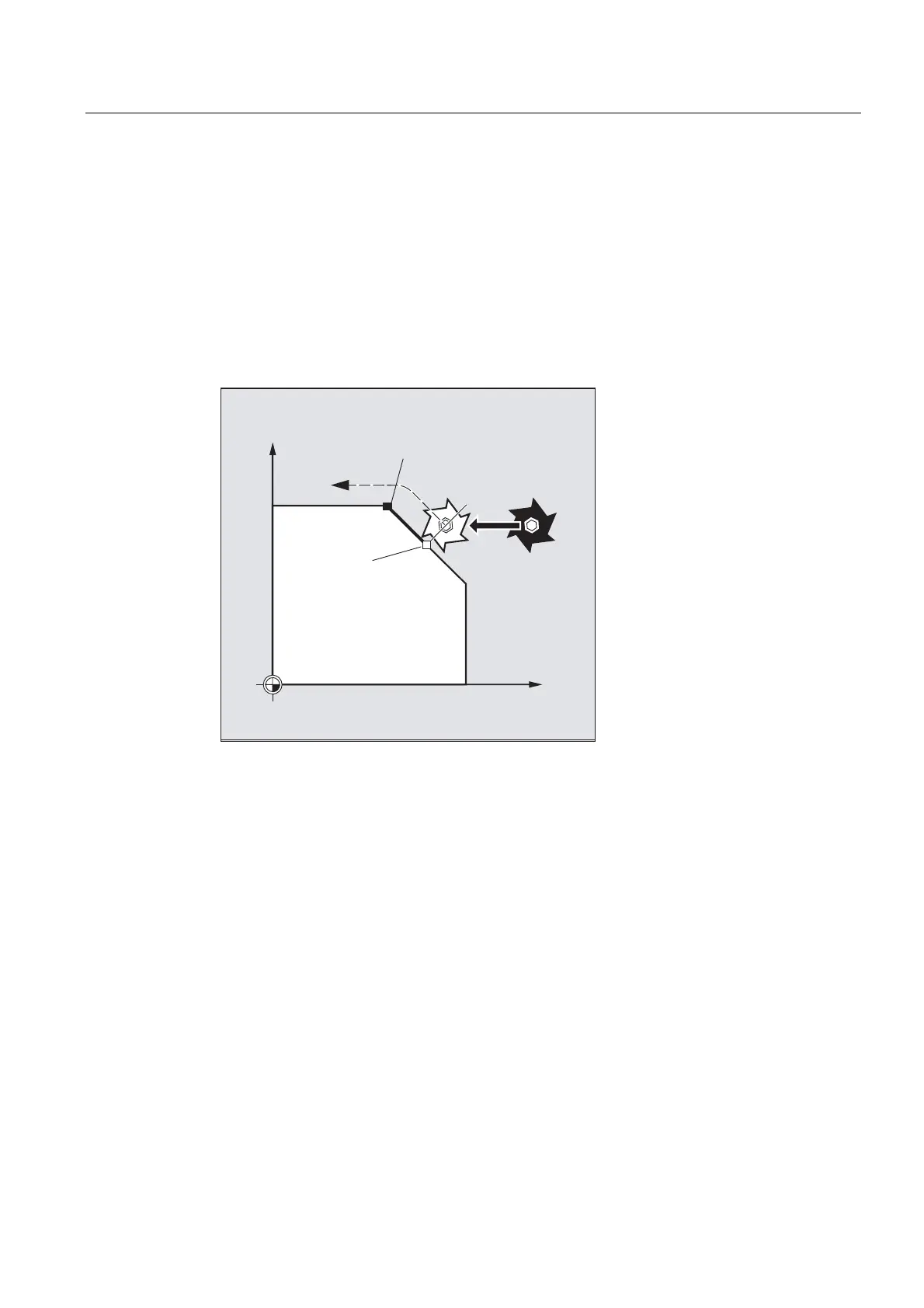

Example: Approach along a straight line, REPOSA, REPOSL
The tool approaches the repositioning point along a straight line.
All axes are automatically traversed with command REPOSA. With REPOSL you can specify
which axes are to be moved.
Example:
REPOSL RMI DISPR=6 F400
or
REPOSA RMI DISPR=6 F400
<
;
',635
5(326/
%ORFNVWDUWSRLQW
,QWHUUXSWLRQSRLQW

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
