Meaning
CONTDCON: Predefined procedure to activate the contour preparation to
generate a coded contour table
<contour table>: Name of the contour table
<machining direction>: Parameter for machining direction
Type: INT
Value: 0 Contour preparation according to the se‐
quence of contour blocks (default value)
1 Not permissible
Note
The G commands permitted for CONTDCON in the program section to be included in the table
are more comprehensive than for CONTPRON. Further, feedrates and feedrate type are saved
for each contour section.

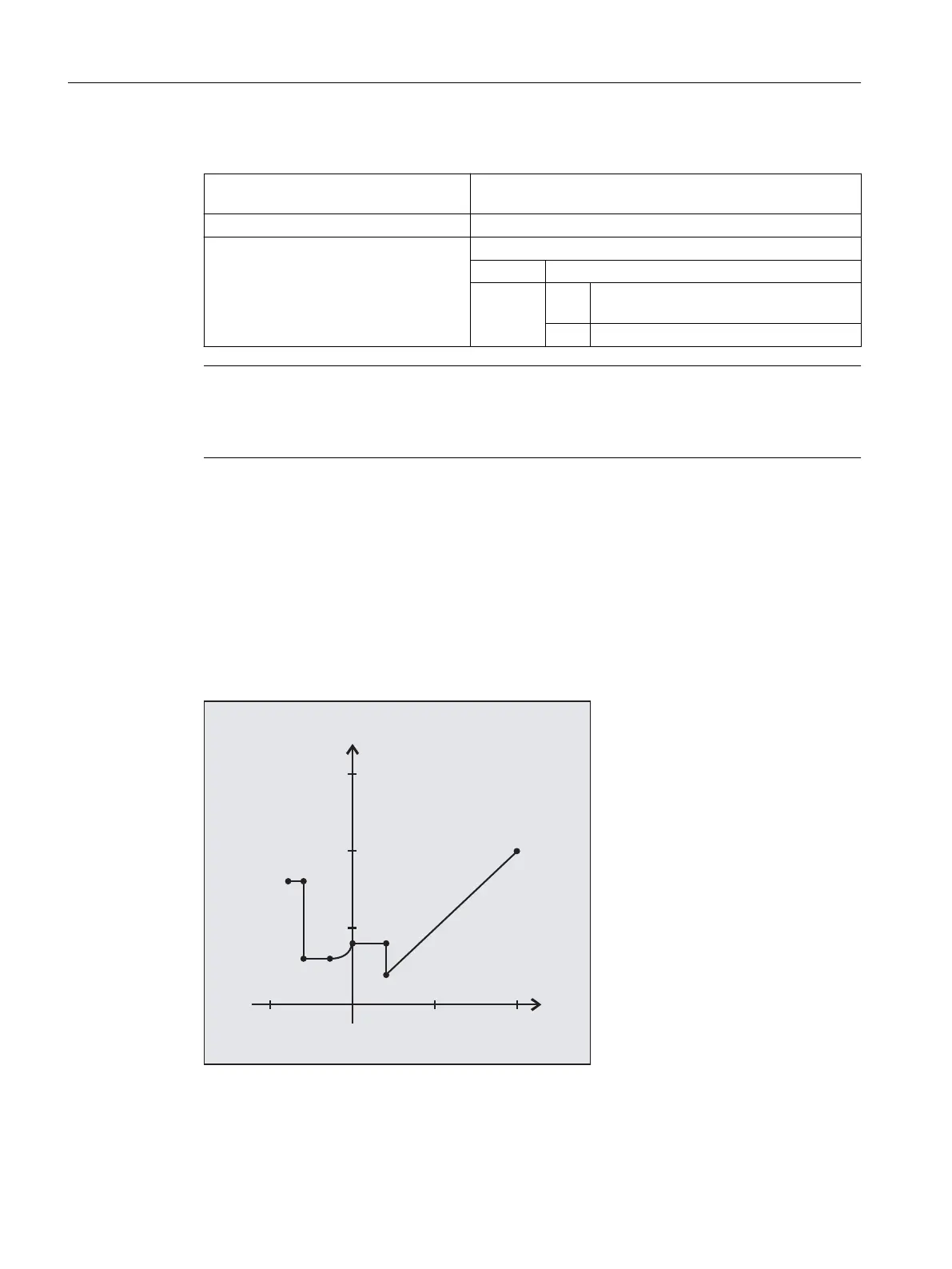

Example
Generating a contour table with:
Name "KTAB"
Contour elements (circles, straight lines)
Operating mode: Turning
Machining direction: Forward
(-40, 80)
X
50
100
150
(-15, 30)
(0, 45)
(20, 45)
(20, 20)
(-30, 30)
(-30, 80)
Z
100
50
-50
(100, 100)
Work preparation
3.24 User stock removal programs
NC programming
1016 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
