The polar angle is the angle between the polar radius and the horizontal axis of the working
plane. Negative polar angles are in the clockwise direction, positive polar angles in the
counterclockwise direction.

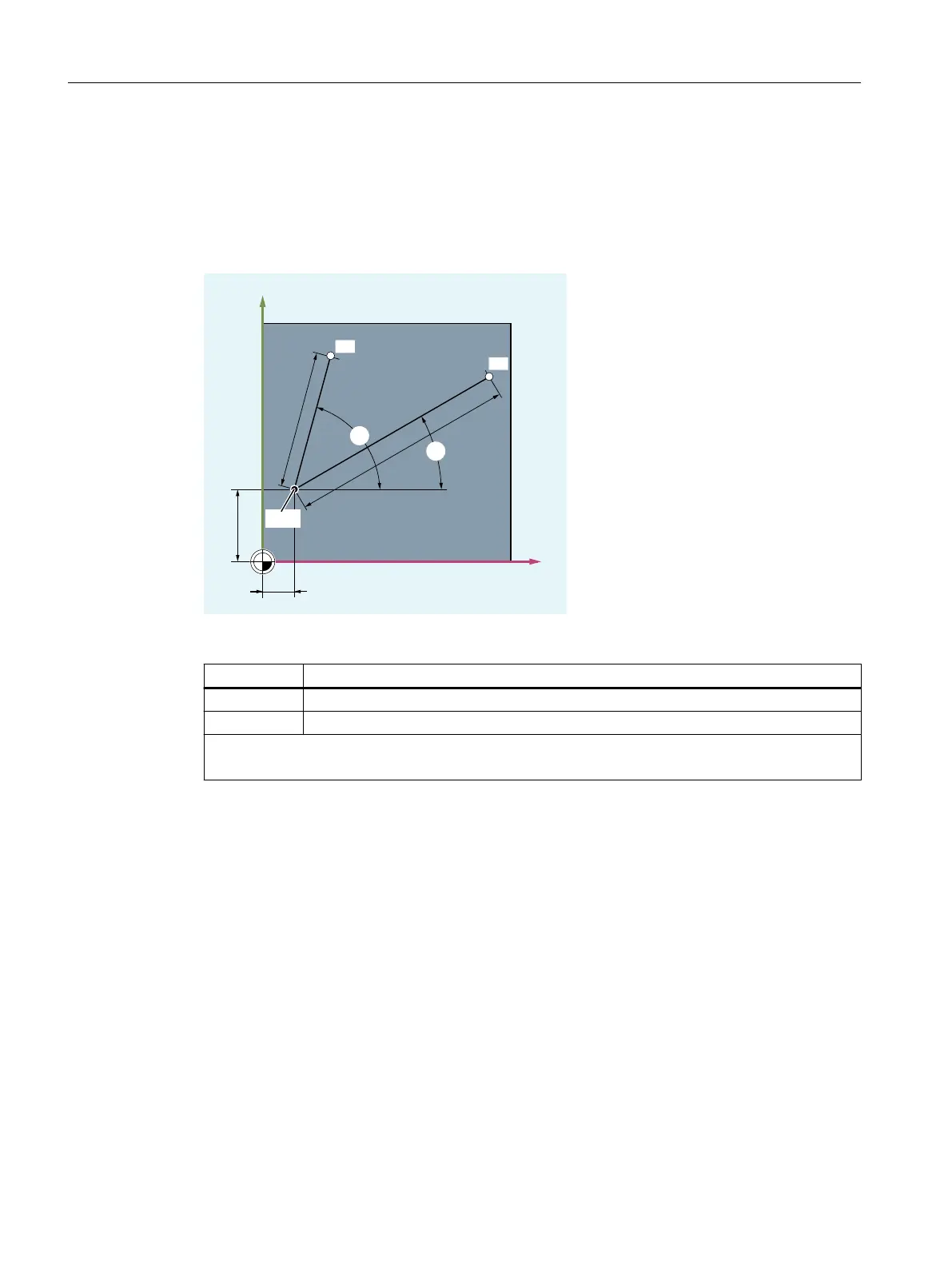

Example
3ROH



r
r
<
;
3
3

Points P1 and P2 can then be described – with reference to the pole – as follows:
Position Polar coordinates
P1 RP=100 AP=30
P2 RP=60 AP=75
RP: Polar radius
AP: Polar angle
2.1.1.4 Absolute dimensions
Position specifications in absolute dimensions
With absolute dimensions, all the position specifications refer to the currently valid zero point.
Applied to tool movement this means:
the position, to which the tool is to travel.
Fundamentals
2.1 Fundamental Geometrical Principles
NC programming
30 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
