Example
3URWHFWLRQDUHD
:RUNLQJDUHD
;
%
;
;
=
%
:0

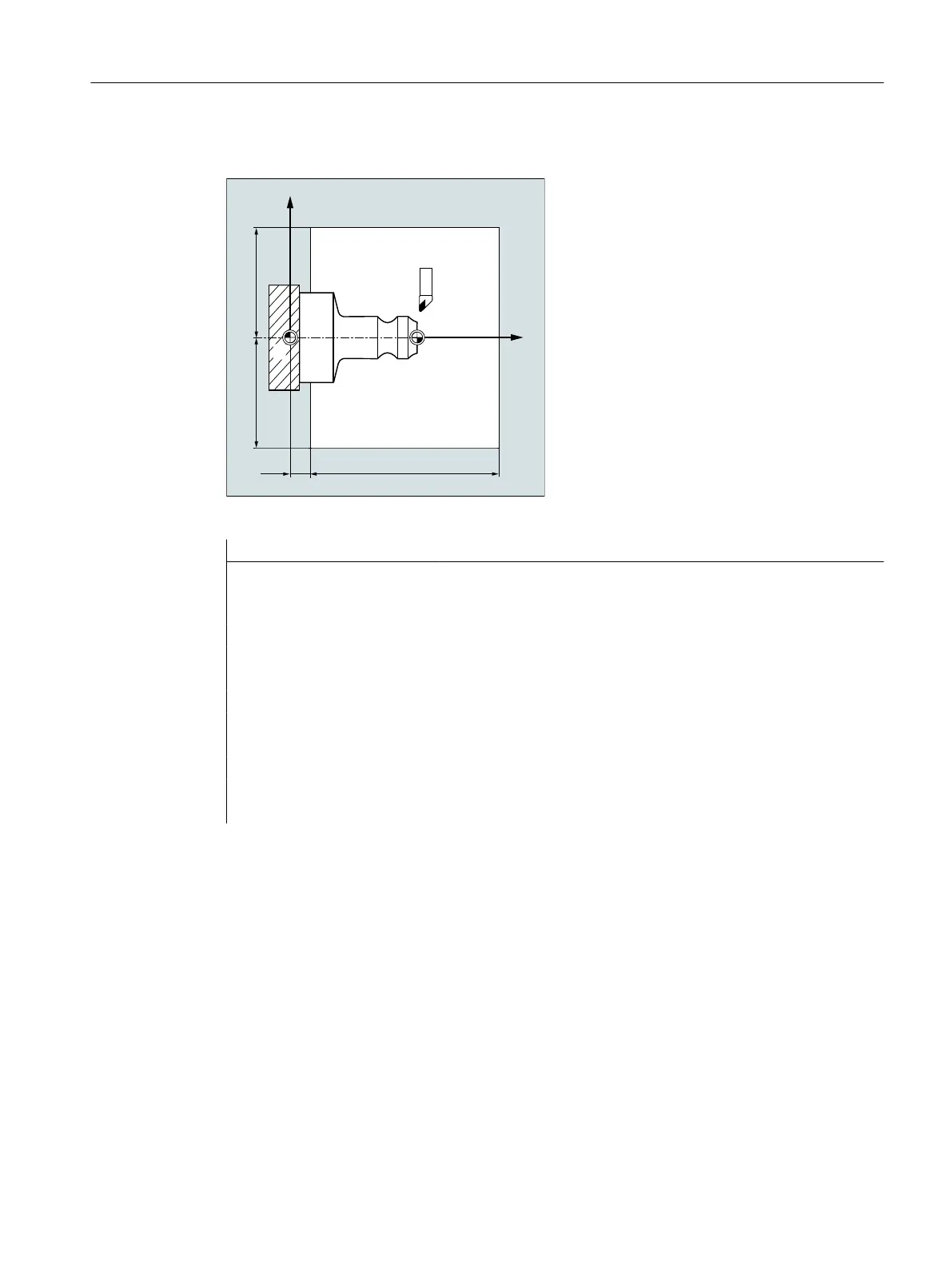

Using the working area
limitation G25/26, the working area of a
lathe is limited so that the surrounding
devices and equipment - such as revolv‐
er, measuring station, etc. are protected
against damage.
Default setting: WALIMON
Program code Comment
N10 G0 G90 F0.5 T1
N20 G25 X-80 Z30 ; Define the lower limit for the individual coordinate
axes
N30 G26 X80 Z330 ;Define the upper limit
N40 L22 ;Cutting program
N50 G0 G90 Z102 T2 ;To tool change location
N60 X0
N70 WALIMOF ;Deactivate working area limitation
N80 G1 Z-2 F0.5 ;Drill
N90 G0 Z200 ;Back
N100 WALIMON ; Switch on working area limitation
N110 X70 M30 ; End of program
Further information
Reference point at the tool
When tool length offset is active, the tip of the tool is monitored as reference point, otherwise
it is the toolholder reference point.
Taking into consideration the tool radius must be activated separately. This is done using
channel-specific machine data:
MD21020 $MC_WORKAREA_WITH_TOOL_RADIUS
Fundamentals
2.14 Supplementary commands
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 353
