F3=
F3=
F3=


;
=
<
Q3=
Q3=







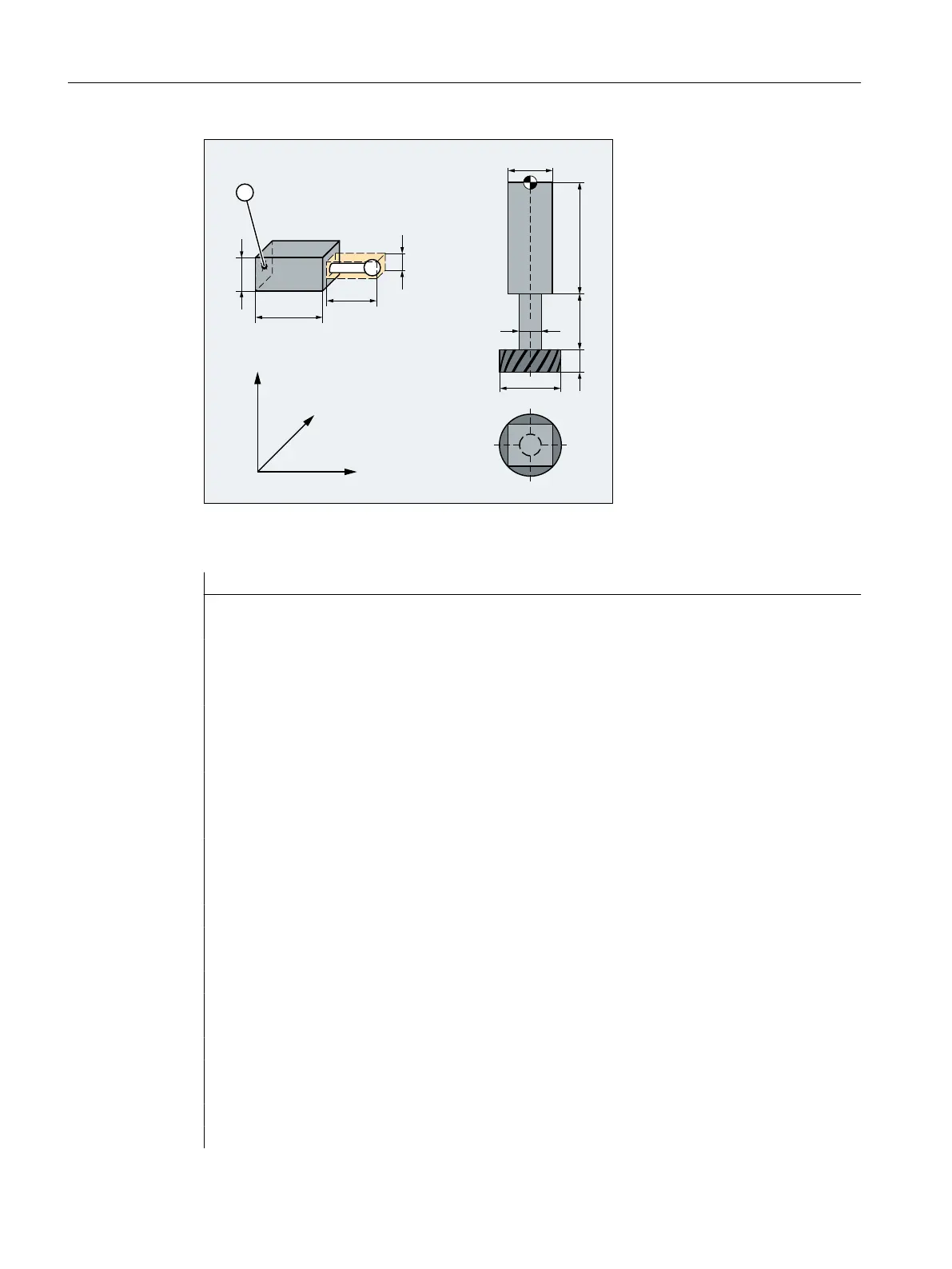

Name for the protection zone of the probe
F Toolholder reference point
Program code Comment
DEF INT PROTZONE ; Definition of a Help variable
G17 ; machining plane XY
; defining protection zones:
NPROTDEF(1,FALSE,3,10,–10) ; protection zone n–PZ1
G01 X0 Y–10
X40
Y10
X0
Y-10
EXECUTE(PROTZONE)
NPROTDEF(2,FALSE,3,5,–5) ; protection zone n–PZ2
G01 X40 Y–5
X70
Y5
X40
Y-5
EXECUTE(PROTZONE)
CPROTDEF(1,TRUE,3,0,–100) ; protection zone c–PZ1
G01 X–20 Y–20
X20
Y20
X-20
Y-20
EXECUTE(PROTZONE)
Work preparation
3.6 Protection zones
NC programming
580 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
