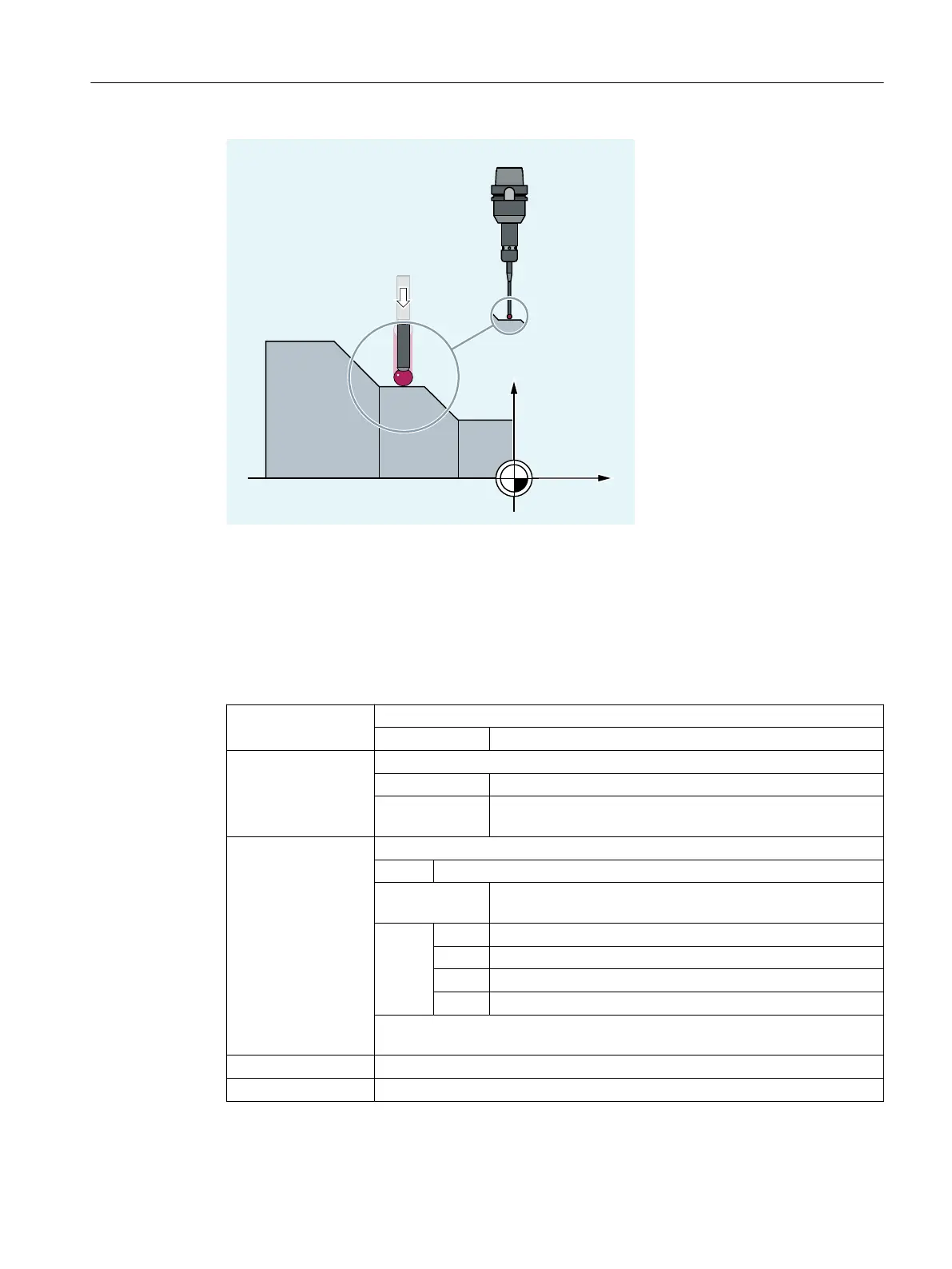

Syntax
MEAS=<TE> G... X... Y... Z...
MEAW=<TE> G... X... Y... Z...
Meaning
MEAS: Measurement with delete distance-to-go
Effectiveness: Non-modal
MEAW: Measurement without delete distance-to-go
Effectiveness: Non-modal
Application: For measuring tasks in which the programmed position is to
be approached in every case.
<TE>: Trigger event to initiate measurement
Type: INT
Range of val‐
ues:
-2, -1, 1, 2
Value: (+)1 Positive edge of probe 1 (on measuring input 1)
-1 Negative edge of probe 1 (on measuring input 1)
(+)2 Positive edge of probe 2 (on measuring input 2)
-2 Negative edge of probe 2 (on measuring input 2)
Note:
There is a maximum of 2 probes (dependent on configuration level).
G...: Type of interpolation, e.g. G0, G1, G2 or G3
X... Y... Z...: End points in Cartesian coordinates
Work preparation
3.7 Special motion commands
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 613
