Tool parameters

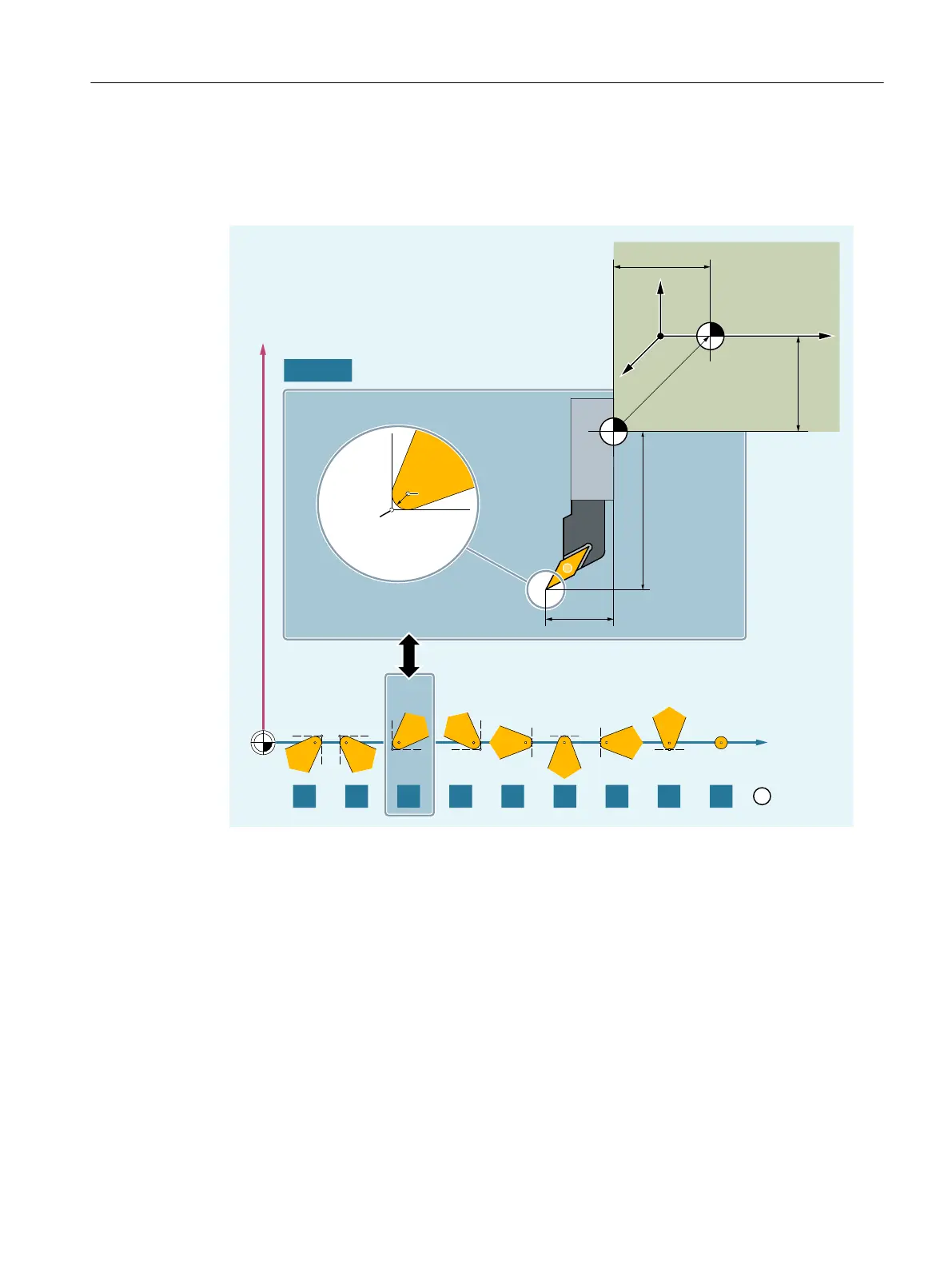

The following diagram provides an overview of which turning tool parameters are entered in the
compensation memory:
5
3
6
/
/
7
*;=
/
7
/
/
;
=
① Cutting edge position (1 ... 9) for machining behind the turning center
P Tool tip
S Cutting edge center point
R Cutting edge radius
T Tool carrier reference point
T' Tool holder reference point
L1 Geometry - length 1
L2 Geometry - length 2
L1' Base dimension - length 1
L2' Base dimension - length 2
L3' Base dimension - length 3
Fundamentals
2.5 Tool offsets
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 77
