Programming

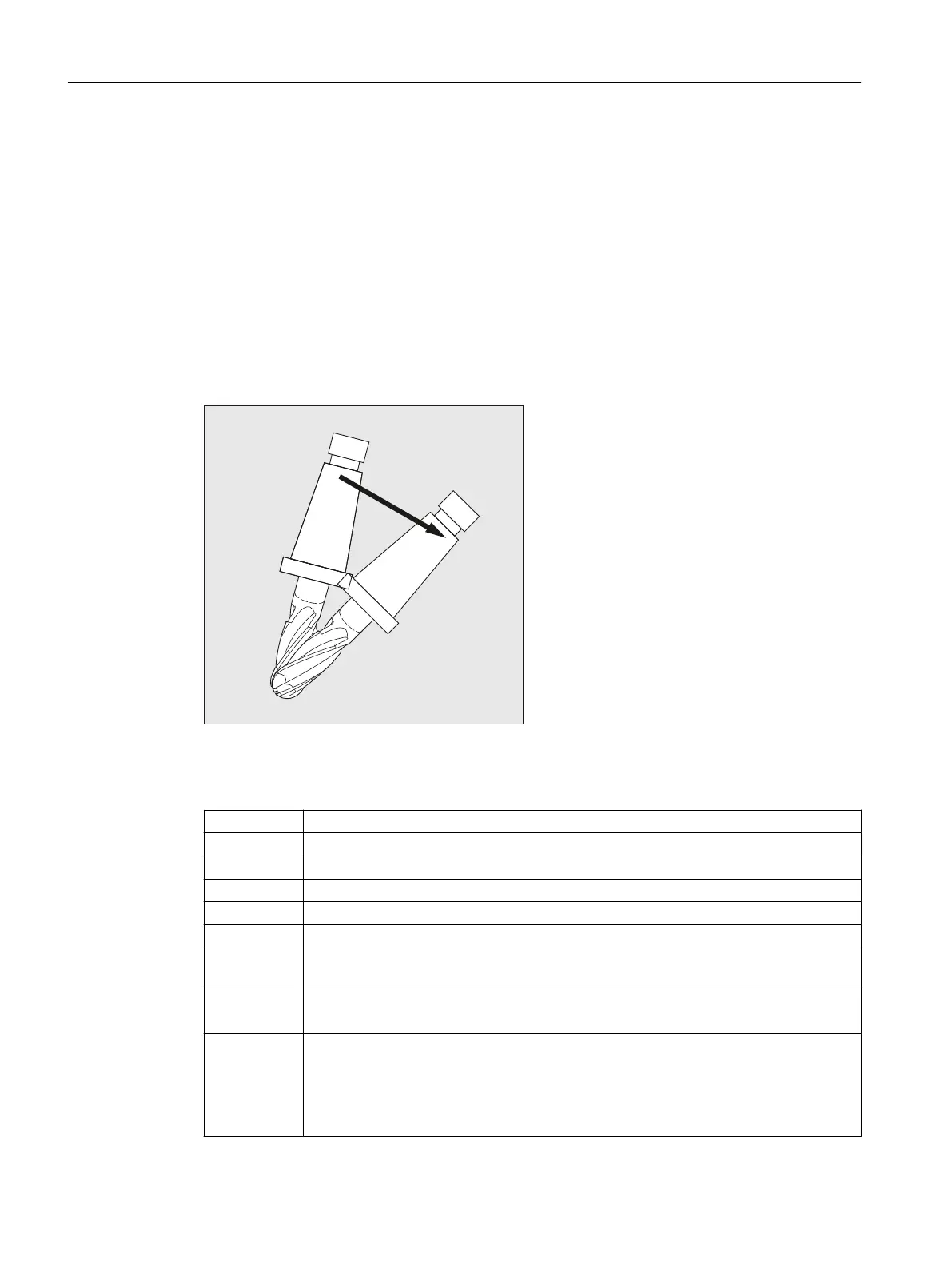

Programming a orientation change:
A change in tool orientation can be programmed by:
● Direct programming of rotary axes A, B, C (rotary axis interpolation)
● Euler or RPY angle
● Direction vector (vector interpolation by specifying A3 or B3 or C3)
● LEAD/TILT (face milling)
The reference coordinate system is either the machine coordinate system (ORIMKS) or the
current workpiece coordinate system (ORIWKS).
Programming tool orientation:
ORIC: Orientation and path movement in parallel
ORID: Orientation and path movement consecutively
OSOF: No orientation smoothing
OSC: Orientation constantly
OSS: Orientation smoothing only at beginning of block
OSSE: Orientation smoothing at beginning and end of block
ORIS: Velocity of the orientation change with orientation smoothing activated in degrees per
mm (valid for OSS and OSSE)
OSD: Smoothing of orientation by specifying smoothing distance with setting data:
SD42674 $SC_ORI_SMOOTH_DIST
OST: Smoothing of orientation by specifying angular tolerance in degrees for vector interpo‐
lation with setting data:
SD42676 $SC_ORI_SMOOTH_TOL
With rotary axis interpolation, the specified tolerance is assumed to be the maximum
variance of the orientation axes.
Work preparation
3.13 Tool offsets
NC programming
770 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
