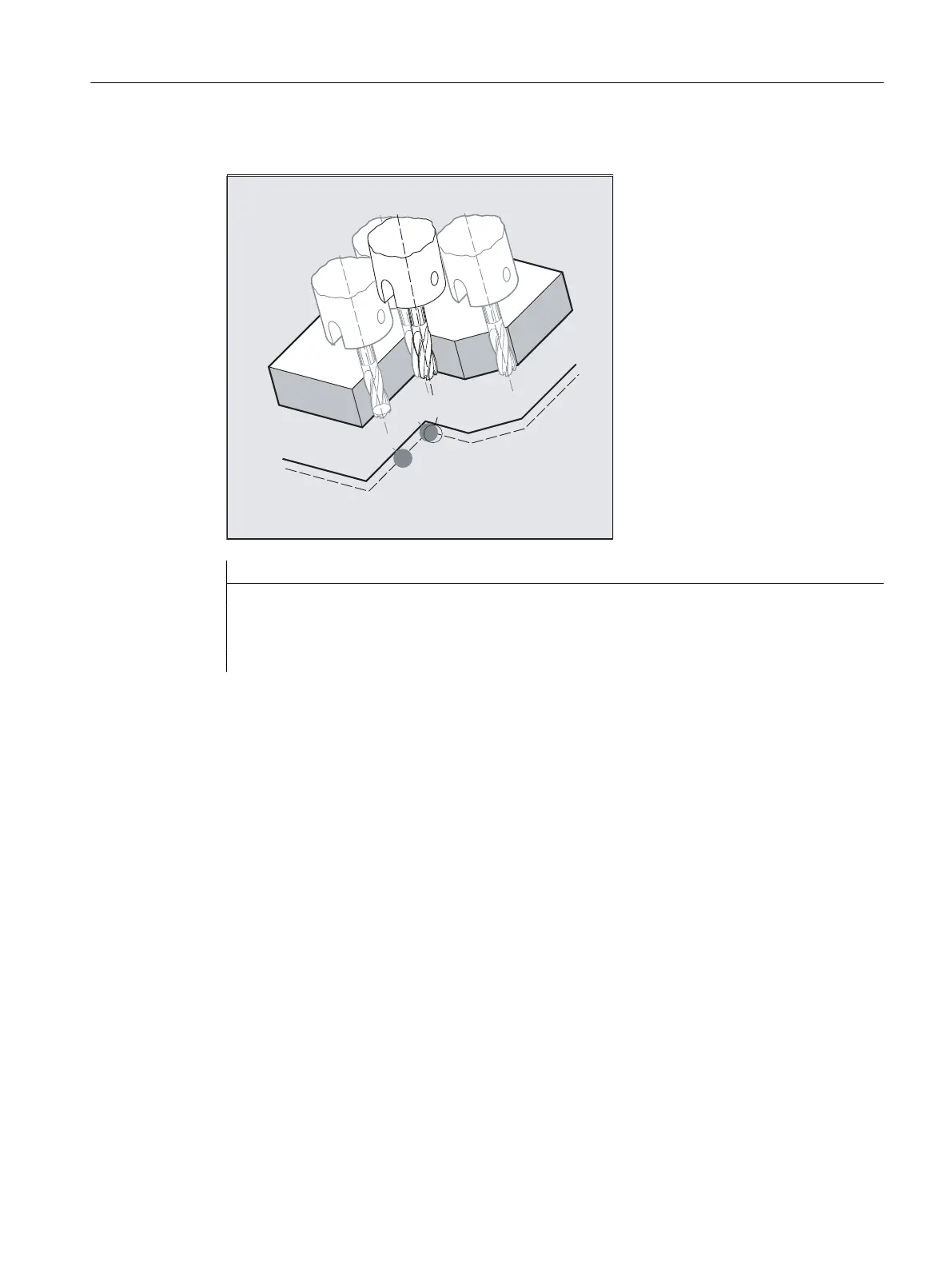

Example 3: Change in orientation at an inside corner
Program code
ORIC
N10 X …Y… Z… G1 F500
N12 X …Y… Z… A2=… B2=… C2=…
N15 X …Y… Z… A2=… B2=… C2=…
Further information
Behavior at outer corners
A circle block with the radius of the cutter is always inserted at an outside corner.
The ORIC and ORID program commands are used to determine whether changes in orientation
programmed between block N1 and N2 are executed before the inserted circle block is
processed or at the same time.
Work preparation
3.13 Tool offsets
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 773
