Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
01/2017
137
●
$AC_TOTAL_PARTS
Total number of workpieces produced (total actual)
The counter specifies the total number of all workpieces produced since the start time.
The counter is set to zero upon every booting of the control system automatically.
●
$AC_ACTUAL_PARTS
Number of actual workpieces (actual)
This counter registers the number of all workpieces produced since the starting time. When the workpiece setpoint is
reached ( $AC_REQUIRED_PARTS, value greater than zero), the counter is automatically zeroed.
●
$AC_SPECIAL_PARTS
Number of workpieces specified by the user
This counter allows users to make a workpiece counting in accordance with their own definition. Alarm output can be
defined for the case of identity with $AC_REQUIRED_PARTS (workpiece target). Users must reset the counter
themselves.
Programming example
N10 IF $AC_TOTAL_PARTS==R15 GOTOF SIST
; Count reached?
G0 X50 Z50
N80 SIST:G0 X60 Z60
N90 MSG("Workpiece setpoint reached")
N100 M0
M30
Display

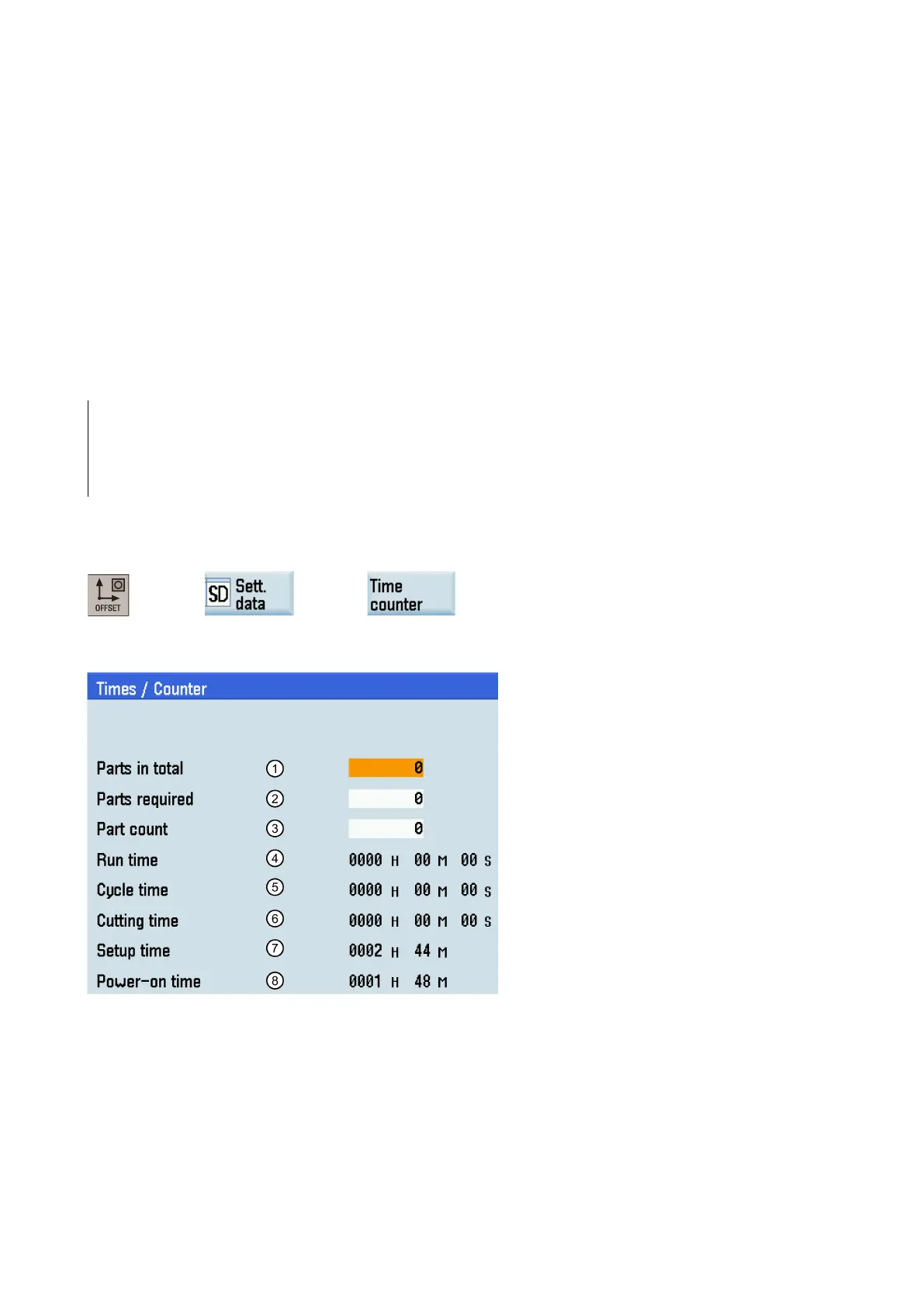

The content of the active system variables is visible in the window opened through the following key operations:
→
→
Window display:
①
= $AC_TOTAL_PARTS
⑤
= $AC_CYCLE_TI
ME
②
= $AC_REQUIRED_PARTS
⑥
= $AC_CUTTING_TIME
③
=$AC_ACTUAL_PARTS
$AC_SPECIAL_PARTS is not available for display.
⑦
= $AN_SETUP_TIME
④
= $AC_OPERATING_TIME
⑧
= $AN_POWERON_TIME
