Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
156 01/2017
5.

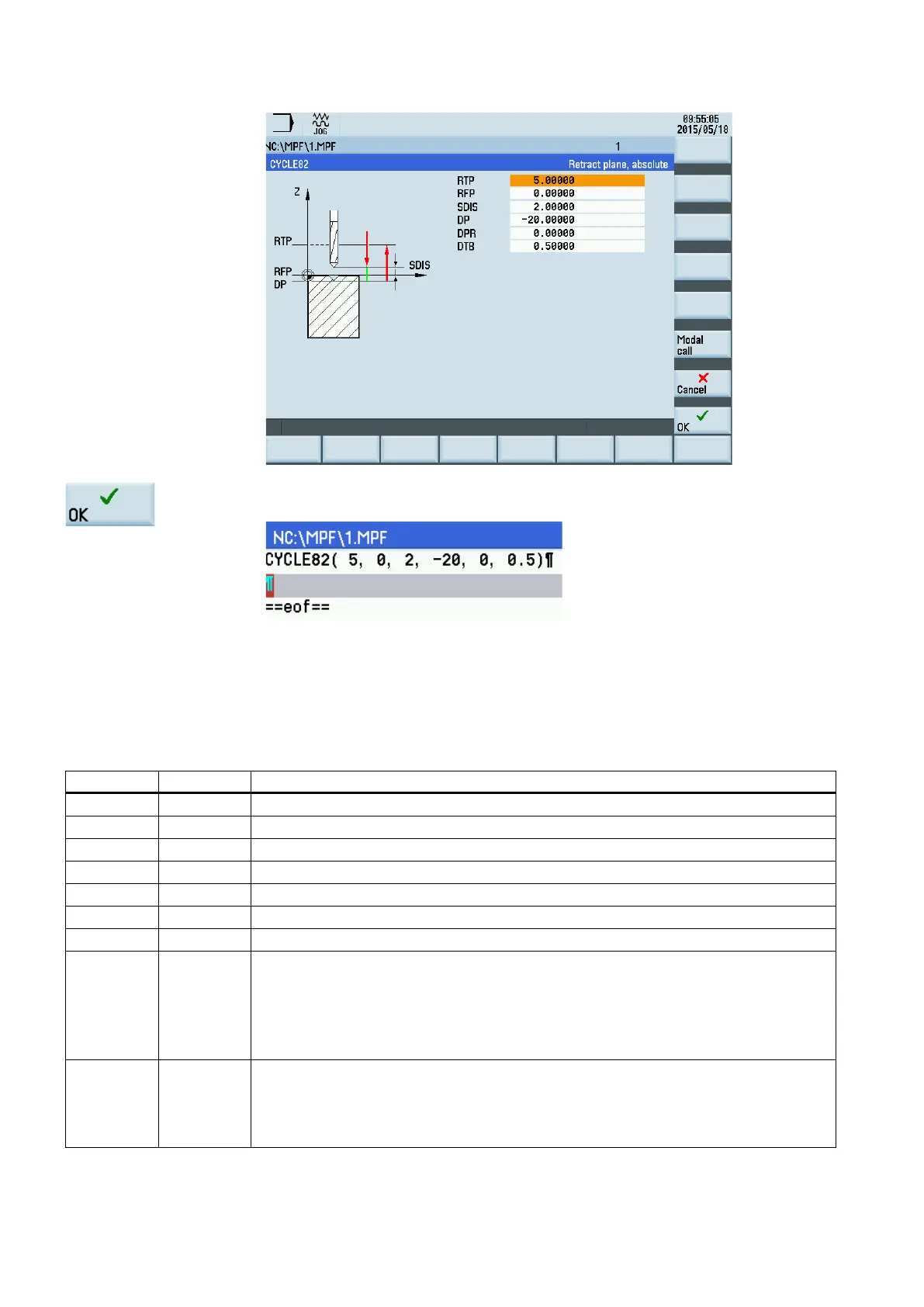

Confirm y
our settings with this softkey. The cycle is then automatically transferred to the
program editor as a separate block.
12.4.5
Deep-hole drilling - CYCLE83
Programming
CYCLE83 (RTP, RFP, SDIS, DP, DPR, FDEP, FDPR, DAM, DTB, DTS, FRF, VARI, AXN, MDEP, VRT, DTD, DIS1)
Parameters
Parameter
Data type
Description
RTP
REAL
Retraction plane (absolute)
RFP REAL Reference plane (absolute)
SDIS
REAL
Safety clearance (enter without sign)
DP REAL Final drilling depth (absolute)
DPR
REAL
Final drilling depth relative to the reference plane (enter without sign)
FDEP
REAL
First drilling depth (absolute)
FDPR
REAL
First drilling depth relative to the reference plane (enter without sign)
DAM REAL Amount of degression (enter without sign)
Values:
>0: degression as value
<0: degression factor
=0: no degression
DTB REAL Dwell time at drilling depth (chip breakage)
Values:
>0: in seconds
<0: in revolutions
