155
● Dwell time at final drilling depth
● Retraction to the retraction plane with G0

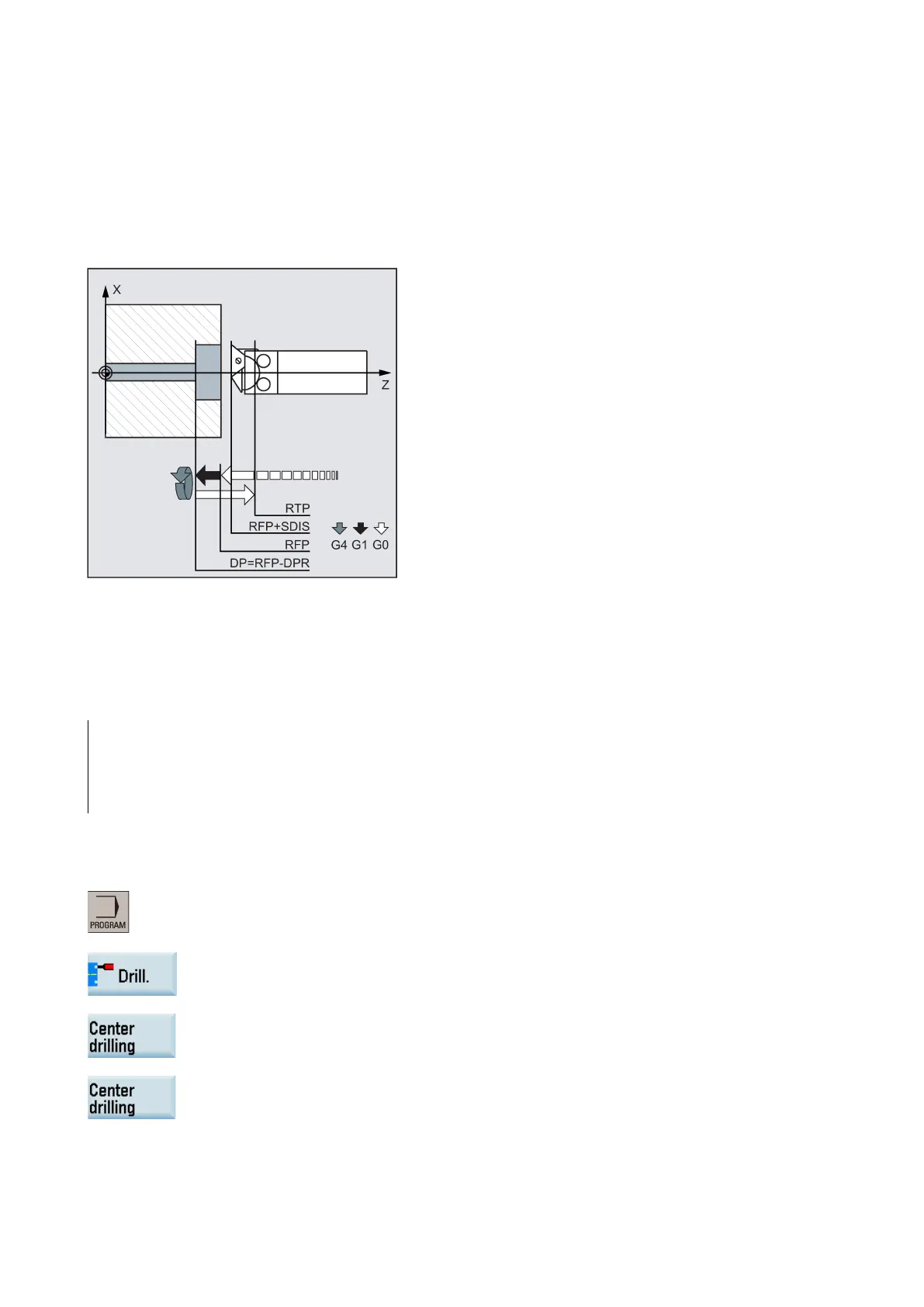

Explanation of the parameters
For an explanation of the parameters RTP, RFP, SDIS, DP, and DPR, see Section "Drilling, centering - CYCLE81
(Page 152)".
See the following parameters for CYCLE82:
DTB (dwell time)
The dwell time to the final drilling depth (chip breakage) is programmed under DTB in seconds.
Programming example 1: Boring_counterboring
The program machines a single hole of a depth of 20 mm at position X0 with cycle CYCLE82.
The dwell time programmed is 3 s, the safety clearance in the drilling axis Z is 2.4 mm.
N10 G0 G90 G54 F2 S300 M3
; Specification of technology values
N20 D1 T6 Z50
; Approach retraction plane
N30 G17 X0
; Approach drilling position
N40 CYCLE82 (3, 1.1, 2.4, -20, , 3)
; Cycle call with absolute final drilling depth and safety
clearance
N50 M2
; End of program
Programming example 2
Proceed through the following steps:
1.
Select the program edit
ing operating area.
2.
Open the vertical softkey
bar for available drilling cycles.
3.
Press thi
s softkey from the vertical softkey bar.
4.
Pres
s this softkey to open the window for CYCLE82. Parameterize the cycle as desired.
