Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
256 01/2017

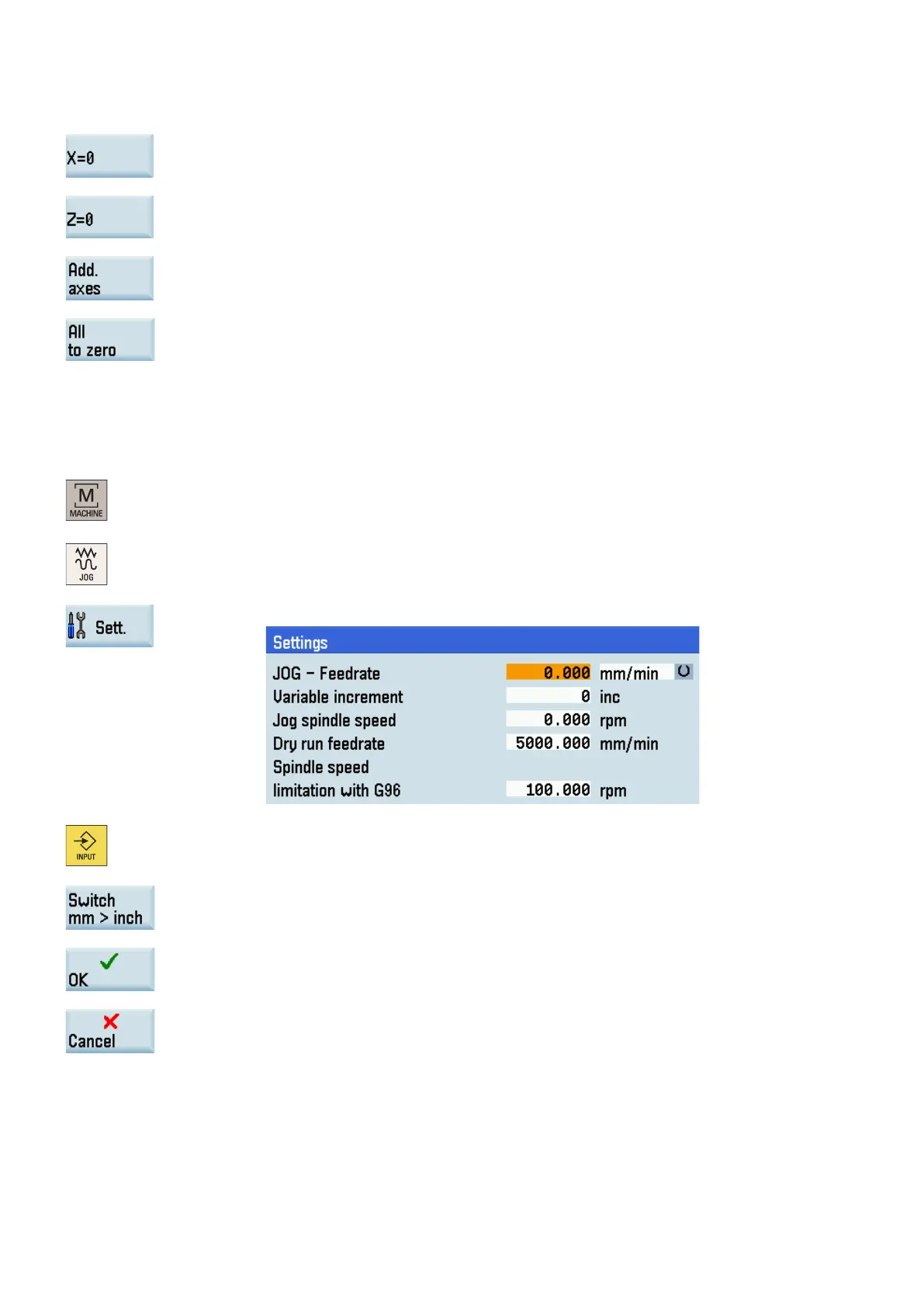

You can use the corresponding vertical softkeys to set the reference point to zero.
Sets the X axis to zero
Sets the Z axis to zero
Sets the spindle to zero
Sets all axes to zero
A.2.2.4
Setting the JOG data
Operating sequence
1.
Select the machining operating area.
2.
Switch to "JOG" mode.
3.
Press this horizontal softkey to open the following window:
4.
Enter values in the input fields and confirm your entries.
5.
If necessary, press this vertical softkey to switch between the metric and inch dimension
systems.
Press this softkey to confirm your changes.
Press this softkey to exit.
